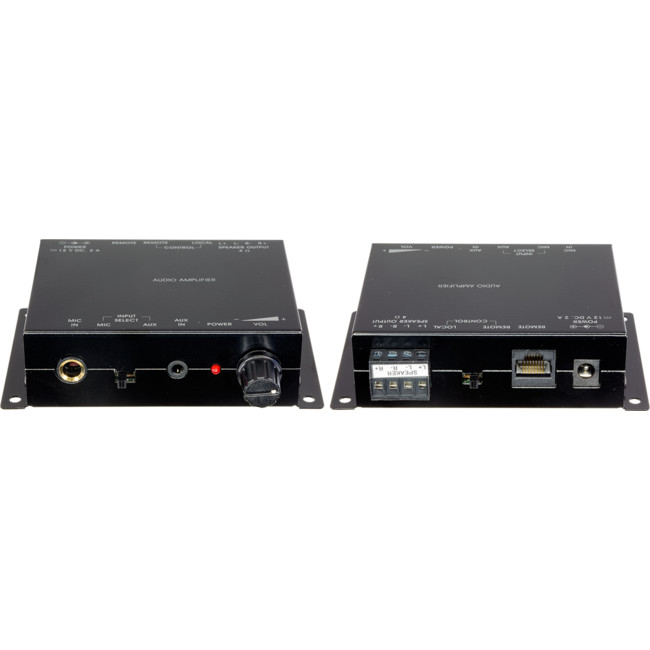

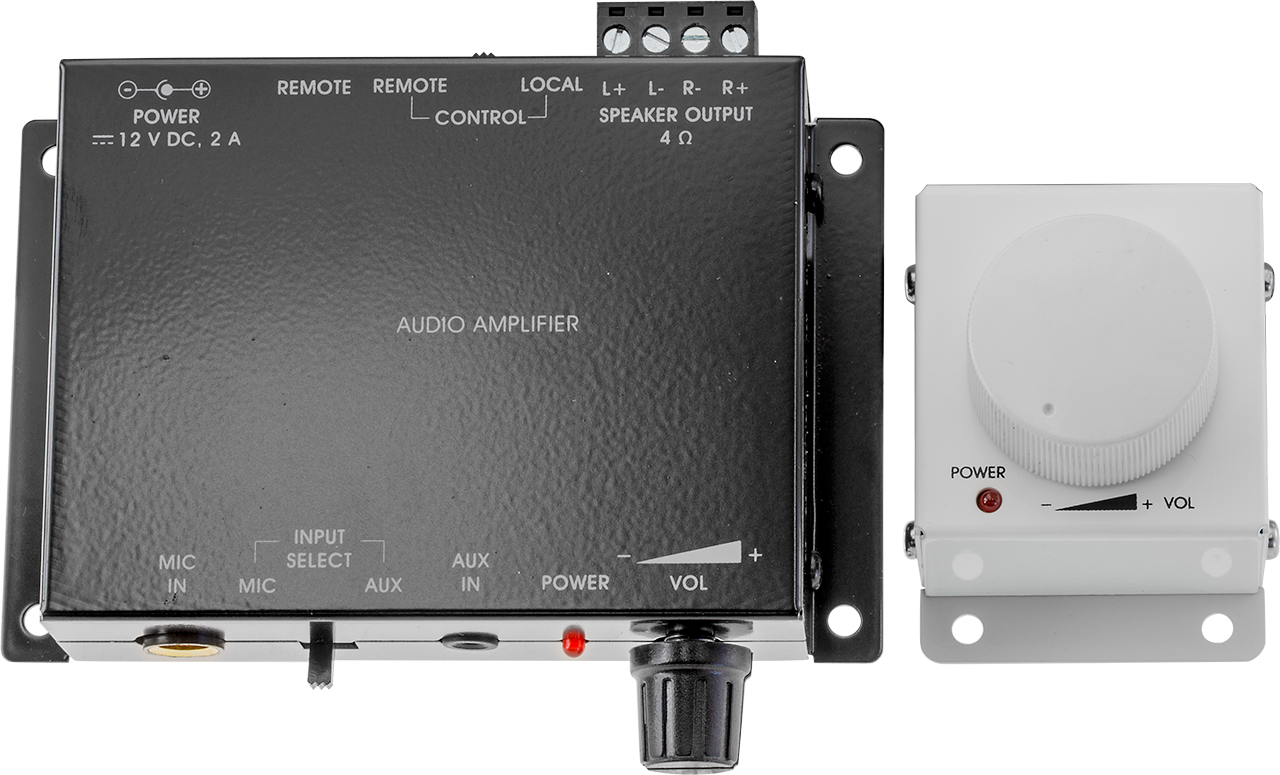

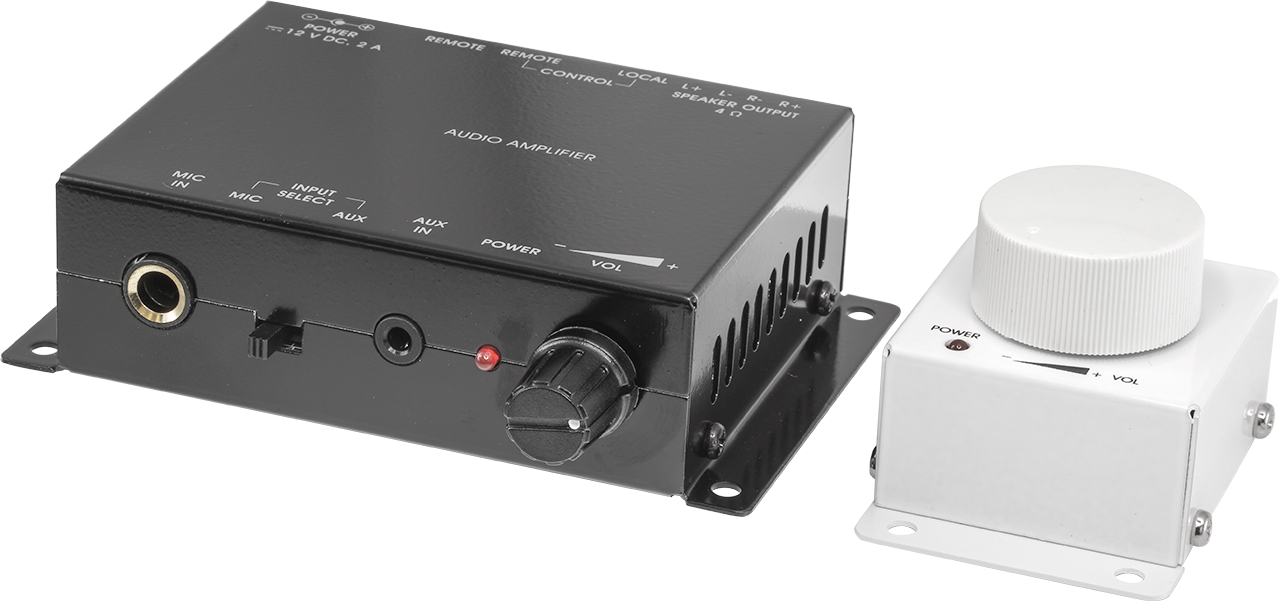

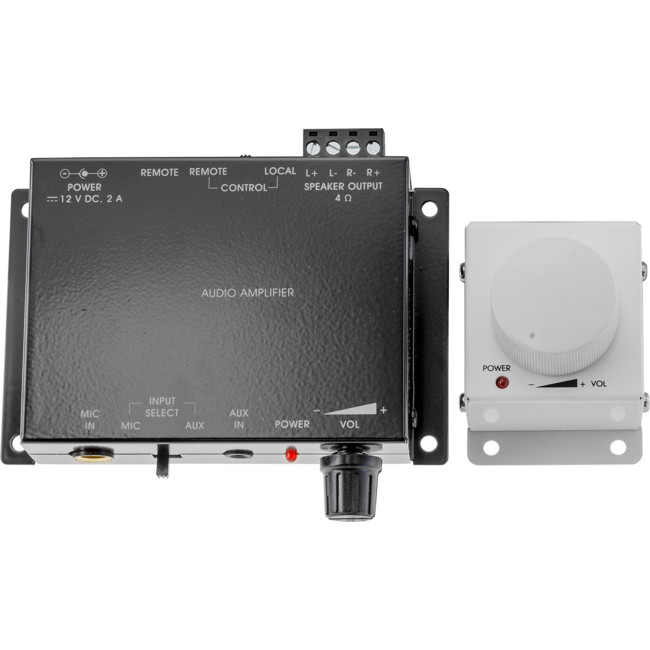

This unit is an excellent way to add an additional zone to an existing system. Compact 15w RMS stereo amplifier withselectable 3.5mm stereo or microphone inputs. Remote wired volume control.
Features
- 15 Watts per channel

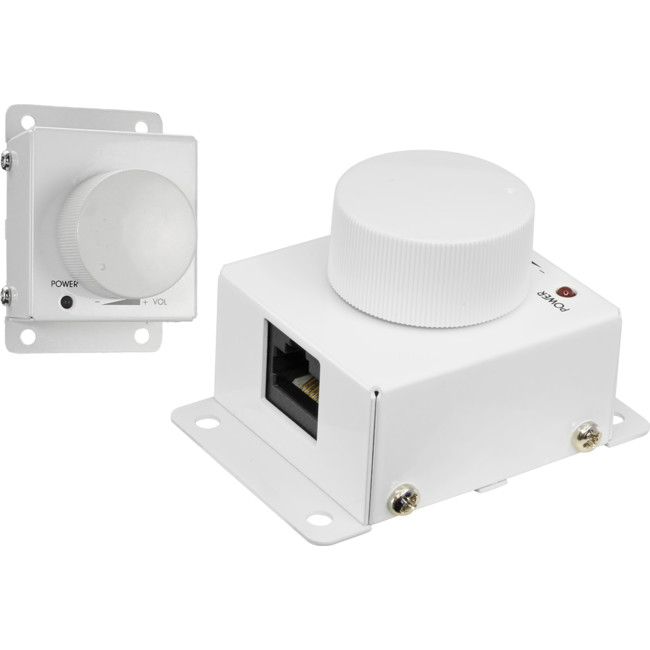

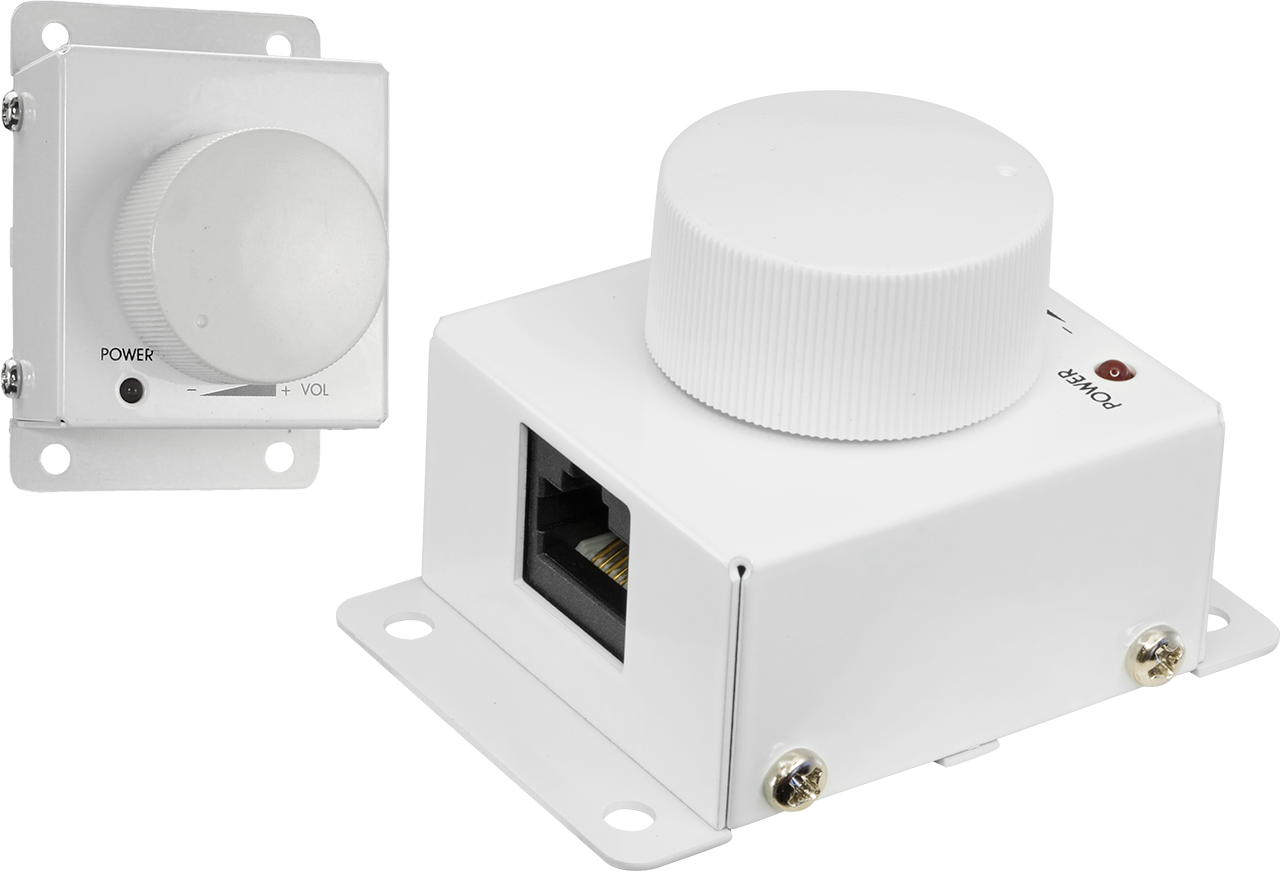

- Speaker volume control
- Class D power amplifier
- Speaker protection circuit
- Large detachable terminal block (supplied) for quick andeasy installation.
- Screw terminals handle wire sizes from 24 to 12 gauge.

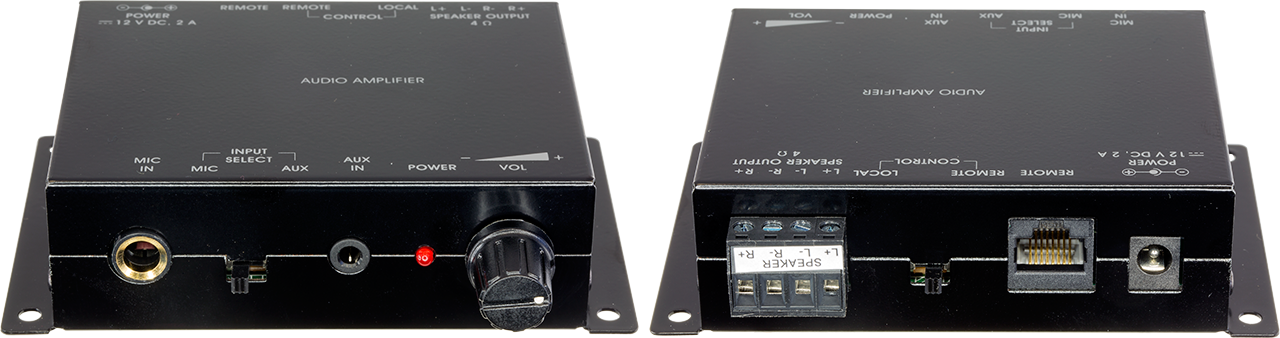

Connections
- Input: 3.5mm stereo
- Input 6.5mm stereo – dynamic microphone
- Speaker outputs: for 1 speaker pair (via screw terminals)
Specifications
- Inputs: Dynamic microphone or setreo audio line level
- Mircophone pre-Amplifier gain: 40dB
- Speaker Audio Power Amplifier:
- Power Amplifier Type:Stereo Class-D
- Output power:15W (rms) per channel (@ RL=4 ohm)
- THD+N: 0.06 % (@ RL=8 ohm, f= 1 kHz)
- Minimum Load Resistance: 4 ohm
- Includes Speaker Protection circuit
Power & Dimensions:
- Power Consumed: 2A Max
- Power Source: DC 12 Volts 2A (included)
- Size (LxWxH): 115mm x 98 mm x 31mm
