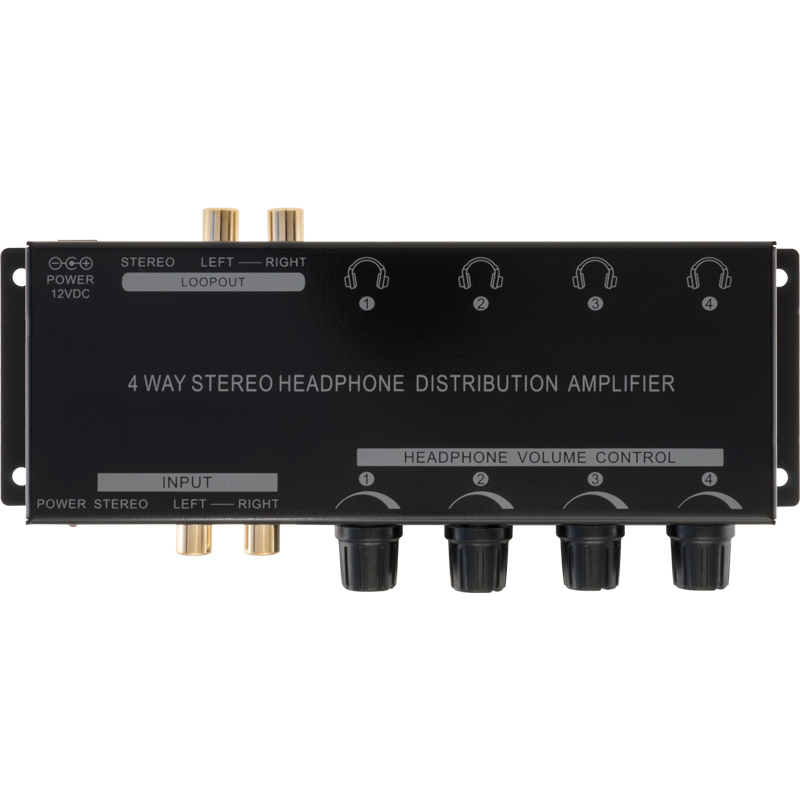

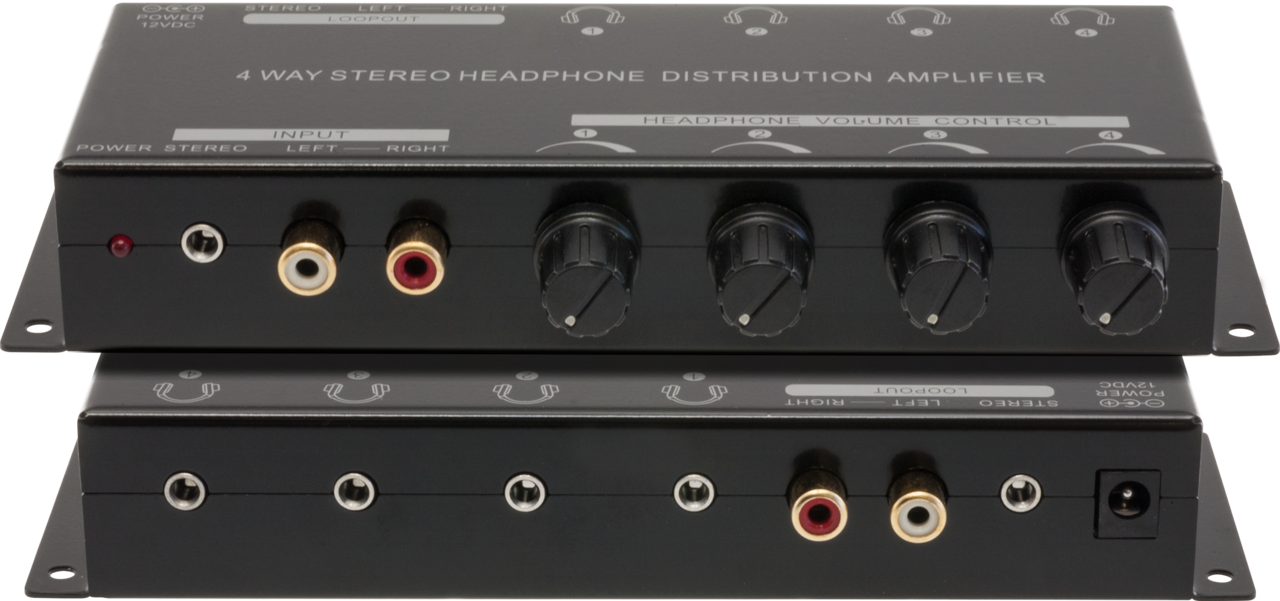

PRO1340 4-WAY HEADPHONE AMPLIFIER

Features

Perfect for headphone displays in stores or create your own Silent Cinema room at home! Connect up to four sets of headphones, each with individual volume controls.

  • Power On with LED indicator
  • Stereo 3.5mm and RCA connections (only one connection possible at a time)
  • Individual volume control for each headphone output
  • Loop-out via both Stereo 3.5mm and RCA output simultaneously
  • Used in music stores, studios, museums, education, home component systems and commercial sound systems.

Specifications

  • Connector Type: 3.5mm stereo
  • Output power: 105mW (rms) per channel
  • THD+N: 0.05 % (@ RL=16 ohm, f = 1 kHz)
  • Minimum Load Resistance: 16 ohm
  • Voltage: 12VDC / Center positive
  • Dimensions: 185 L x 86 W x 31 H mm
  • Weight: 350g
