PRO1323 4-ZONE AUDIO POWER AMPLIFIER

Features

With a diverse range of inputs, including digital (optical or coaxial) and dynamic microphone inputs, and the ability to adjust each zone’s volume independently, the PRO1323 is a quick and easy way of adding audio in up to four rooms. It also features a Loop-out for expanding to another unit, increasing the number of zones further!

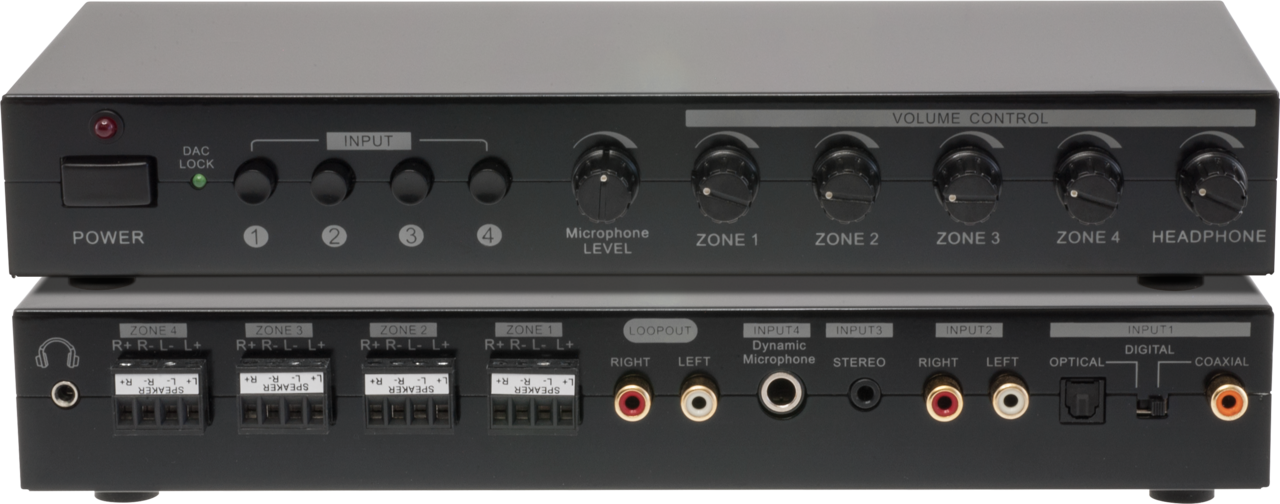

  • Four-in and five-out
    • IN: 1x Digital (Optical / Coaxial selectable), 1x RCA Stereo, 1x 3.5mm Stereo, 1x Dynamic Microphone input
    • OUT: 4 Speaker output + 1 Headphone output
  • Built-In audio digital to analogue converter (DAC)
    • Audio DAC Lock indicator
  • Independent microphone level control
  • Individual speaker volume control
  • Provides line loop-out for expanding to more zones
  • Large detachable terminal block (supplied) for quick andeasy installation
    • Screw terminals handle wire sizes from 24 to 12 gauge

Specifications

Speaker Audio Power Amplifier (x4):

  • Amplifier Type: Stereo Class-D
  • Output power: 15W (RMS) per channel (@ RL=4 ohm)
  • THD+N: 0.06 % (@ RL=8 ohm, f = 1 kHz)
  • Minimum Load Resistance: 4 ohm
  • Includes Speaker Protection circuit.

Earphone Audio Power Amplifier:

  • Output power:105mW (RMS) per channel
  • THD+N: 0.05 % (@ RL=16 ohm, f = 1 kHz)
  • Minimum Load Resistance: 16 ohm

Power & Dimensions:

  • Power Consumed: 9A Max
  • Power Source: DC 12 Volts
  • Size (LxWxH): 285mm x 128mm x 43mm
  • Net Weight (Unit only): 0.8 Kg
