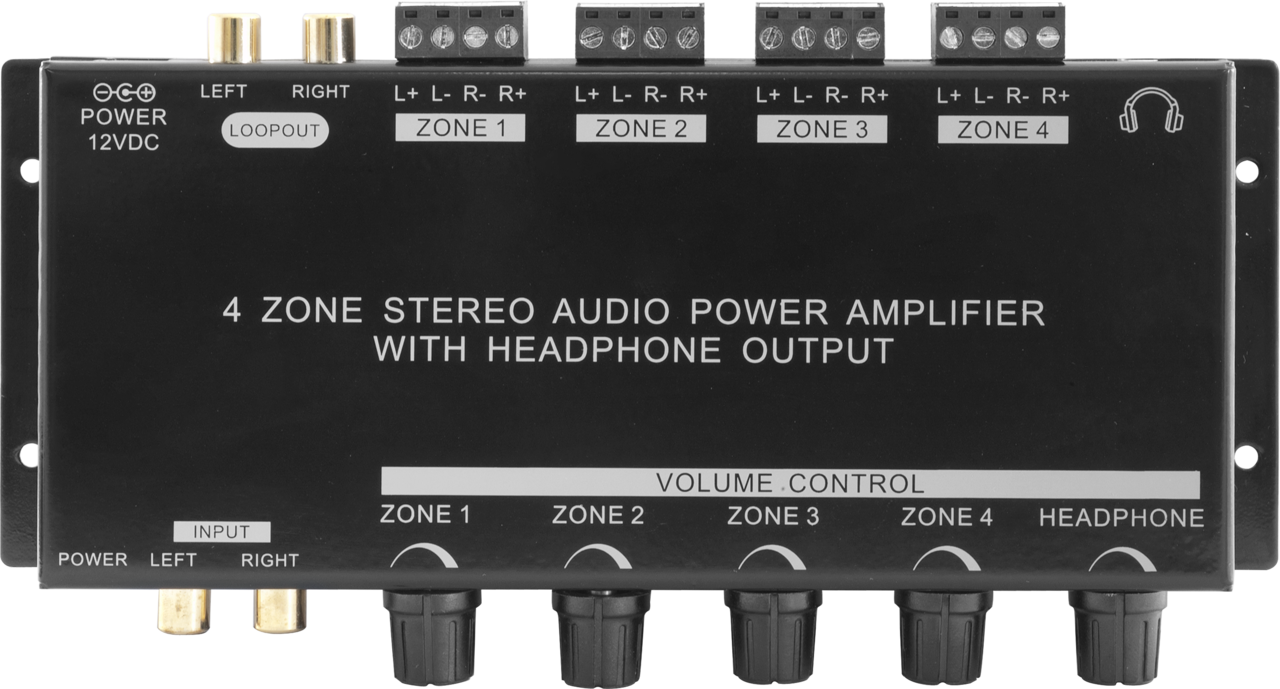

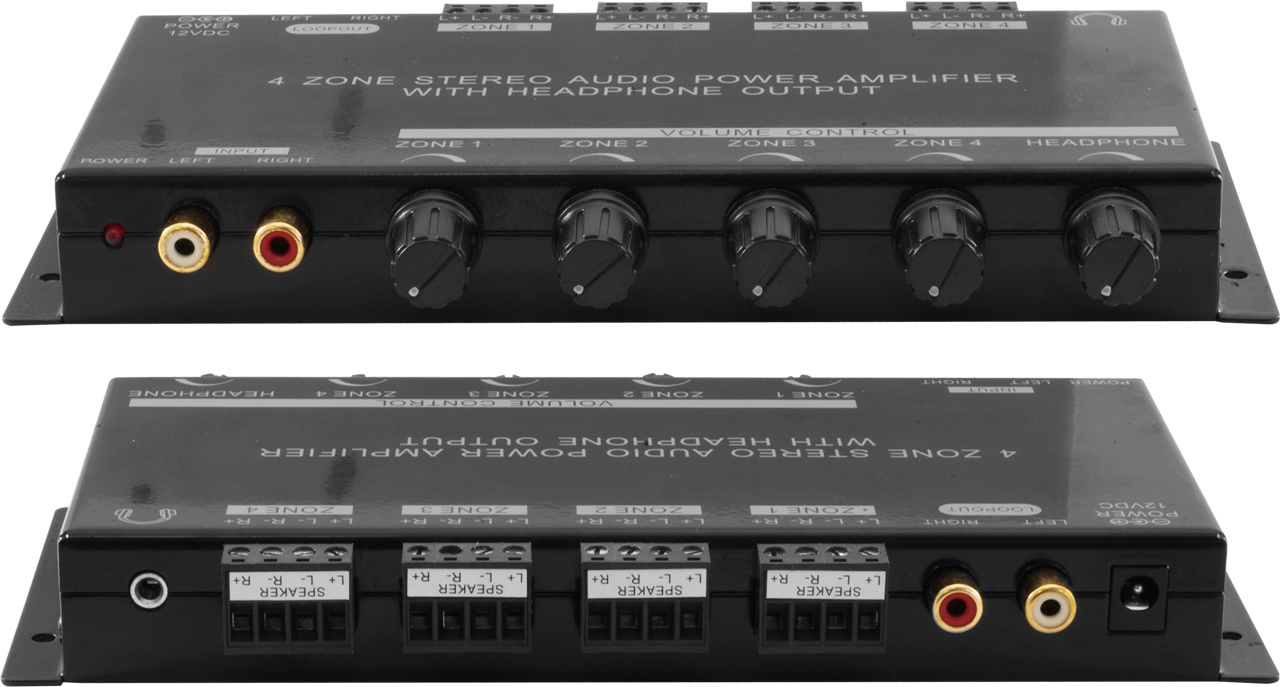

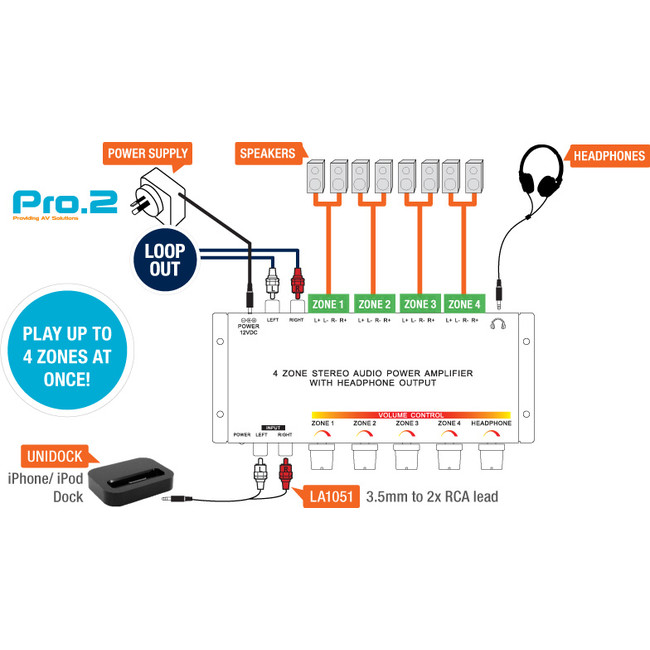

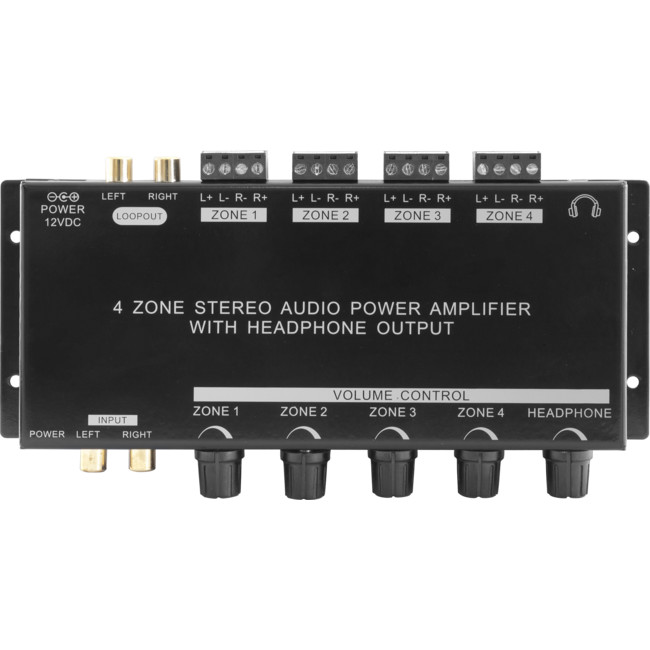

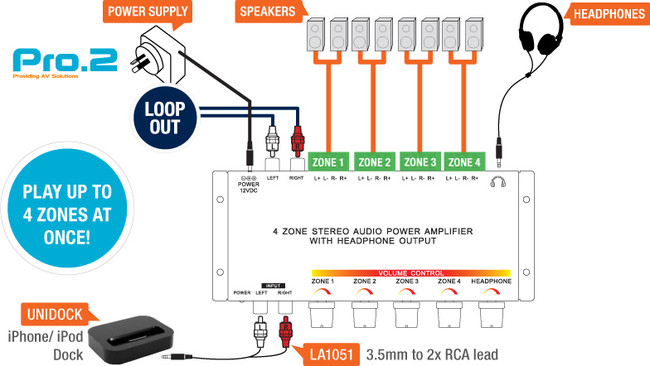

4 Zone Stereo Audio Power Amplifier With Headphone Output
SPECIFICATIONS
Speaker Audio Power Amplifier (x4)
- Amplifier Type:Stereo D-Class
- Output power:15W (RMS) per channel
- THD+N: 0.06 % (@ RL=8 ohm, f = 1 kHz)
- Minimum Load Resistance: 4Ω
- Includes Speaker Protection circuit.
- Output power:105mW (RMS) per channel
- THD+N: 0.05 % (@ RL=16 ohm, f = 1 kHz)
- Minimum Load Resistance: 16Ω
- Power Consumed: 9A Max

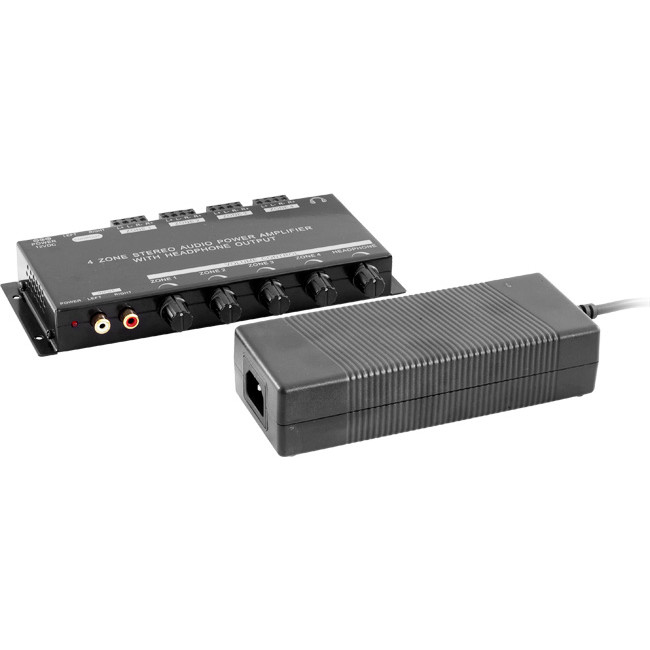

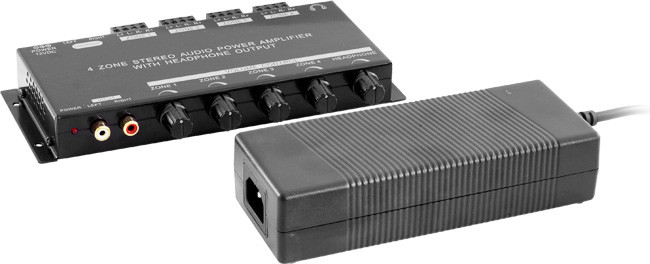

- Power Source: DC 12 Volts (POWER SUPPLY INCLUDED)
- Size (LxWxH): 205 mm x 108 mm x 26 mm
- Net Weight (Unit only): 0.48 Kg
