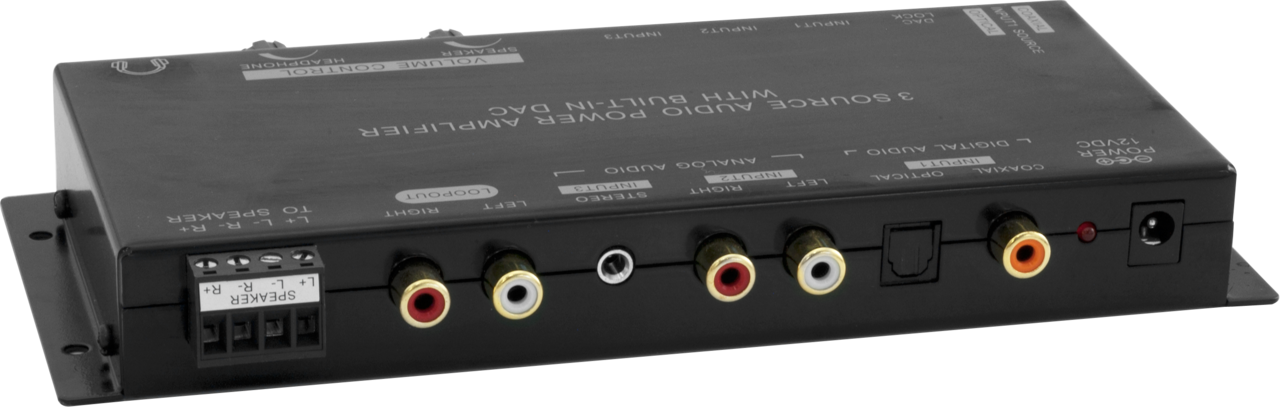

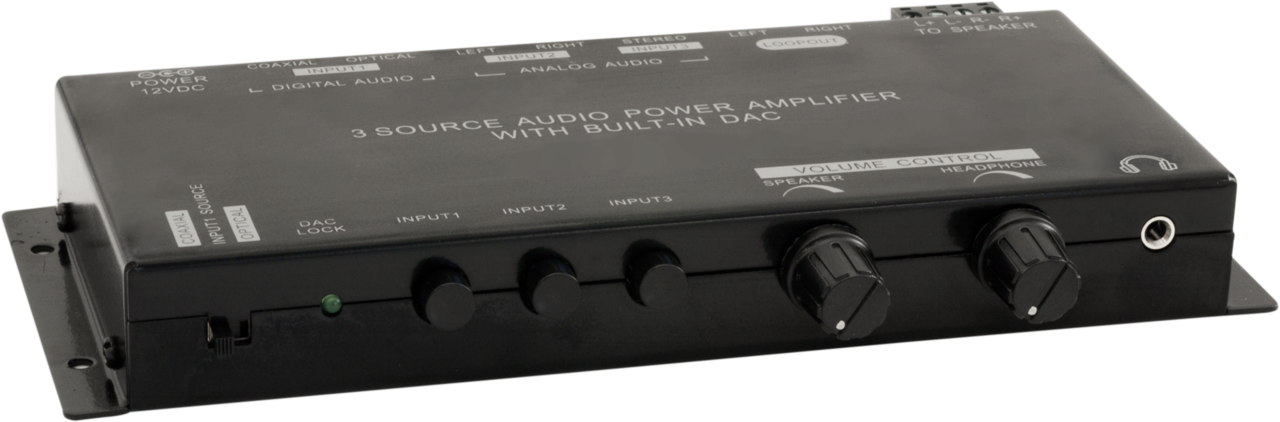

3-Source Audio Power Amplifier With Built-in DAC
SPECIFICATIONS Speaker Audio Power Amplifier
SPECIFICATIONS Speaker Audio Power Amplifier
- Amplifier Type:Stereo D-Class
- Output power:15W (rms) per channel for 4ohm load, 15W (rms) for both channels for 8ohm load
- THD+N: 0.06 % (@ RL=8 ohm, f = 1 kHz)
- Minimum Load Resistance: 4 ohm
- Includes Speaker Protection circuit.
- Output power:105mW (rms) per channel
- THD+N: 0.05 % (@ RL=16 ohm, f = 1 kHz)
- Minimum Load Resistance: 16 ohm
- Digital Input Type: Coaxial & Optical
- Support Digital Audio Format: LPCM
- Input Impedance: 75 ohms
- Frequency Response: 32 – 192KHz sample rate
