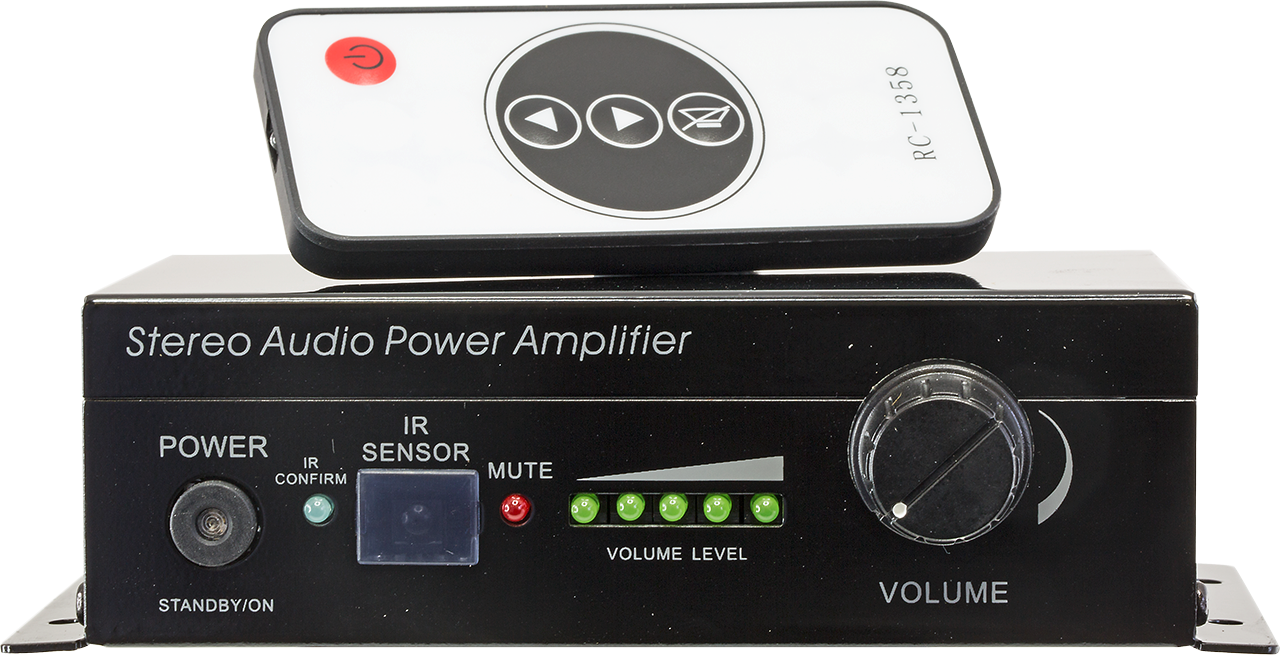

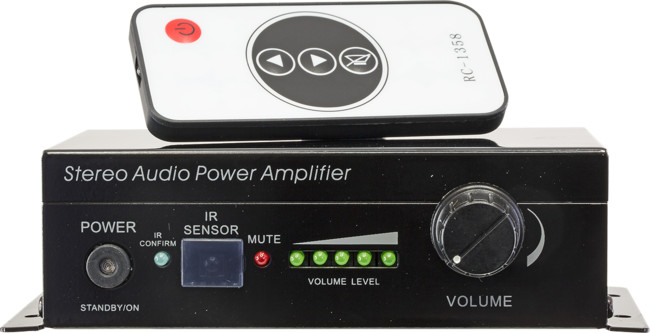

Features
- Provides manual or remote volume control
- Power standby (red) / ON (green) indicator
-

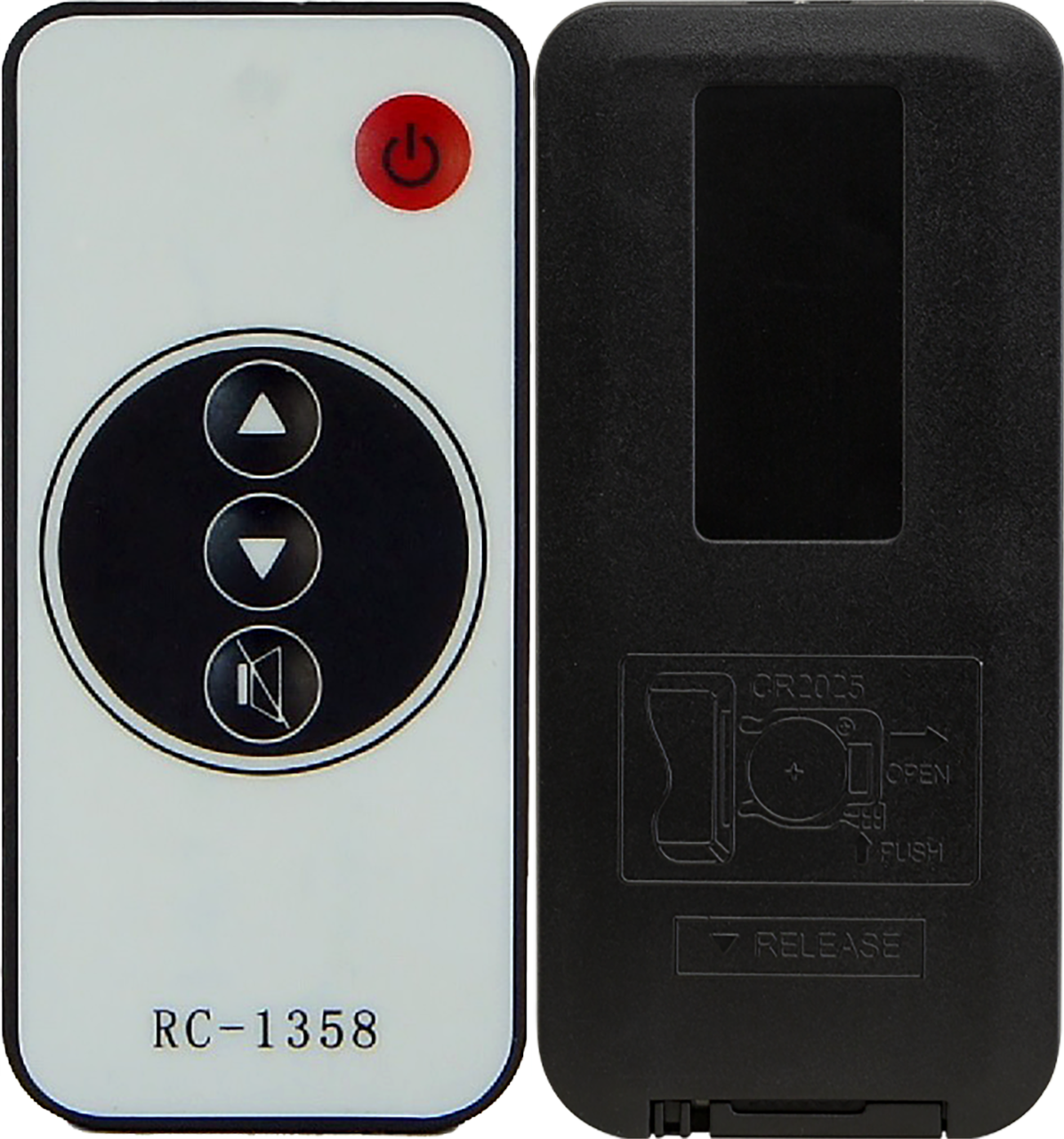

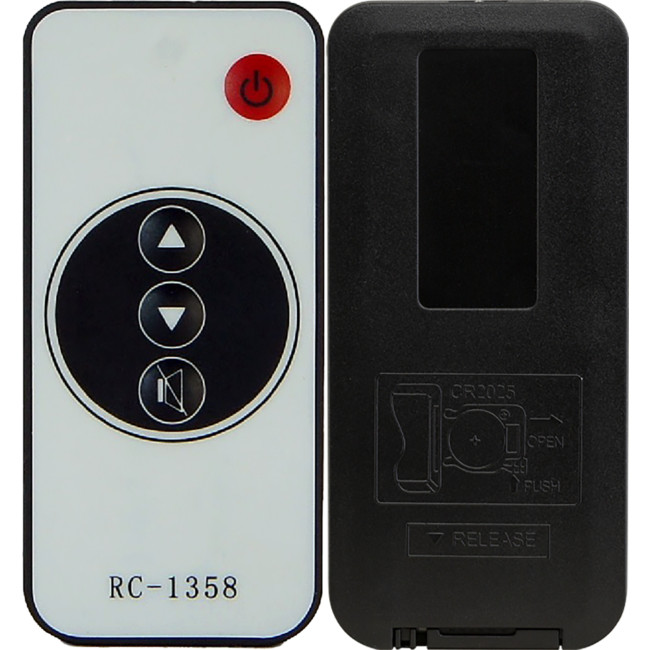

Provides 3 IR path remote control:
- IR sensor (front)

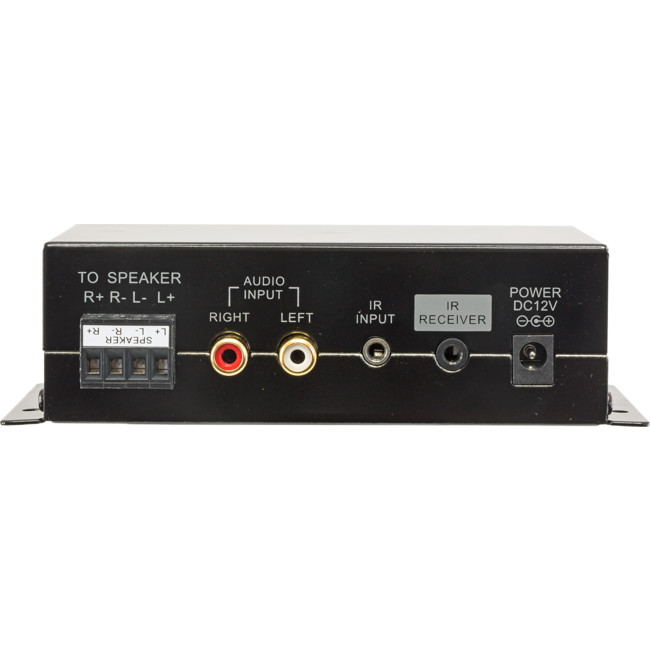

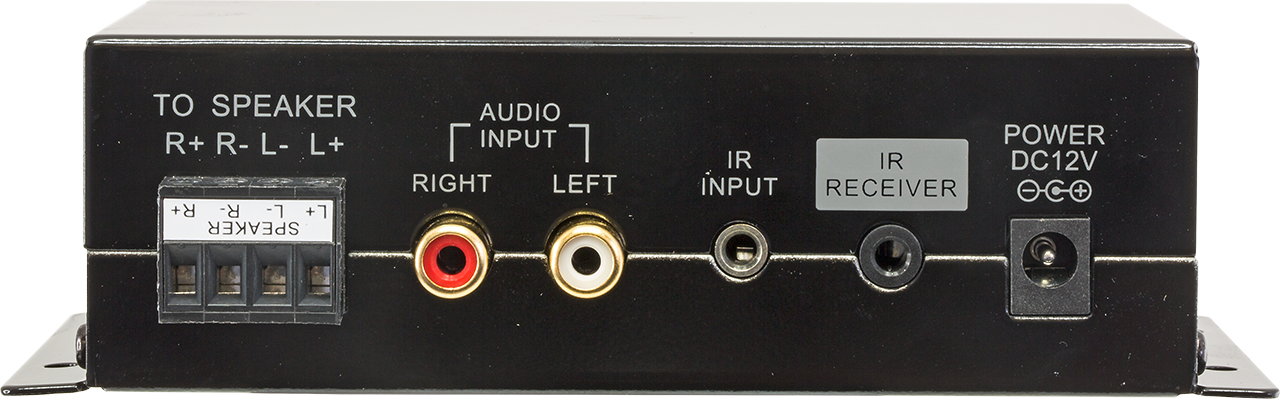

- IR receiver (rear)
- IR repeater system (rear)
- IR LED for confirmation
- Support muting function
- Provides volume level indicator
- Large detachable terminal block (supplied) for quick andeasy installation
- Screw terminals handle wire sizes from 24 to 12 gauge
Specifications
Speaker Audio Power Amplifier
- Amplifier Type: Stereo Class-D
- Output power:15W (rms) per channel (@ RL=4 ohm)
- THD+N: 0.06% (@ RL=8 ohm, f=1 kHZ)
- Minimum Load Resistance: 4ohm
- Includes Speaker Protection circuit
Power & Dimensions:
- Power Source: DC 12V / 2A (included)
- Size (LxWxH): 145mm x 97mm x 41mm
