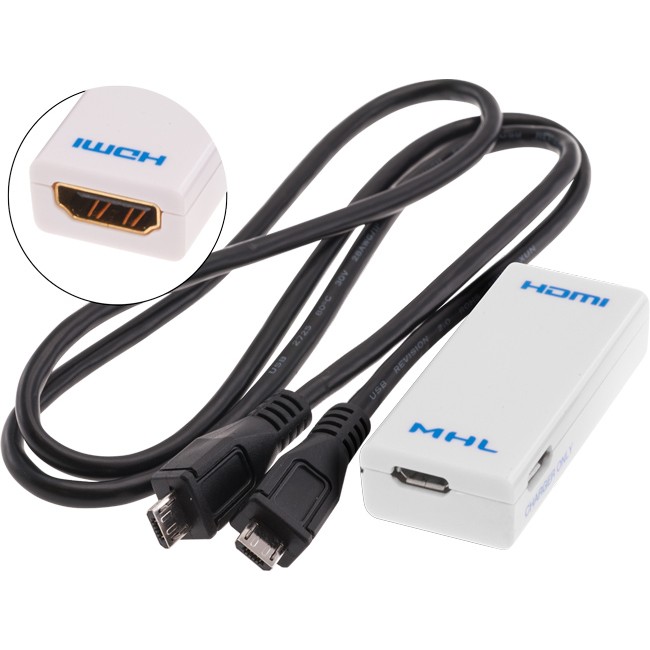

• MHL-to-HDMI bridge device
  • Supports HD audio and video connectivity
• Connections:
  • MHL input (micro-USB 5pin receptacle)
  • Secondary MHL / micro-USB for charging only
  • HDMI output
• HDMI output resolution support:
  • Up to 1080p@ 24/​30Hz
• Comes with MHL-to-MHL lead

• Extend HDMI signals up to 50 metres
• Compact size
• No need external power supply
• Requires no user operation
• Supports 3D video formats
• CEC Pass-Through
• Signaling rates up to 2.25Gbps in support of UXGA and 1080P display
• 40dB receiver equalization

• Bandwidth upto 18Gbps, Resolution upto 4Kx2K @ 60Hz, YUV4:4:4
• Transmitter upto 25m under 4K@60Hz, 30m under 4K@30Hz
• Supports 3D
• CEC Pass Through
• HDCP2.2/​1.4 Compliant
• Compact size
• Power consumption is less than 1W
• No power supply needed

• Four amplified emitter output connections
• convenient IR confirmation LED
• Power indication LED
• Compact size for mounting near audio equipment
• IR receiver and emitters supplied
• Compatible with Foxtel IQ2

• 1x Compact IR Repeater Box
• 1x IR Receiver (3.5mm Stereo plug)
• 2x Dual IR Emitters (3.5mm Mono plug)
• 1x Power Adapter (5VDC / 500mA)
• 2x Mounting Screws

.rpg_table { border-collapse: collapse } .rpg_table th, .rpg_table td { padding: 5px; } .rpg_table td, .rpg_table th { text-align: left; vertical-align: top; border-top: solid 1px #cccccc; border-bottom: solid 1px #cccccc; } .rpg_table th, .rpg_table .header { font-weight: bold; text-align: left } .rpg_table th[align=center], .rpg_table td[align=center] { text-align:center; }

Can I use the PRO1326 with other Pro2 accessorieslike IR hubs, IR targets and IR wall plates?
The accessories are designed to be compatible with the PRO1187 IR block but not the PRO1326. Since the Vcc output voltage from IR Receiver socket (on thePRO1326) is 5 volts (not 12 volts like the PRO1183) so you can’t connect the output of the PRO1326 to many of the otherPro2 IR accessories.

Why the IR confirmation blue LED stays on?

Please make sure IR target has been plugged in. Once plugged in, the IR confirmatino light will be off and only blinks when it receives IR signal.

IR:

• Compatible with all universal full band carrier frequency infrared remote
• Better IR receive sensitivity (distance), over 7 meter

RF:

• Long range transmission over 200 meter (open space)
• 915 MHz RF technology to ignore current 433MHz RF-interference
• FSK modulation:
  • Better signal sensitivity than ASK modulation
  • Better anti RF-interference than ASK modulation
  • Better noise suppression
  • Digital encrypted function ensures safety and reliability
  • Support one receiver to Multi transmitter

  Power supply: 5V 0.5A

Kit includes of:

• Infrared connecting block
  Connects IR receivers, power supply and emitters together to interface the IR system to the audio / video components.
  • Six emitter output connections
  • Convenient IR confirmation LED
  • Status power receptacle with LED indicator
  • 3 conductor 1/​8" receptacle for interfacingwith many brands of free standing IR receivers
  • Compact size for mounting near audio equipment
  • 82 (W) x 60 (H) x 27 (D) mm
  • 110 g
• Mini stick infrared receiver
  Receives IR signals from a handheld IR remote control and relays this signal to the audio/​video equipment for operation from another room. The receiver has a non-skid base and is placed on a flat surface.
  • CFL friendly – allows installation in areas with compact fluorescent lighting.
  • Blue IR confirmation LED
  • Wide band IR
  • 3 m cable with 3.5 mm stereo mini plug
• Infrared emitter
  • Round shape, with elegant & compact size
  • Transparent housing
  • 10ft cable length
  • 3.5mm standard mono plug
  • With self-adhesive tape for quick and easy fixing on any hard, clean and dry surface
• 12 V 200 mA power supply

Click for a larger version

Wired connection from the PRO1178A to the connecting block
Click for a larger version

• Foxtel Compatible
  • Receive Frequency Range: 34 KHz ~ 60 KHz
  • Transmit Frequencies: 38 KHz ~ 56 KHz
• Range:
  • 12 metres (40 ft) @ 38 KHz
  • 7.6 metres (25 ft) @ 56KHz
• Power: 12V DC 30mA max.
• 45 (L) x 14 (W) x 13 (H) mm
• Cord Length: 3 metres (10 ft)
• Connector Type: 3.5mm TRS mini plug
• Weight: 28 g

What are the distance restrictions when running IR from this device?

We tested the Pro1183 IR block to the Pro1140 Inwall IR receiver. Between the devices, we used 50m of Pro2 patch leads and a total of 3 cat5e joiners (TEL5011) to simulate wall plates. The signal was passing reliably between the devices.

The PRO1255 IR repeater wall plate kit connects the IR connecting block, IR receiver, IR emitter, and power supply together to interface the IR system to Audio/​Video components.

With this setup, you are able to remotely control AV devices in different locations. Wall plates mount to a standard signle gang electrical box using deco cover plates.

In-wall IR Connecting Block

• Three emitter output connections
• Convenient IR confirmation LED
• Status power connector with LED indicator
• Power input connector with LED indicator
• Large detachable IR receiver connection at back
• Specifications:
  • Dimensions: 70 (W) x 114 (H) x 40 (D) mm
  • Weight: 56gr

In-wall IR Receiver
Receives IR signals from a handheld IR remote control and relays this to the AV equipment for operation from another room.

• Dual colour LED (Green for system status / Blue for talk back)
• Ultra-thin design mounts to any J-box or P-ring
• Wide band IR receives signals from many types of remotes
• Specifications:
  • Receive frequency range: 34 KHz to 40 KHz
  • Transmit frequency: 38 KHz
  • Range:
    On axis: 16.8m to 24.4m
    30° off axis: 9.1m to 16.8m
  • Power: 12 V DC, 30mA max.
  • Status Power: 12 V DC, 3mA max.
  • Dimensions: 70 (W) x 114 (H) x 16 (D) mm
  • Weight: 36gr

Kit includes:

• In-wall IR Connecting Block
• In-wall IR receiver
• Dual IR emitter
• Single IR emitter
• Switch mode power supply

Q: Can I add extra IR receiver in other room? How many and how?

A: Yes, you can add 2 extra receivers in the system, total up to 3 IR receivers are suggested for the system, thewiring diagram is on page 4 of the manual.
