FP7640 2M FIBRE PATCH LEAD LC-LC

Features

OM4 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cables, is used for 10/​100Gb Ethernet applications. These new technology, 50/​125um, LC/​LC OM4 Fiber Optic Patch Cord, provide nearly three times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Singlemode cable, at a much reduced cost. LOMMF cable allows 10/​100Gb serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution.
LOMMF is ideally suited for LAN’s, SAN’s, and high-speed parallel interconnects for head-ends, central offices, and data centers.

  • Designed for 10/​40/​100-Giga Ethernet applications, OM4 Rated
  • 10/​/40/​100gb Ethernet speed to 300 meters @850nm
  • Use with VCSEL and LED laser light sources
  • High-Speed, High-Bandwidth, Low-Cost
  • Backward compatible with legacy LAN’s
  • Ideal for Fibre Channel (SAN) applications
  • IEEE 802.3ae and TIA LOMMF compliant

Specifications

Type

Multi-mode 50/​125 OM4

Insertionloss

≤0.3dB

Return Loss

≥35 dB

Network Speed

10Gbps / 40Gbps / 100Gbps

Repeatability

≤0.1dB

Durability

≥1000matings

OperatingTemperature

-40°Cto +80°C

Tensile Strength (N)

≥90N (Φ3), ≥70N (Φ2)

Related Products

FP7642 3M FIBRE PATCH LEAD LC-LC

Features

OM4 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cables, is used for 10/​100Gb Ethernet applications. These new technology, 50/​125um, LC/​LC OM4 Fiber Optic Patch Cord, provide nearly three times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Singlemode cable, at a much reduced cost. LOMMF cable allows 10/​100Gb serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution.
LOMMF is ideally suited for LAN’s, SAN’s, and high-speed parallel interconnects for head-ends, central offices, and data centers.

  • Designed for 10/​40/​100-Giga Ethernet applications, OM4 Rated
  • 10/​/40/​100gb Ethernet speed to 300 meters @850nm
  • Use with VCSEL and LED laser light sources
  • High-Speed, High-Bandwidth, Low-Cost
  • Backward compatible with legacy LAN’s
  • Ideal for Fibre Channel (SAN) applications
  • IEEE 802.3ae and TIA LOMMF compliant

Specifications

Type

Multi-mode 50/​125 OM4

Insertionloss

≤0.3dB

Return Loss

≥35 dB

Network Speed

10Gbps / 40Gbps / 100Gbps

Repeatability

≤0.1dB

Durability

≥1000matings

OperatingTemperature

-40°Cto +80°C

Tensile Strength (N)

≥90N (Φ3), ≥70N (Φ2)

Related Products

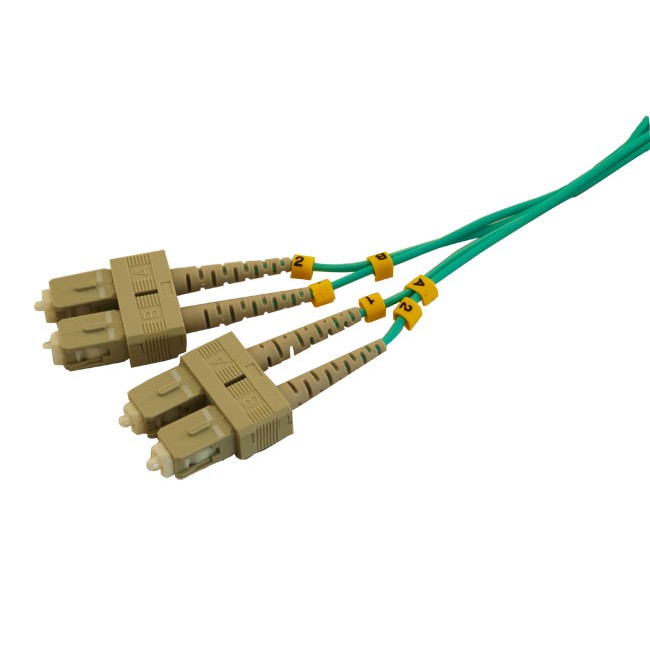

FP7660 2M FIBRE PATCH LEAD SC-SC

Pro2 fibre patch leads ensure the performance and reliability of servers, storage, and network switches and are built using the highest-quality fibre cable and connectors.

  • SC to SC connector
  • 50/​125 (OM3) patch cable
  • OD 2.0mm duplex
  • Length: 2m

Applications:

  • Gigabit Ethernet
  • Active Device Termination
  • Premise Installations
  • Telecommunication Networks
  • Multimedia

Fibre-Connection Types

LC – The LC connector features a small form factor and resembles the SC connector.

SC – The SC connector has a molded, plastic plug casing and a push/​pull locking system.

ST – The ST connector uses a push-and-turn-to-lock system.

MTRJ -The MTRJ connector is a small form-factor connector with a square plastic casing that contains both fibre strands into a single polymer ferrule.

Related Products

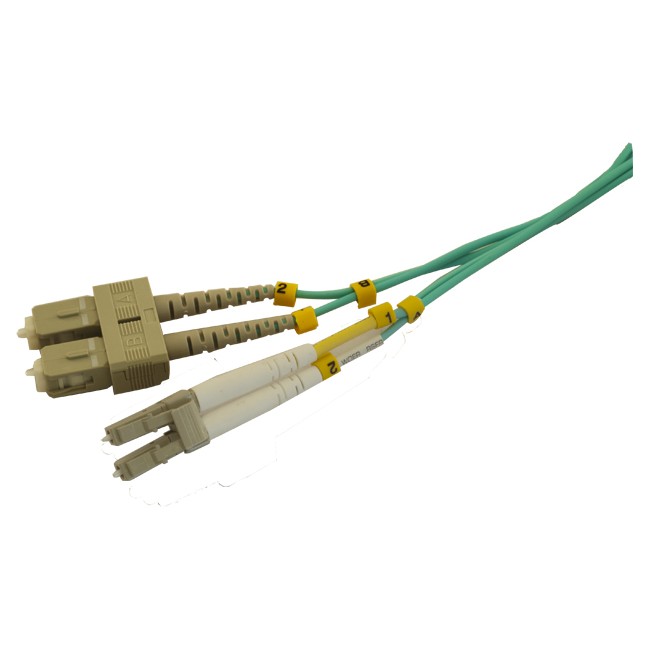

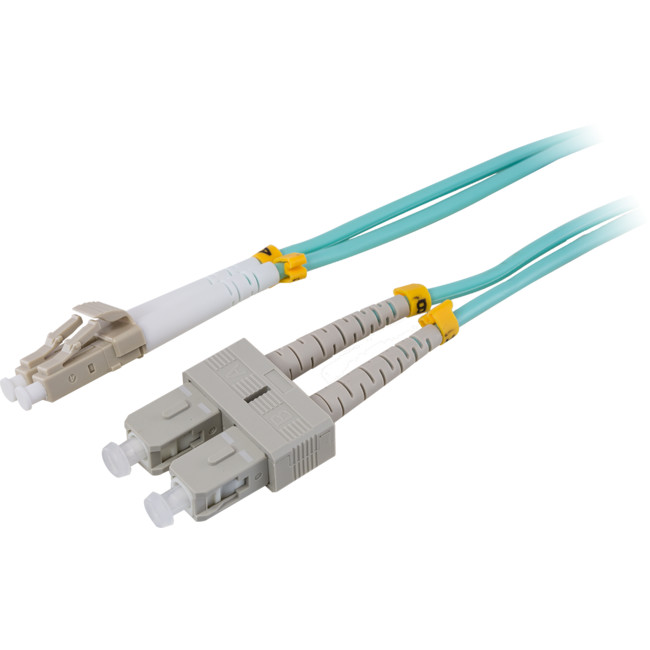

FP7770 2M FIBRE PATCH LEAD LC-SC

Features

OM4 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cables, is used for 10/​100Gb Ethernet applications. These new technology, 50/​125um, LC/​SC OM4 Fiber Optic Patch Cord, provide nearly three times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Singlemode cable, at a much reduced cost. LOMMF cable allows 10/​100Gb serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution.
LOMMF is ideally suited for LAN’s, SAN’s, and high-speed parallel interconnects for head-ends, central offices, and data centers.

  • Designed for 10/​40/​100-Giga Ethernet applications, OM4 Rated
  • 10/​/40/​100gb Ethernet speed to 300 meters @850nm
  • Use with VCSEL and LED laser light sources
  • High-Speed, High-Bandwidth, Low-Cost
  • Backward compatible with legacy LAN’s
  • Ideal for Fibre Channel (SAN) applications
  • IEEE 802.3ae and TIA LOMMF compliant

Specifications

Type

Multi-mode 50/​125 OM4

Insertionloss

≤0.3dB

Return Loss

≥35 dB

Network Speed

10Gbps / 40Gbps / 100Gbps

Repeatability

≤0.1dB

Durability

≥1000matings

OperatingTemperature

-40°Cto +80°C

Tensile Strength (N)

≥90N (Φ3), ≥70N (Φ2)

Related Products

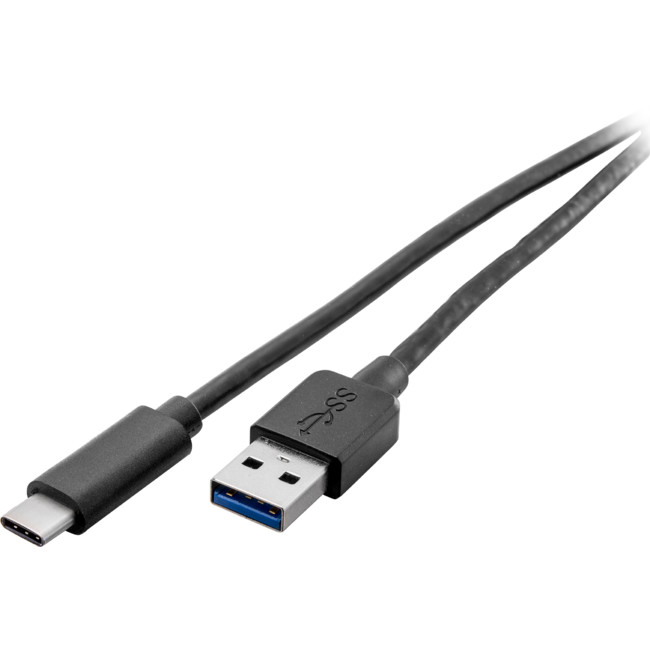

LC7805 1M USB-C TO USB3.0 LEAD

Features

USB 3.1 Type-C to USB 3.0 Type-A type lead. The perfect lead for connection between USB-C and standard USB-A ports. With its integrated 56K resistor, the Pro2 LC7805 lead is fully compliant and is safe to use.

  • Fully compliant
  • Reversible Design: Smaller, smarter and more convenient!
    USB Type-C, with its reversible design, simplifies connections. Ensures that you plug the connector the right way, each and every time.
  • Backwards compatible with existing USB 3.0 and USB 2.0devices

Specifications

  • USB C 3.1 type plug to USB A 3.0 plug
  • 56K resistor
  • Colour: Black
  • Lead length: 1 m

Compatibility

  • Compatible with new Apple MacBook (12" 2015), Nokia N1 Tablet, the Google ChromeBook Pixel (2015), OnePlus2, Asus Zen AiO, Google Nexus 5X, Google Nexus 6P, Lumia 950, Lumia 950XL, Lenovo ZUK Z1, HP Pavilion x2, Apple TV 4,ASUS Zenpad S 8.0 and other devices with type-c support

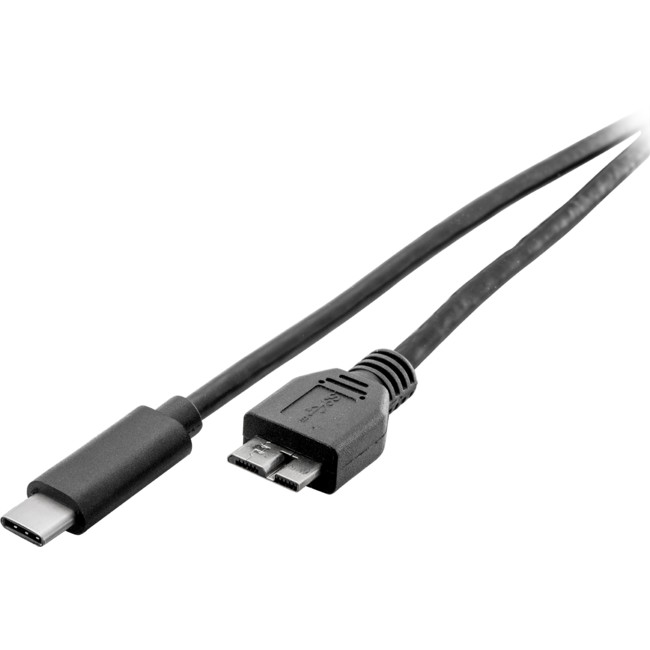

LC7815 1M USB-C TO MICRO B LEAD

Features

USB 3.1 Type-C to Micro USB 3.0 Type-B OTG lead. The perfect lead for connection between USB-C and standard MicroUSB Type-B ports. With its integrated 56K resistor, the Pro2LC7815 lead is fully compliant and is safe to use.

  • Fully compliant
  • Reversible Design: Smaller, smarter and more convenient!
    USB Type-C, with its reversible design, simplifies connections. Ensures that you plug the connector the right way, each and every time.

Specifications

  • USB C 3.1 type plug to Micro USB 3.0 Type-B plug
  • 56K resistor
  • Colour: Black
  • Lead length: 1 m

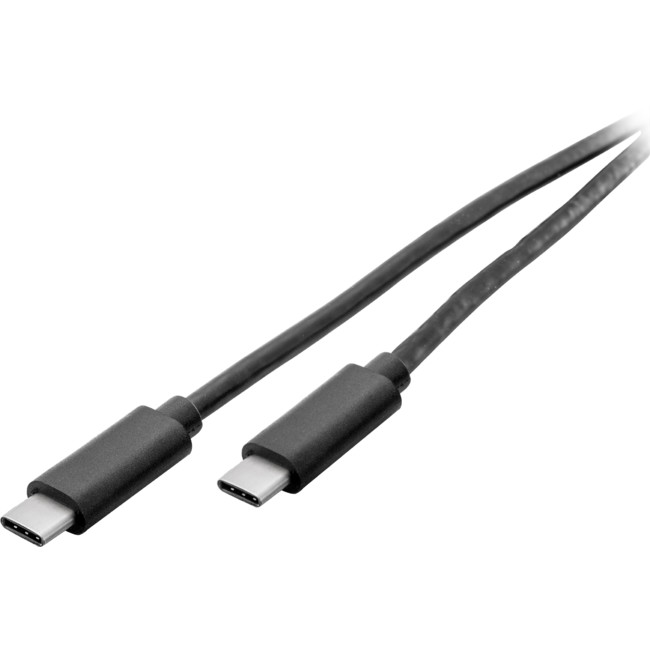

LC7825 1M USB-C TO USB-C LEAD

Features

USB 3.1 Type-C to USB 3.1 Type-C lead. The perfect lead for connection between USB-C and USB-C ports. With its integrated 56K resistor, the Pro2 LC7825 lead is fully compliant and is safe to use.

  • Fully compliant
  • Reversible Design: Smaller, smarter and more convenient!
    USB Type-C, with its reversible design, simplifies connections. Ensures that you plug the connector the right way, each and every time.

Specifications

  • USB C 3.1 type plug to USB C 3.1 type plug
  • 56K resistor
  • Colour: Black
  • Lead length: 1 m

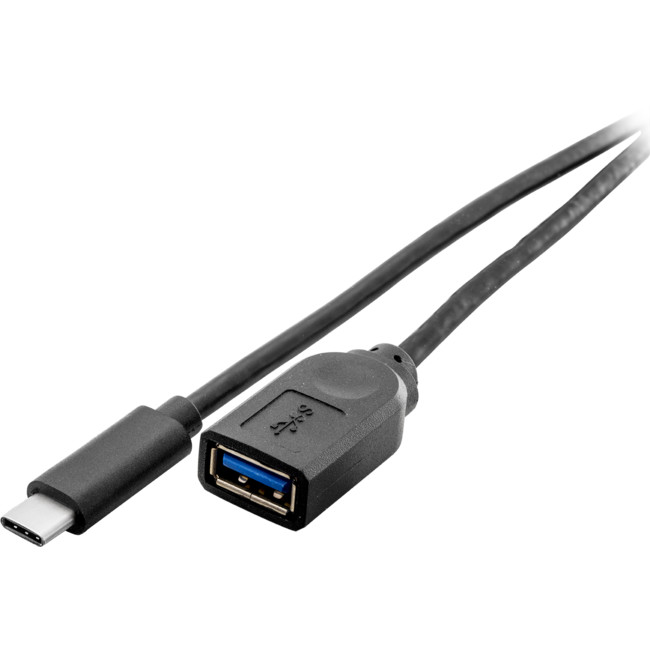

LC7855 0.5M USB-C TO USB3.0 LEAD

Features

USB C type plug to USB A type socket lead. It provides connection between USB-A plug devices to USB-C ports.

Please note: This is an adapter lead and does not have OTG

Specifications

  • USB C 3.1 type plug to USB A 3.0 plug
  • Colour: Black
  • Length: 0.5M

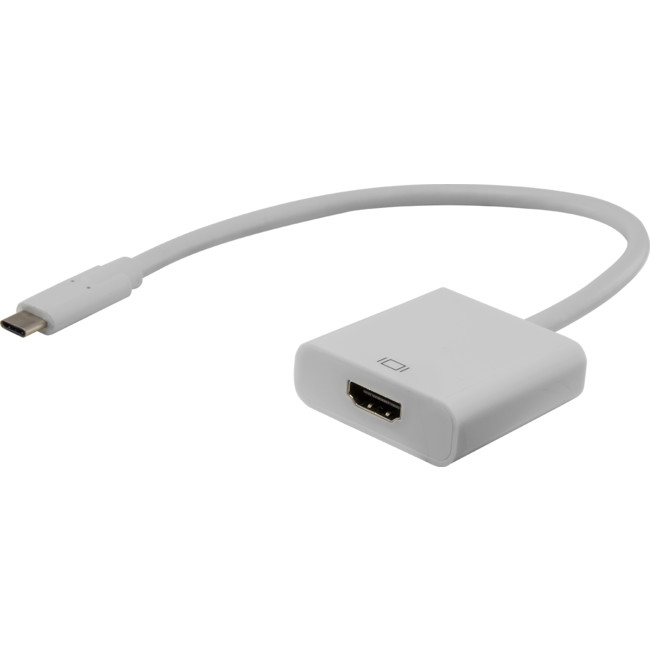

LC7865 0.3M USB-C TO HDMI LEAD

Features

USB C type plug to HDMI socket lead. It provides HDMI connection through any C type ports on your mobile device

Specifications

  • USB C 3.1 type plug to HDMI socket
  • Color: White
  • Length: 30CM

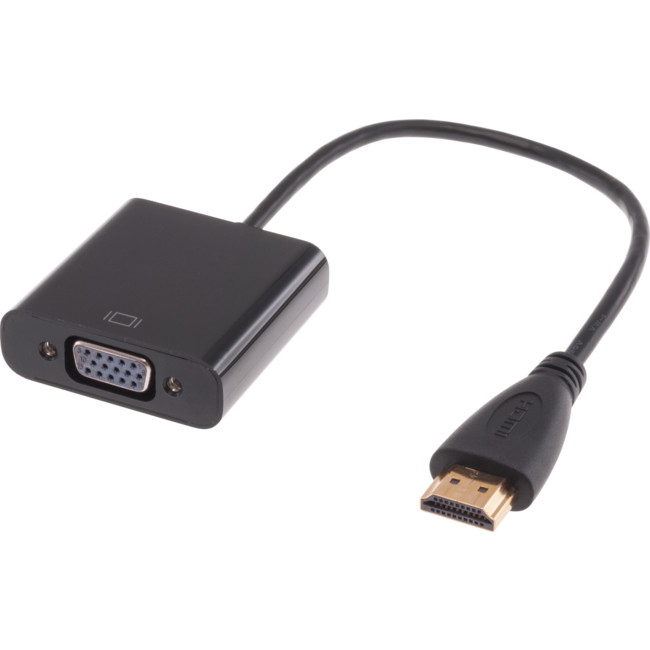

HV02 HDMI TO VGA ADAPTOR LEAD

Features

HDMI to VGA Display Adapter

  • Converts HDMI video to analog VGA video (no audio)
  • Supports analog video output up to UXGA and 1080p
  • Just plug and play
  • No need extra power supply
Please note: this adapter is recommended for connecting Computers/​Laptops with HDMI output to a projector or monitor that only supports VGA input. Operationis dependent on driver and hardware support. May not work with other HDMI sources.

Supported resolutions

Formats Hz
640×480 50/​60/​75
720×480 50/​60
720×576 50/​59/​60
800×600 50/​60/​72/​75
848×480 50/​60
1024×768 43/​60/​70/​75
1152×864 43/​47/​60/​75
1280×720 50/​59/​60
1280×768 56/​60
1280×800 60
1280×960 60
1280×1024 43/​47/​60/​75
1360×768 60
1360×1024 60
1400×1050 59/​60
1440×900 59/​60
1600×1200 60
1680×1050 60
1920×1080 25/​30/​50/​60

FAQs

Do they work with DVD or BD Players?
We have tested this adapter from a Panasonic DVD player to a Panasonic Commercial panel. It would not work. The DVD player was replaced with a PS3, which did work. A converter like the Pro2 HVY01 would also be a suitable choice.
