HDMIKVM HDMI USB KVM EXTENDER OVER IP

Features

1080p and 720p video compatible, plus 2-channel audio
Uses off-the-shelf gigabit IP switches for extension anddistribution
Plug-and-play operation-no programming or setup required
Extends 1080p HDMI signals up to 120m over a single Cat5e/6 cable
Traffic can be unicast, multicast or broadcast for different applications
Build-in DIP swith to change Group ID for multiple displays
Can be cascaded for many layers by daisychain Ethernet switches
Allows wide-band IR (38-56KHZ) remote control of sources devices
HDCP Compatible
Supports USB
DC 5V Power supply (included)

Wiring Diagram

Specifications

Operating Temperature Range	−5 to 35°C
Operating Humidity Range	5 to 90%RH (No Condensation)
Support Video Format	DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P
Output Video	HDMI, HDCP
Transmission Distance	1080P @60Hz 120m (Maximum) over single CAT5E/6 / 24AWG/Solid
Power consumption	5V/1A DC Power consumption: Max. 4W
Dimension (L×W×H)	L94xW93.5xH24.6mm
IR frequency range	38-56kHz
Net Weight	Receiver:255g, Transmitter:255g
TX	Default IP address:192.168.168.55; MAC address:00:0b:78:00:60:01 Group IP address: 239.168.168.xx, (xx is the value of bits[2:0])
RX	Default IP address:192.168.168.56; MAC address:00:0b:78:00:60:02 Group IP address: 239.168.168.xx, (xx is the value of bits[2:0])

Note: IP and MAC address must be different for one TX to many RX or many TX to many RX configuration.

HDC6ECO HDMI OVER SINGLE CAT6 EXTENDER

Features

Each set includes one transmitter and one receiver
Easy installation, no need to do extra setting
Transmit HDMI signal over 50m via single Cat5e/6 without signal loss
The CAT5e/6 follows standard of IEEE-568B
Support high definition resolution up to Full HD 1080p
Support Dolby True-HD, DTS-HD Master audio
EDID reading and saving from display
Bandwidth can be up to 6.75 Gbps
Deep colour up to 36 bit
3D compatible
2x DC 5V 1A power supply (included)
4K/2K incompatible

Got the right cable?

Please note: IEEE-568B standard cables are recommended for this kit.

Wiring diagram

Specifications

Operating Temperature Range	−5 to +35°C
Operating Humidity Range	5 to 90%RH (No Condensation)
Input Video Signal	0.5-1.0 Volts P-P
Input DDC Signal	5 volts p-p (TTL)
Support Video Format DTV/HDTV	480i/576i/480P/576P/720P/1080i/1080P 3D video
Video Output	HDMI, HDCP
Support Audio Format	DTS-HD Master Audio Dolby True-HD etc.
Transmission Distance	1080P 8-bit 50m (Maximum) over single CAT5E/6 / 24AWG/Solid
Power consumption	5 watts (Maximum)
Dimension (L×W×H)	83x48x25mm
Net Weight	250g (Pair)

HDC6EDID HDMI OVER SINGLE CAT6 EXTENDER (Discontinued)

A neat and simple high definition HDMI extender kit. This kit extends your high definition AV sources from Blu-ray DVD Players, PS3 and XBOX etc. up to a maximum 50m via single solid CAT5E / 6 cables through the wall cavities. The new EDID feature increases its compatiblilty with players or displays. It supports full 1080P high definition and integrates an infra-red control extender for full controllability from the receiving end. RJ45 connections on the rear of both units make it for easy connection.

Transmits HDMI Audio/Video Signals and IR over a 50m single solid Cat5e/6 Cable.
Transmits a wide-band Bi-Directional IR control signal together with the HDMI signal.
Supports 24bit Deep Colour.
Full cascade to create larger distributions.
Automatically adjusts feedback, equalization and amplification
EDID DIP switch on Transmitter to enhance EDID communication between sources and displays
With adjustable EQ for optimizing the transmission signal
Supports PCM, Dolby Digital, and DTS Digital Surround
Follows IEEE-568B cable termination standards, solid cables are prefered
HDCP compliant
Supports 3D video format

Got the right cable?

Please note: IEEE-568B standard solid cables are recommended for this kit.

Wiring Diagram

Specifications

What are included in the package?

1xHDMI Transmitter
1xHDMI Receiver
2 x IR TX Emitter
2 x IR RX Receiver
2 x 5V / 1A DC Adapter (Australian approval)
User Manual

Transmission Distance	1080p up to 50m*
Operating Temperature Range	−5 to +35°C
Operating Humidity Range	5 to 90% RH (No Condensation)
Data transfer speed	6.75Gbps
Connectors	HDMI Receptacle x 2 RJ45 Receptacle x 2 Power DC Receptacle x 2 3.5mm stereo Receptacle x 2 (for IR TX and RX cable)
Resolution outputs	1080p/1080i/720p/576p/480p/576i/480i
Video colour bit supported	24bit
Audio format supported	DTS-HD Master Audio, Dolby True HD, multi-channel 5.1, stereo etc
Output Video Signal	HDMI + HDCP
Dimensions (HxWxD)	65 x 24.1 x 85mm
Power supply	5V DC Power supply (Included)
Power consumption	1.5W (MAX) (TX:0.5W, RX:0.3W)
Net Weight	319g
IR wavelength & frequency	Wavelength: 940nm IR Frequency: 38KHz – 56KHz

*Note: 50m distance is under perfect transmission conditions including straight cable runs with no electrical interference, bends, kinks, patch panels or wall outlets.

FAQ

Does this unit work with the new Foxtel iQ3?: Yes. Just make sure your IR emitter is placed in the correct location. See the image below.
Why is it not working well as it suppose to?: Please make sure IEEE-568B type solid cable is being used.

HDC6L HDMI OVER SINGLE CAT6 EXTENDER

Features

An upgraded version of our HDC6EDID. Now with local HDMI loop out on transmitter device enables local viewing function. Which means you can view the video source locally as well as on the extended end.

Transmits HDMI Audio/Video Signals and IR over a 50m single solid Cat5e/6 Cable.
Transmits a wide-band Bi-Directional IR control signal together with the HDMI signal.
Supports 24bit Deep Colour.
Full cascade to create larger distributions.
Automatically adjusts feedback, equalization and amplification
Supports PCM, Dolby Digital, and DTS Digital Surround
Follows IEEE-568B cable termination standards and solid cables are prefered.
HDCP compliant
Supports 3D video format
HDMI out port on transmitter

Got the right cable?

Please note: IEEE-568B standard solid cables are recommended for this kit.

Wiring Diagram

Specifications

What are included in the package?

1xHDMI Transmitter
1xHDMI Receiver
2 x IR TX Emitter
2 x IR RX Receiver
2 x 5V / 1A DC Adapter (Australian approval)
User Manual

Transmission Distance	1080p up to 50m*
Operating Temperature Range	−5 to +35°C
Operating Humidity Range	5 to 90% RH (No Condensation)
Data transfer speed	6.75Gbps
Connectors	HDMI Receptacle x 2 RJ45 Receptacle x 2 Power DC Receptacle x 2 3.5mm stereo Receptacle x 2 (for IR TX and RX cable)
Resolution outputs	1080p/1080i/720p/576p/480p/576i/480i
Video colour bit supported	24bit
Audio format supported	DTS-HD Master Audio, Dolby True HD, multi-channel 5.1, stereo etc
Output Video Signal	HDMI + HDCP
Dimensions (HxWxD)	65 x 24.1 x 85mm
Power supply	5V DC Power supply (Included)
Power consumption	1.5W (MAX) (TX:0.5W, RX:0.3W)
Net Weight	319g
IR wavelength & frequency	Wavelength: 940nm IR Frequency: 38KHz – 56KHz

*Note: 50m distance is under perfect transmission conditions including straight cable runs with no electrical interference, bends, kinks, patch panels or wall outlets.

FAQ

Does this unit work with the new Foxtel iQ3?: Yes. Just make sure your IR emitter is placed in the correct location. See the image below.

Why the product is not working well as it suppose to?

Please make sure IEEE-568B type solid cable is being used.

HDMIIPECO HDMI OVER ETHERNET EXTENDER

Features

HDMIIPECO uses H.264 as compression type, which takes lower bandwidth and transmits the signal over the LAN more smoothly. It transmits the HDMI signal for up to 120m over single cat5e / 6 cable at point to point, as well as point tomany and many to many over Ethernet switch. It can be widelyused in various locations, such as meeting room, class room, metro, airport, home, mall advertisement…etc.

Use H.264 as compression type, high video quality with low bandwidth required
Support resolution up to 1080p @ 60Hz, data transmissionspeed is 2.25 Gbps
FOXTEL IQ IR compatiable
Real and managable IP addresses allows HDMI source can be accessed inside network via VLC player.etc. Footages can be recorded by software.
Dip swithc to change sources
Support LPCM audio format, sample rate is 48KHz
Comply with TCP/IP protocol for transmission, streaming bit rate is upto 15Mbps.
Compliant HDCP
Support RS232 pass through
Support Wide-band IR (38k ~ 56khz)
Support point to point, point to many, many to point, many to many broadcasting network configuration
Support DHCP, switch assign IP for the Transmitter and Receiver automatically
With 3 Bit DIP to choose baud rate
With 6 Bit DIP to manage group ID
With HDMI output for local display on Transmitter
DC 5V 2A power supply, power consumption less than 3W

Specifications

Performance
Protocol	H.264 encoder over TCP/IP
Support Video Format	480i / 480p / 576i / 576p / 720p / 1080i / 1080p @ 60Hz
Support Audio format	LPCM, Audio sampling rate 48KHZ
Streaming Bit Rate	15Mbps
HDCP	Compliant
IR Frequency	38 -56 KHZ
RS232 Baud rate	Default 2400bps, total 8 kinds optional
IP setting & Group ID setting
Default IP	TX: 192.168.1.11; RX: 192.168.1.12
Group ID	Group 00 ~ group 63
Request for Switch / Router	Support IGMP, support DHCP
Connectors on Transmitter
Input	1xRJ45 input
Output	1x HDMI Female port
RS232	DB9 Male port
IR	IR RX port
Environmental & Power Requirements
Operating temperature	-5 to +35 °
Operating Humidity Range	5 to 90%RH (No Condensation)
Power supply	DC 5V 2A
Power consumption	Max 3 watt
Physical
Dimension	120.2×78.6×29 mm
Net Weight	TX: 0.28KG: RX:0.28KG

Package Contents

1x Transmitter
1x Receiver
1x IR-TX
1x IR-RX
1x Manual
2x Power adapters 5V 2A (included)

FAQ

Does this unit work with the new Foxtel iQ3?

Yes. Just make sure your IR emitter is placed in the correct location. See the image below.

How to Playback using VLC player software?

Please note VLC cannot playback videos covered by HDCP.

1. Open VLC player software and select "Media" then "Open Network Stream"

2.Select Network and IP address should be filled in

3. Select Stream in the drop down list at bottom right

7. Click on Next to finish off streaming procedure

Related Products

HDMIIPECORX SPARE RECEIVER FOR HDMIIPECO (Discontinued)

Spare receiver for

HDMIIPECO 07351062

Related Products

HDMIIPECO HDMI OVER ETHERNET EXTENDER

HDMIIPPRO HDMI OVER IP EXTENDER WITH POE

Features

Considering extending your HDMI source over single Cat5E/Cat6 cables?

This HDMIIPPRO HDMI over IP Extender uses advanced H.264compression type which transfers signal using lower bandwidth thus tranmit more smoothly.

It supports 120m over single Cat5E/6 cable at point to point. It also supports point to many and many to many transmition over ethernet switch.

A great HDMI over IP solution for meeting room, class room and home etc.

The PRO version supports remote control and can be powered by POE.

Using H.264 compression encoding, Supports resolution up to 1080p@60Hz
Transmit up to 120m over single Cat5E/6 cable with 1 looping HDMI output
With IR remote for source selection. LED front panel showing group ID.
Complies with TCP/IP protocol, streaming bit rate is up to 15Mbps
Supports LPCM audio format
Supports DHCP for easy IP address assigning
By pass 2 way UART/RS232 (Up to 115200), remote controlcan be used for selecting 8 group baud rate.
Supports one to one, one to many, many to one, many tomany modes.
Can be powered by either power supply or POE
HDCP compliant
Supports PC tool control

FAQs

I am having trouble changing IP address: Please click here for more information
What type of internet switches are ideal to be used with this product?: To ensure the best performance of HDMIIPPRO, a managedgigabit switch with IGMP (Internet group management protocol) snooping function is recommanded for many to many applications.

Packing content

1x Transmitter

1x Receiver

1x IR-TX cable

1x IR-RX cable

1x Manual

4x Mounting Screws

4x Detachable Mounting Ears

2x Phoenix Plugs For RS232 Cable Termination

2x Remote Control

2x 5V 1A Power Supplies

Specifications

Performance
Protocol	H.264 encoder over TCP/IP
Video Format	480i/480p/576i/576p/720o/1080p@60Hz
Audio Format	LPCM, Audio sampling rate 48kHz
Bit Rate	15Mbps
HDCP	Yes
IR Frequency	38-56 kHz
RS232 Baud Rate	Default 2400bps-8 options
IP Setting& Group ID Setting
Default IP	TX: 192.168.1.11; RX: 192.168.1.12
Group ID	Group 00-Group 63
Switch/Router Requirements	Supports IGMP, DHCP
Transmitter Connections
Input	1x HDMI socket
Output	1x RJ45 output, 1x HDMI looping output
RS232	Phoenix RS232 port
IR	IR TX port (supports 38k-56k Hz)
IR	IR Ext port (supports 38kHz)
Receiver Connections
Input	1x RJ45 input
Output	1x HDMI socket
RS232	Phoenix RS232 port
IR	IR RX port (supports 38k-56kHz)
IR	IR Ext port (supports 38kHz)
General
Operating Temperature	-5 – 35°C
Operating Humidity Range	5 to 90% RH
Power Supply	DC 5V 1A
Power Consumption	Max 3 watt
Dimension	TX: 119×79.5x28mm; RX: 119×79.5x28mm
Net Weight	TX: 028 kg; RX: 0.28 kg

Related Products

HDMIIPPRORX SPARE RECEIVER FOR HDMIIPPRO

Features

Spare receiver for HDMIIPPRO

FAQs

I am having trouble changing IP address: Please click here for more information

Related Products

HDMIIPPRO HDMI OVER IP EXTENDER WITH POE

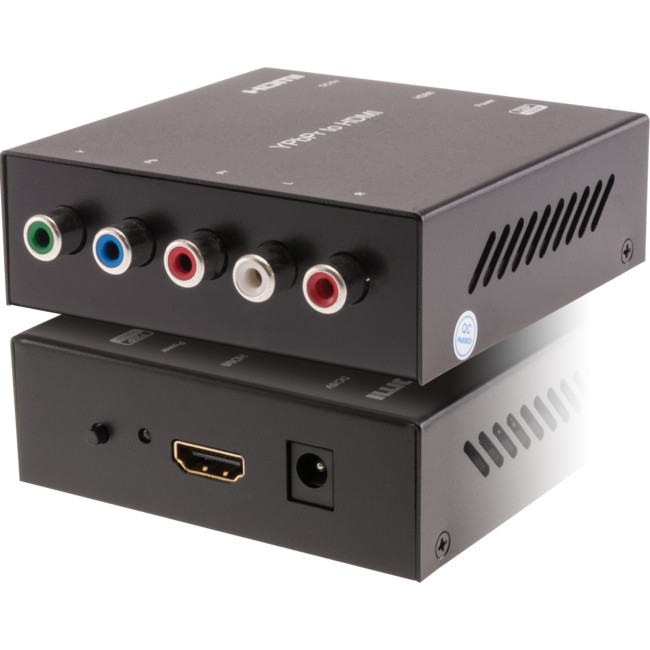

YH02 YPBPR STEREO TO HDMI CONVERTER

Features

Easy to use: Install in seconds, no need for user configuration
Converts Component (YPbPr) and Stereo Analogue audiointo HDMI
- Upscales Component resolutions to 1080P HDMIwith PCM audio
HDCP compliant
Includes 5V power supply

Specifications

Operating Temperature range: -15 to +55°C (-41 to +95°F)
Operating temperature range: -5 to +35°C (-41to +95°F)
Operating humidity range: 5 to 90 % RH (no condensation)
Power Consumption: 1 Watts (max.)
Power Supply: 5VDC
Dimensions: 95mmW x 29mmH x 87mmD
Weight: 190g

Downloads

pdf Pro.2 HDMI Converters Range sell sheet

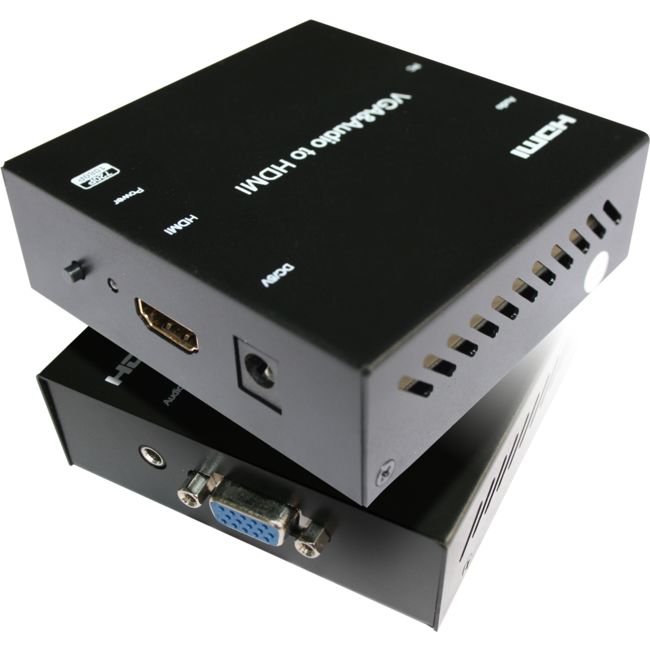

VH03 VGA STEREO TO HDMI CONVERTER

Features

The VH03 upscales VGA to 720p/1080P (user-selectable).

Converts computer VGA video signal and audio to HDMI output
Hardware conversion, plug and play without software or drivers
HDMI output: 720P or 1080P (output selectable via push-button)
HDCP 1.1 protocol compliant
LED power indication

Specifications

.rpg_table { border-collapse: collapse } .rpg_table th, .rpg_table td { padding: 5px; } .rpg_table td, .rpg_table th { text-align: left; vertical-align: top; border-top: solid 1px #cccccc; border-bottom: solid 1px #cccccc; } .rpg_table th, .rpg_table .header { font-weight: bold; text-align: left } .rpg_table th[align=center], .rpg_table td[align=center] { text-align:center; }

HDMI resolution	HDMI 720p@50/60Hz or 1080P@50/60Hz
Transmission bandwidth	5.1Gbps (Max)
Input Video signal	0.5~1.5Volts p-p
Output DDC signal	5.0Volts P-P (TTL) Working
Power	1 Watt
Power adapter	Input: 100~240V AC (50/60Hz) Output: 5VDC / 1A
Operating Temperature range	(-15 ~ +35°C)
Operating Humidity	5 to 90%RH (No condensation)
Dimension (L×W×H)	95 × 87 × 29mm
Weight	190g

Downloads

pdf Pro.2 HDMI Converters Range sell sheet

USB2HDMI USB TO HDMI ADAPTOR (Discontinued)

Add up to 6 extra monitors or displays to your computer or add an HDMI (with audio) link between your computer and your home entertainment system.

Features

Supports HDMI Audio
Resolution supports up to 1920x1080Pixles (1080p) output
Works with Windows, Mac, and Linux
Desktop modes supported:
- Mirror / Clone Main display
- Extend / Span Desktop left, right, above, orbelow
- Display output be rotated left, right, or upside-down
USB 2.0 Powered; Ultra Low Power
HD TV or Projector Compatible
Standard and Widescreen ratio aspects (4:3 and 16:9)
Uses a virtual driver
Stackable by design with a small footprint
Completely silent operation
Onboard power and status indicator LEDs
Portable, making it easy for traveling
VESA Compliant

Applications

Office workstation
- View your large spreadsheets across two screens with continuous display
- Multitask more effectively without overlapping windows
- Edit on one screen while surfing the Internet Information on the other
On the road
- Do multiple screen presentations without bringing another computer
- Easily provide multiple screen exhibitions in a trade show
Graphic workstation
- Use second display for palettes/tools
- Get a panoramic view of large documents
Editing workstation
- Type documents on one screen while viewing reference material on the other
- Compare two documents simultaneously across two screens
Financial analysis
- Have one monitor per data stream
- View charts and live data at the same time
Entertainment
- View video/TV on one screen and reviews on the other
- Get additional perspectives when playing games
Security
- View a seperate CCTV camera stream on each monitor
- Can playback recording while live stream still visible on other monitor

Package Content

1x USB Graphic Adapter
1x Driver CD
1x USB Cable
1x Quick Installation Guide
1x DVI to HDMI Adapter

System Requirements & Support

DisplayLink software can be used on PCs, from Notebooks, Notebooks/Laptops to Desktops. The driver will run on processors ranging from Atom N270 based PCs, basic single Core CPUs, and of course the latest Dual, Quad Core and Corei3 / i5 / i7 CPUs.

The performance of the software is dependent upon the processing power available, as well as the operating system in use. More capable systems offer higher performance.

DisplayLink software supplied is for PCs running one of the following Windows operating systems:

Windows 8/8.1 (32-bit or 64-bit)
Windows 7 (32-bit or 64-bit)
Windows Vista with Service Pack 1 or 2 (32-bit or 64-bit)
Windows XP home or Professional (including Tablet edition) with Service Pack 2 or 3
Windows Server 2003, 2008 and 2008 R2
Windows 2000 with Service Pack 4

Note: 64-bit editions of XP are not supported

Manufacturer’s support page is: http://www.displaylink.com/support
Mac OS X support and drivers can be found at http://www.displaylink.com/mac
Linux support can be found at http://libdlo.freedesktop.org/wiki/ or http://www.displaylink.org

USB3HDMI USB 3.0 TO HDMI ADAPTOR

Features

USB3HDMI is the replacement for USB2HDMI. It is a useful tool to connect multiple displays to your PC via USB port. It has improved speed by using USB3.0 connection and also back compatible with USB2.0. Now it supports up to 2K resolution (2560x 1440)

Utilizing 5Gbps Super Speed USB3.0 as a display interface
(Plug and Display) Easily connect multiple displays to your Laptop, Macbook or Desktop PC in minutes. (One adapter per display required)
Mirror or Extend large Desktop displays to any HDMI monitor or Projector.
Expand your workspace and increase your productivity
Support up to 2K resolution up to 2560x 1440
Robust built-in USB 3.0 cable to maximize durability.Built-in cable is backward-compatible with USB 2.0
USB powered – No external power adapter required
Supports Windows XP/7/8/10, Windows Vista 32 and 64 bit, Mac OS X
