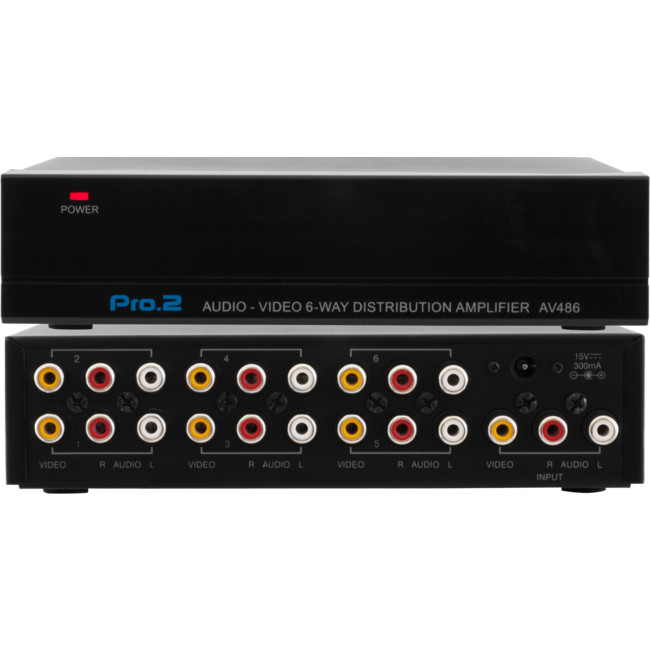

AV486 6 WAY DISTRIBUTION AMPLIFIER

1-in 6-out composite AV Distribution Amplifier

Audio/​Video distribution amplifier that provides stereo audio plus composite video to six outputs. Suitable for extra television screens and distributing AV signals from a single source (ie. DVD players, VCRs etc.).

  • Input: RCA Video, RCA Audio Left & Right
  • 6 Composite Video + Stereo Audio Outputs
  • Ideal for large homes and installations
  • RCA connections
  • Maintains good transmission quality by ensuring the correct 1 Volt peak to peak signal is maintained
  • Powered by 15V, 300mA AC/​DC adaptor (included)

Specifications:

  • Frequency 20Hz to 10MHz
  • Gain -1dB to +2dB
  • Isolation 20dB Min
  • Return Loss 12dB Min
  • Dimension (WxHxD): 180x45x167mm
  • Weight 680g

HDMI2SPECO 2 WAY HDMI SPLITTER 1 IN 2 OUT

Features

  • Simultaneously displays a UItra Hi-Def source on up to two UItra HD displays
  • Supports resolutions up to UItra HD 4Kx2K (3840×2160 @ 30Hz) and 1080p Full HD
  • Supports 36 bit Deep Color
  • Supports resolutions up to Ultra HD 4K x 2K (3840 x 2160@ 30Hz) and 1080p Full HD
  • Supports LPCM 7.1, Dolby TrueHD, Dolby digital Plus, and DTS-HD Master Audio
  • Supports HDMI input/​output cable 10 to 15 meters at 1080p/​8-bit resolution
  • 3DTV pass-through

Specifications

Operating Temperature Range −5 to +35°C
Operating Humidity Range 5 to 90%RH (No Condensation)
Bandwidth frequency 10.2Gbps
Input ports 1 x HDMI (socket)
Output ports 2 x HDMI outputs (socket)
Resolution outputs up to 4Kx2K (3840×2160 @ 30Hz)
Dimensions (LxWxH) 75 x 68 x 25.2 mm
Power consumption 3W (max)
Transmission Distance 15m (Maximum) over standard HDMI cable [26AWG]
Net Weight

128g

HDMI2SP 2 WAY HDMI SPLITTER 1 IN 2 OUT


Pro2’s high quality HDMI splitters take a single signalinput — Bluray, HD TV, PayTV (Foxtel), Xbox 360, PlayStation 3 etc. — and split them to multiple outputs without any signal loss.

Our range provides an ideal solution from a simple homeinstallation to a massive 16 monitor commercial installation. All models come in a robust metal case that ismade up of a solid construction that is built to last.

The Pro2 HDMI splitters are also powered, meaning they also help you extend your cable runs by equalising your signals and reclocking them before passing them onto the displays.

.rpg_table { border-collapse: collapse } .rpg_table th, .rpg_table td { padding: 5px; } .rpg_table td, .rpg_table th { text-align: left; vertical-align: top; border-top: solid 1px #cccccc; border-bottom: solid 1px #cccccc; } .rpg_table th, .rpg_table .header { font-weight: bold; text-align: left } .rpg_table td[align=center], .rpg_table th[align=center] { text-align:center; }
Model HDMI2SP HDMI4SP HDMI8SP HDMI16SP
Code 64510010 64510020 64510030 64510040
Description 2-WAY SPLITTER 4-WAYSPLITTER 8-WAYSPLITTER 16-WAY SPLITTER
HDMI Inputs 1 1 1 1
HDMI Outputs 2 4 8 16
3DSupport Yes Yes Yes
4K x 2K Yes Yes Yes
HDCP Compliance v1.4 v1.4 v1.4 v1.4
HDMI Resolutions 480p /
720p /
1080i /
1080p @ 60 Hz /
4K x 2K @ 24 Hz
480p /
720p /
1080i /
1080p@ 60 Hz /
4K x 2K @ 24 Hz
480i /
576i /
480p /
576p /
720p @ 120 Hz /
1080i @ 120 Hz /
1080p @ 60 Hz /
4K x 2K @ 24 Hz
480i /
480p /
576i /
576p /
720p /
1080i /
1080p @ 60 Hz
Audio Formats LPCM /
Dolby-AC3 /
DTS 7.1 /
DSD
LPCM /
Dolby-AC3 /
DTS 7.1 /
DSD
DolbyTrueHD /
DTS-HD Master Audio
DolbyTrueHD /
DTS-HD Master Audio
Data Transfer Speed 6.75 Gbps
Input Video signal 5.0 Volts P-P (TTL) Single Link 5.0 Volts P-P (TTL) Single Link 0.5-1.0 Volts P-P
DDC Signal: 5 Volts P-P (TTL)
0.5-1.0 Volts P-P
Video Amplifier Bandwidth 140 MHz 140 MHz 140 MHz 140 MHz
Transmission Distance 15 metres using standard 26AWGcable
Power Supply (included) 5V 1A DC 5V 2ADC 5V 3ADC 5V 4ADC
Dimensions 88 x 47 x 25 mm 115 x62 x 25 mm 320 x120 x 35 mm 320 x140 x 42 mm
Weight 135g 190g 1120g 1450g
Power Consumption 3.5 W 5 W 10 W 20 W
Operating Temp. Range -15°C to 55°C (23°F to 95°F)
Operating Humidity Range 5 to 90% RH (no condensation)

Related Products

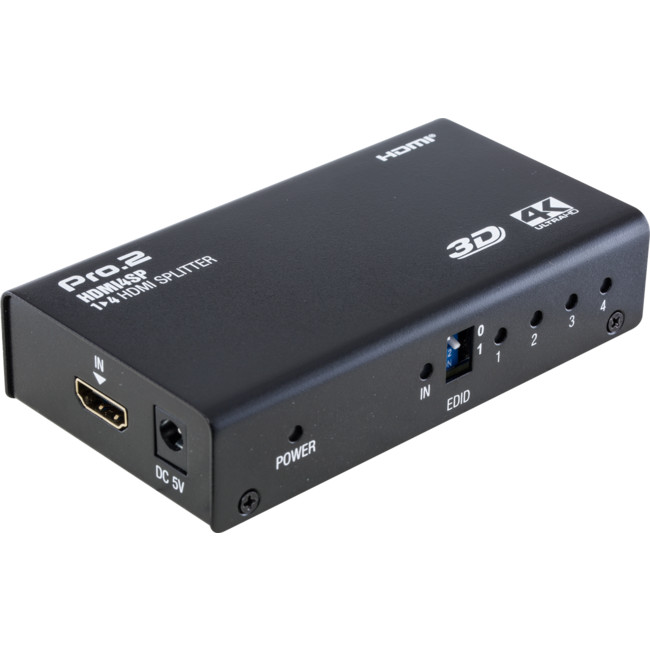

HDMI4SP 4 WAY HDMI SPLITTER 1 IN 4 OUT


Pro2’s high quality HDMI splitters take a single signalinput — Bluray, HD TV, PayTV (Foxtel), Xbox 360, PlayStation 3 etc. — and split them to multiple outputs without any signal loss.

Our range provides an ideal solution from a simple homeinstallation to a massive 16 monitor commercial installation. All models come in a robust metal case that ismade up of a solid construction that is built to last.

The Pro2 HDMI splitters are also powered, meaning they also help you extend your cable runs by equalising your signals and reclocking them before passing them onto the displays.

.rpg_table { border-collapse: collapse } .rpg_table th, .rpg_table td { padding: 5px; } .rpg_table td, .rpg_table th { text-align: left; vertical-align: top; border-top: solid 1px #cccccc; border-bottom: solid 1px #cccccc; } .rpg_table th, .rpg_table .header { font-weight: bold; text-align: left } .rpg_table td[align=center], .rpg_table th[align=center] { text-align:center; }
Model HDMI2SP HDMI4SP HDMI8SP HDMI16SP
Code 64510010 64510020 64510030 64510040
Description 2-WAYSPLITTER 4-WAY SPLITTER 8-WAYSPLITTER 16-WAY SPLITTER
HDMI Inputs 1 1 1 1
HDMI Outputs 2 4 8 16
3DSupport Yes Yes Yes
4K x 2K Yes Yes Yes
HDCP Compliance HDCPRepeater v1.1 v1.2
HDMI Resolutions 480p /
720p /
1080i /
1080p @ 60 Hz /
4K x 2K @ 24 Hz
480p /
720p /
1080i /
1080p@ 60 Hz /
4K x 2K @ 24 Hz
480i /
576i /
480p /
576p /
720p @ 120 Hz /
1080i @ 120 Hz /
1080p @ 60 Hz /
4K x 2K @ 24 Hz
480i /
480p /
576i /
576p /
720p /
1080i /
1080p @ 60 Hz
Audio Formats LPCM /
Dolby-AC3 /
DTS 7.1 /
DSD
LPCM /
Dolby-AC3 /
DTS 7.1 /
DSD
DolbyTrueHD /
DTS-HD Master Audio
DolbyTrueHD /
DTS-HD Master Audio
Data Transfer Speed 6.75 Gbps
Input Video signal 5.0 Volts P-P (TTL) Single Link 5.0 Volts P-P (TTL) Single Link 0.5-1.0 Volts P-P
DDC Signal: 5 Volts P-P (TTL)
0.5-1.0 Volts P-P
Video Amplifier Bandwidth 140 MHz 140 MHz 140 MHz 140 MHz
Transmission Distance 15 metres using standard 26AWGcable
Power Supply (included) 5V 1ADC 5V 2A DC 5V 3ADC 5V 4ADC
Dimensions 88 x 47 x 25 mm 115 x 62 x 25 mm 320 x120 x 35 mm 320 x140 x 42 mm
Weight 135g 190g 1120g 1450g
Power Consumption 3.5 W 5 W 10 W 20 W
Operating Temp. Range -15°C to 55°C (23°F to 95°F)
Operating Humidity Range 5 to 90% RH (no condensation)

Related Products

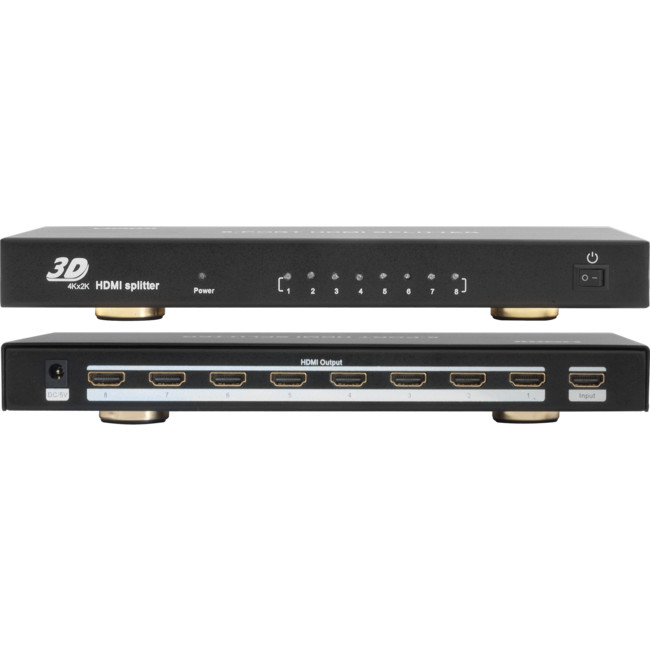

HDMI8SP 8 WAY HDMI SPLITTER 1 IN 8 OUT (Discontinued)


Pro2’s high quality HDMI splitters take a single signalinput — Bluray, HD TV, PayTV (Foxtel), Xbox 360, PlayStation 3 etc. — and split them to multiple outputs without any signal loss.

Our range provides an ideal solution from a simple homeinstallation to a massive 16 monitor commercial installation. All models come in a robust metal case that ismade up of a solid construction that is built to last.

The Pro2 HDMI splitters are also powered, meaning they also help you extend your cable runs by equalising your signals and reclocking them before passing them onto the displays.

.rpg_table { border-collapse: collapse } .rpg_table th, .rpg_table td { padding: 5px; } .rpg_table td, .rpg_table th { text-align: left; vertical-align: top; border-top: solid 1px #cccccc; border-bottom: solid 1px #cccccc; } .rpg_table th, .rpg_table .header { font-weight: bold; text-align: left } .rpg_table td[align=center], .rpg_table th[align=center] { text-align:center; }
Model HDMI2SP HDMI4SP HDMI8SP HDMI16SP
Code 64510010 64510020 64510030 64510040
Description 2-WAYSPLITTER 4-WAYSPLITTER 8-WAY SPLITTER 16-WAY SPLITTER
HDMI Inputs 1 1 1 1
HDMI Outputs 2 4 8 16
3DSupport Yes Yes Yes
4K x 2K Yes Yes Yes
HDCP Compliance HDCPRepeater v1.1 v1.2
HDMI Resolutions 480p /
720p /
1080i /
1080p @ 60 Hz /
4K x 2K @ 24 Hz
480p /
720p /
1080i /
1080p@ 60 Hz /
4K x 2K @ 24 Hz
480i /
576i /
480p /
576p /
720p @ 120 Hz /
1080i @ 120 Hz /
1080p @ 60 Hz /
4K x 2K @ 24 Hz
480i /
480p /
576i /
576p /
720p /
1080i /
1080p @ 60 Hz
Audio Formats LPCM /
Dolby-AC3 /
DTS 7.1 /
DSD
LPCM /
Dolby-AC3 /
DTS 7.1 /
DSD
Dolby TrueHD /
DTS-HD Master Audio
DolbyTrueHD /
DTS-HD Master Audio
Data Transfer Speed 6.75 Gbps
Input Video signal 5.0 Volts P-P (TTL) Single Link 5.0 Volts P-P (TTL) Single Link 0.5-1.0 Volts P-P
DDC Signal: 5 Volts P-P (TTL)
0.5-1.0 Volts P-P
Video Amplifier Bandwidth 140 MHz 140 MHz 140 MHz 140 MHz
Transmission Distance 15 metres using standard 26AWGcable
Power Supply (included) 5V 1ADC 5V 2ADC 5V 3A DC 5V 4ADC
Dimensions 88 x 47 x 25 mm 115 x62 x 25 mm 320 x 120 x 35 mm 320 x140 x 42 mm
Weight 135g 190g 1120g 1450g
Power Consumption 3.5 W 5 W 10 W 20 W
Operating Temp. Range -15°C to 55°C (23°F to 95°F)
Operating Humidity Range 5 to 90% RH (no condensation)

Related Products

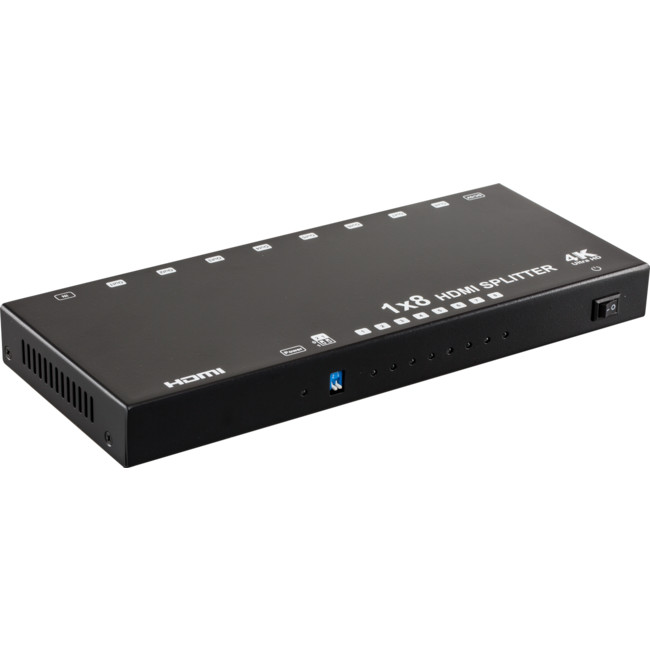

HDMI8SPEDID 8 WAY HDMI SPLITTER WITH EDID

Features:

PRO2 1 in 8 out HDMI splitter splits your HDMI source into 8 different outputs. Built-in EDID switch has 4 EDID modules to select from 2 bit dip switch. It supports resolution up to Ultra HD 4K x 2K (3840×2160 @ 60Hz YUV 4:2:0)

  • Distribute 1 Ultra HD source to 8 Ultra HD displays
  • Supports resolution up to Ultra HD 4Kx2K (3840×2160 @60Hz YUV 4:2:0)
  • Supports LPCM 7.1, Dolby TrueHD, Dolby Digital plus, DTS-HD master audio
  • With 2 bit DIP switch to select 4 build-in EDID modules
  • EDID includes: Mixed EDID, Copy EDID, Default 1080p output, Default 4Kx2K output
  • Supports bandwidth up to 10.2 Gbps
  • Supports deep colour 36 bit
  • Supports 3D
  • HDCP compliant
  • DC 5V 1A power supply
  • Size: 270 (L) x110 (W) x27.5 (H) mm

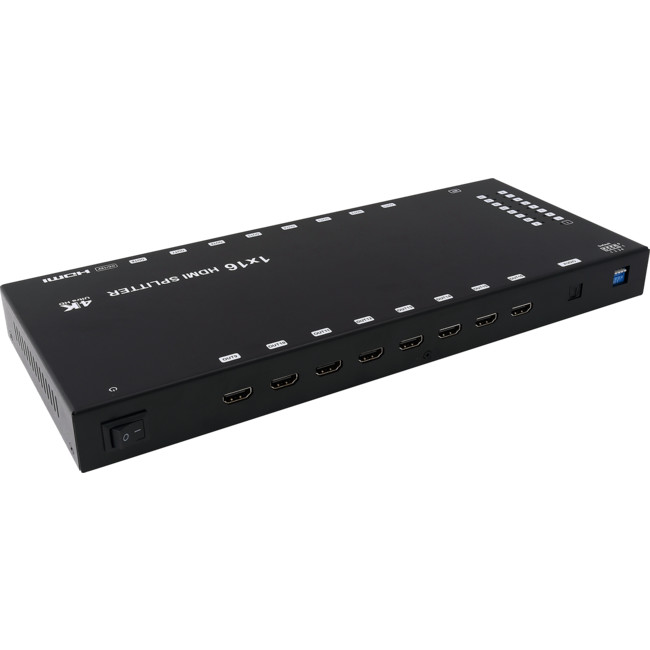

HDMI16SPEDID 16 WAY HDMI SPLITTER WITH EDID

Features

This is the latest 1×16 HDMI splitter with Audio extraction, supports 3D 4Kx2K. It offers HD video solution for places such as super market, shopping mall; HDTV, STB, DVD and projector factory; data control center; conference rooms; education and training; luxurious house; home theaters etc.

  • 1×16 HDMI Splitter, with 1xHDMI input, 16xHDMI outputs, 1x Audio output via optical.
  • Resolution reach up to 4Kx2K.
  • Advanced EDID management for rapid integration of sources and displays.
  • With Audio extraction via optical cable.
  • Support 3D format.
  • Supports LPCM7.1, Dolby TrueHD, Dolby Digital plus DTS-HD Master Audio.
  • Supports 36 bit deep colour display.
  • Bandwidth: 9Gbps (Maximum).
  • DC 12V 2A Power supply (inluded).

Typical Application

Specifications

Operating Temperature Range -5 to +35°C
Operating Humidity Range 5 to 90%RH (No Condensation)
Input Video Signal 1 HDMI Input
Input DDC Signal 12 volts p-p (TTL)
Bandwidth 9Gbps (Maximum)
Video Format Supported DTV / HDTV:480i / 576i / 480P / 576P / 720P / 1080i / 1080P / 4Kx2K
3D video support
Video Output 16 HDMI outputs/​Audio output via optical
Support Video Colour Format Deep colour 36bit
Support Audio Format LPCM7.1 Dolby Digital, Dolby Digital plus, Dolby TrueHD, DTS-HD Master Audio
Power consumption 16watts (Maximum)
Dimension (LxWxH) 350x147x40mm
Net Weight 1450g

Note: Specifications are subject to change without notice. Mass and dimensions are approximate.

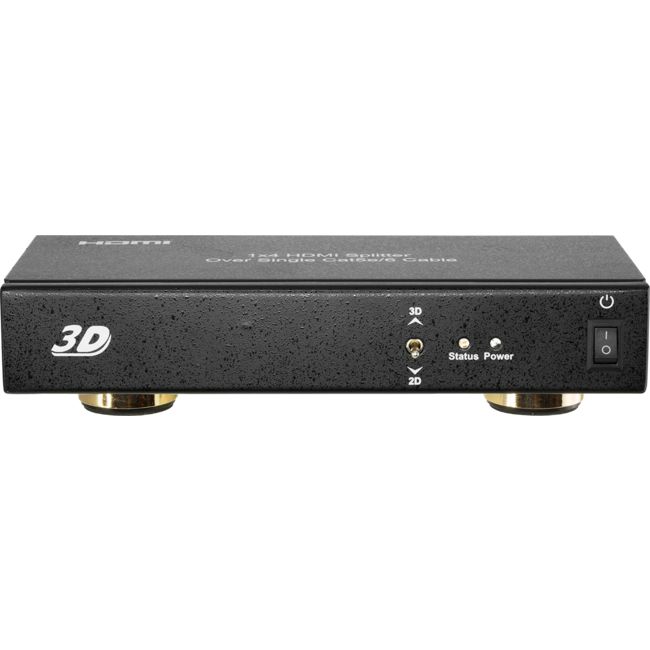

H4SPC5B 4-WAY HDMI SPLITTER OVER UTP

Features

  • Distributes 1 input HDMI signal to 4 identical synchronised UTP outputs
  • Use single Cat5e/​6 transmission distance up to 50m under 1080P @ 8-bit with 3D (the transmission distance for the receiver also need up to 50m)
  • Supports Resolutions up to 1080p @ 60Hz
  • Supports High Definition Audio: Dolby TrueHD, DTS-HD Master Audio
  • Supports 30/​36-bit Deep Colour display
  • Supports 3D technology
  • DC 5V power

Specifications

Video Amplifier Bandwidth 140 MHz
Input Video Signal 0.5- 1.0 Volts P-P
Input DDC Signal 5 volts p-p (TTL)
Data transfer speed rate 6.75Gbps (Maximum)
Video Format Supported VGA: 640×480, 800×600, 1024×768, 1080×1024
DTV / HDTV: 480i / 576i / 480P / 576P / 720P / 1080i / 1080P
3D video support
Vertical Frequency range 60Hz
Support Video Color Format xv-YCC / Deep Colour 36-bit
Support Audio Format DTS-HD / True-HD / LPCM7.1 / AC3 / DTS / DSD
Transmission Distance 1080P 8-bit 50m
Over single Cat5e or Cat6 cable / 24 AWG / Solid
Power consumption 12watts (Maximum)
Operating Temperature Range -5 to +35° (+23 to +95°)
Operating Humidity Range 5 to 90% RH (No Condensation)
Dimension (L×W×H) L300 x W155 x H65mm
Net Weight 490g

Related Products

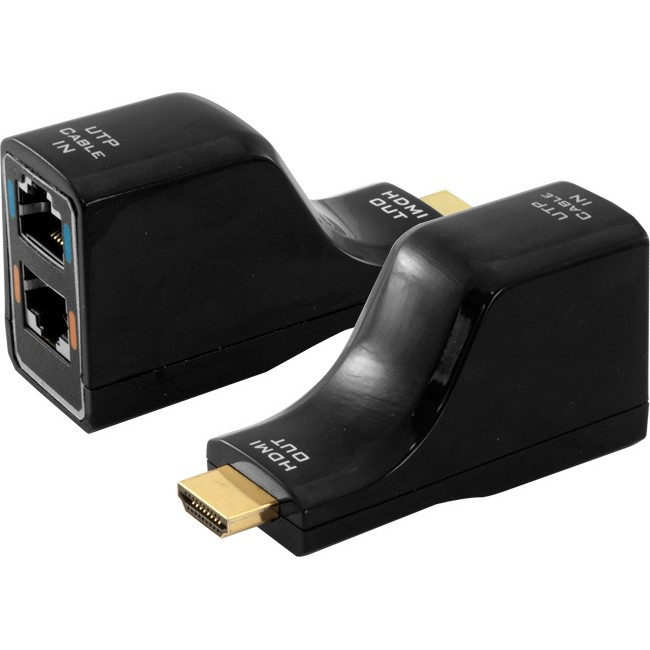

H4RX2 RECEIVER2 FOR H4SPC5 SPLITTER

Features:
  • HDMI 1.3, HDCP 1.1 compliant.
  • Use UTP LAN cable (Cat5E/​6) to substitute HDMI cableto achieve long distance transmission.
  • Follow the standard of IEEE-568B.
  • Transmission distance reaches up to 30 meters underthe video format of 1080P.
  • Auto-adjustment of feedback, equalization and amplify, the user does not need to care about the length of the cable.
  • Compact size.
  • Signaling rates up to 2.25Gbits in support of 1080Pdisplay.
  • Each port supports HDMI
  • No need for extra power supply
  • Size width 46 x height 83 x length 23mm

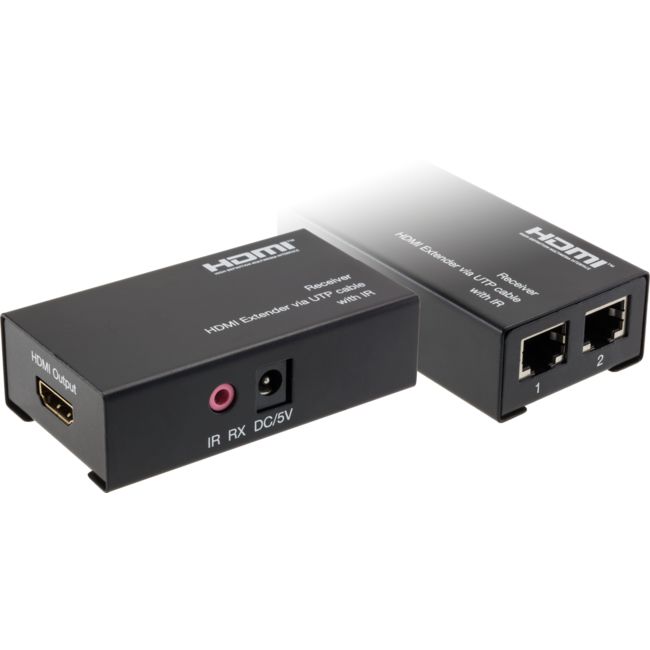

H4RX3 RECEIVER FOR H4SPC5 SPLITTER

Features

    1. Each pack includes one receiver.
    2. With IR Control function, it allows you control back thesource at the end of destination.
    3. Use Dual UTP cable (Cat5E / 6) to substitute HDMI cable to achieve long distance transmission, the UTP Cable followsthe standard of IEEE-568B.
    4. Transmission distance reaches up to 50 meters under the video format of 1080P.
    5. Auto-adjustment of feedback, equalization and amplify.
    6. Signaling rates up to 2.25Gbits in support of 1080P display.
    7. With ESD protection inside.
    8. DC 5V Power.

Specifications

    Operating Temperature Range

    -5° to +35°

    Operating Humidity Range

    5 to 90%RH (No Condensation)

    Input Video Signal

    0.5-1.0 Volts P-P

    Input DDC Signal

    5 volts p-p (TTL)

    Support Video Format

    DTV / HDTV: 480i / 576i / 480P / 576P / 720P / 1080i / 1080P

    HDMI Output

    Compliant with HDMI 1.3,HDCP 1.1

    Support Audio Format

    DTS-HD Master Audio and Dolby true-HD etc.

    Transmission Distance

    1080P 8-bit 50m (Maximum) over CAT5e / CAT6 4AWG/​Solid
    (recommend to use 23AWG Cat6 cable)

    Power consumption

    3watts (Maximum)

    Dimension (L × W × H)

    83 x 46 x 23mm

    Net Weight

    213g (Pair)

    IR wavelengh & frequency

    Wavelengh: 940nm, frequency: 38kHz

      Note1: Specifications are subject to change without notice. Mass and dimensions are approximate.
      Note2: When in 36Bits deepcolor mode, we suggest you toset the HDMI source device output to 1080i or 720p.

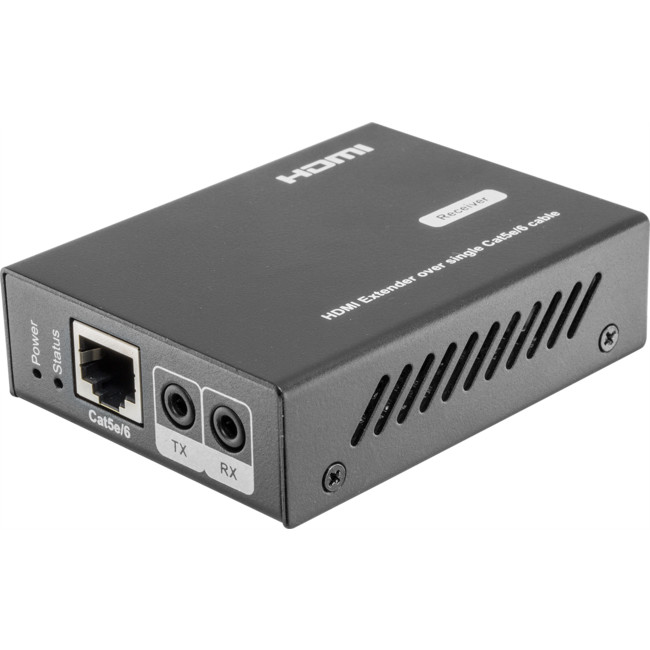

SPC5RX HDMI CAT5 SPLITTER RECEIVER

Features:

SPC5RX is the bridge between any PRO2 SPC5L series HDMI over UTP transmitter and your HD display using a single CAT5E/​CAT6 cable. Using the included IR transmitterand receiver, you are able to control your source device too.

  • Wide-band bidirectional IR control (36-56kHz)
  • 3D full HD 1080p
  • Power supply, IR receiver, emitter and mounting ears included
