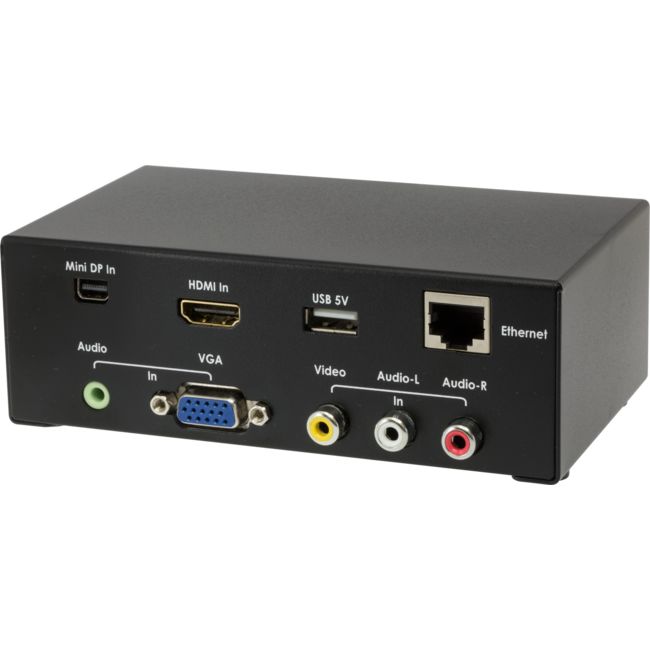

4 Inputs to HDMI Converter Box allows 4 different sources, including Analog video & audio, VGA +3.5mm audio, mini Displayport & HDMI input and convert to HDMIsignal output. This model has source auto detect function, so the user can switch the input source without press the button. The HDMI output resolution can be up to 1080p. This converter box is very convenient for user to have different audio / video devices to connect their TV / Monitor with HDMI port.
Features
-
Convert 4 different sources to hdmi:
- Analog Audio & Video
- VGA + 3.5mm audio
- Mini displayport
- HDMI input
- User is able to charge their device through USB port.
- Support Ethernet by-pass function.
- Source auto detect function.
- The output resolution is up to 1080p.
Specifications
| I/O CONNECTOR | |
| Input | 1 x Red, White, Yellow Triple Phono |
| 1 x 15 pin High density D-type | |
| 1 x 3.5mm Jack | |
| 1 x Mini DisplayPort connector | |
| 1 x HDMI 19PIN connector | |
| 1 x RJ45 Jack | |
| 1 x DC Jack | |
| Output | 1 x HDMI 19 Pin connector |
| 1 x RJ45 Jack | |
| MECHANICAL | |
| Dimensions (H-W-D) | 45x80x137mm |
| Weight | 0.5kg |
| WARRANTY | |
| Limited Warranty | 1 Year Parts and Labor |
| ENVIRONMENTAL | |
| Operating Temperature | +0 to +40° C (+32° to 104° F) |
| Operating Humidity | 10% to 85% (Non-condensing) |
| Storage Temperature | -20° to +60°C (-4° to +140° F) |
| Storage Humidity | 10% to 85% (Non-condensing) |
| POWER REQUIREMENT | |
| 12V2A | |
| PACKAGE | |
| 4 Inputs to HDMI Output converter boxX 1 | |
| Power adapter X 1 | |
| User manual X 1 | |
| White Box X 1 | |
