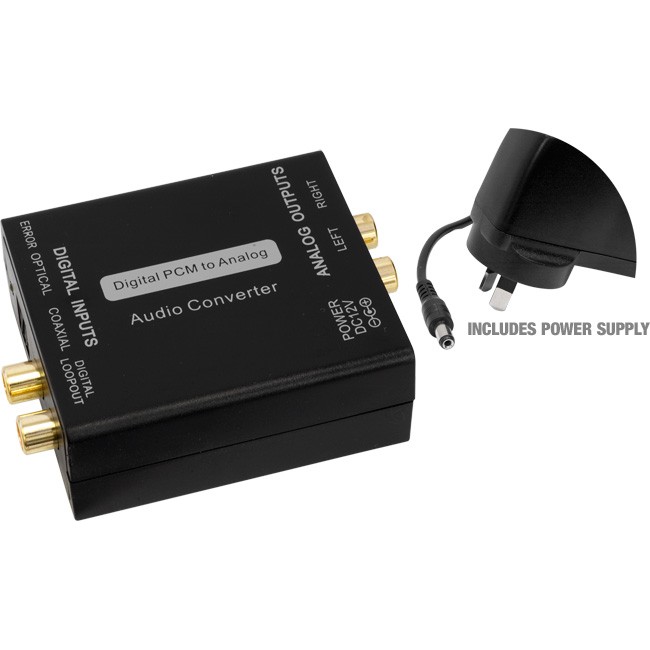

• Digital inputs: Toslink optical or S/​PDIF coaxial
• Analog outputs: Left & Right
• Digital loopout

Note: Due to international patents, certain sound formats, like Dolby, are not supported. Certain televisions (i.e. Samsung Series 6) do not allow the user to change sound options. This might mean that the PRO1259 cannot convert ‘patented’ sound formats affecting certain HD television channels. All standard definition television channels should be unaffected.

• Digital Input Type: Coaxial & Optical
• Support Digital Audio Format: LPCM
• Input Impedance: 75 ohms
• Minimum Load Impedance: 10K ohms
• Frequency Response: 32 – 192KHz sample rate

Note: Due to international patents, certain sound formats, like Dolby, are not supported. Certain televisions (i.e. Samsung Series 6) do not allow the user to change sound options. This might mean that the PRO1298 cannot convert ‘patented’ sound formats affecting certain HD television channels. All standard definition television channels should be unaffected.

• TV optical output to external analog input speakers
• Computer to external speakers with L&R RCA inputs
• CD players to analog input sound system

• Built-in Op-amp with adjustable level control
• Bridge legacy sound system with digital sources

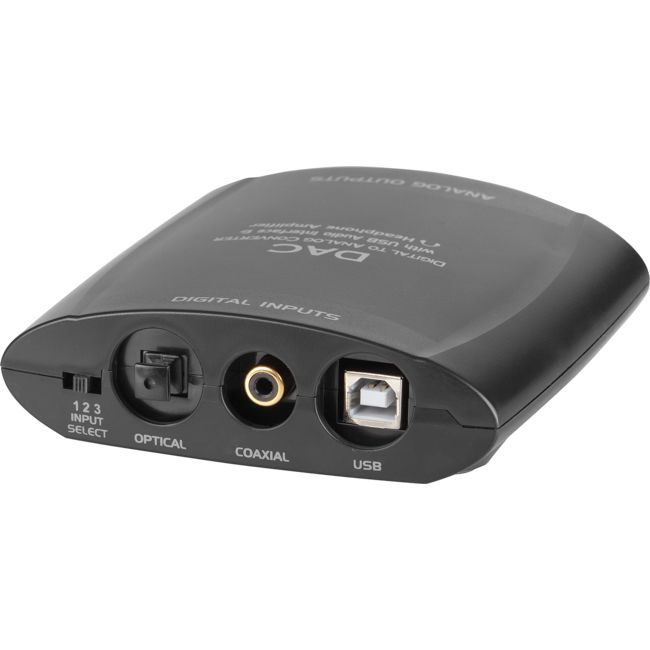

• Support up to 24bit / 192kHz via to slink optical andSPDIF coaxial and USB interface
• Plug and play with Windows 7, Windows XP and Windows Vista
• Requires no additional drivers or software



• Inputs: USB / Toslink (Optical) / S/​PDIF coaxial (Switchable)
• Outputs: left and right stereo audio RCA and 3.5mm stereo headphone jack (Built-in OP headphone amplifier)
• Bit Rate: 16-bit to 24-bit
• Sample Rate: 32kHz / 44.1kHz / 48 kHz / 96kHz / 192kHz (via toslink.optical)
• 32kHz / 44.1kHz / 48 kHz / 96kHz (via USB)
• Power supply: 5VDC 1A SM510USB (NOT included)
• Dimensions: 111 (W) x 105 (D) x 30 (H) mm

* Note: This DAC accepts 2 channel digital audio only, and works with any PCM stream with DolbyDigital or DTS disabled.

The CSH01 RCA Composite video and S-video to HDMI Scaler takes either Composite Video or S-Video as input and converts it to HDMI 1080P. It allows older analog devices to be integrated into an HD home theater system. Plug and Play, no software driver is needed. Perfect for connectingold composite video devices to a modern computer monitor via HDMI!

• Up-scales Composite Video or S-Video up to full HD 1080P
• HDMI output is optional at 720P or 1080P
  • HDMI Signal includes Stereo PCM Audio
• Input video systems – NTSC and PAL is automatically detected and adjusted
• HDMI Input enables switcher functionality and means noHDMI input on your TV is lost!
• HDMI, Composite Video and S-Video can remain connectedat the same time, and be switched by a button push!
• Composite Video and S-Video share the same audio input

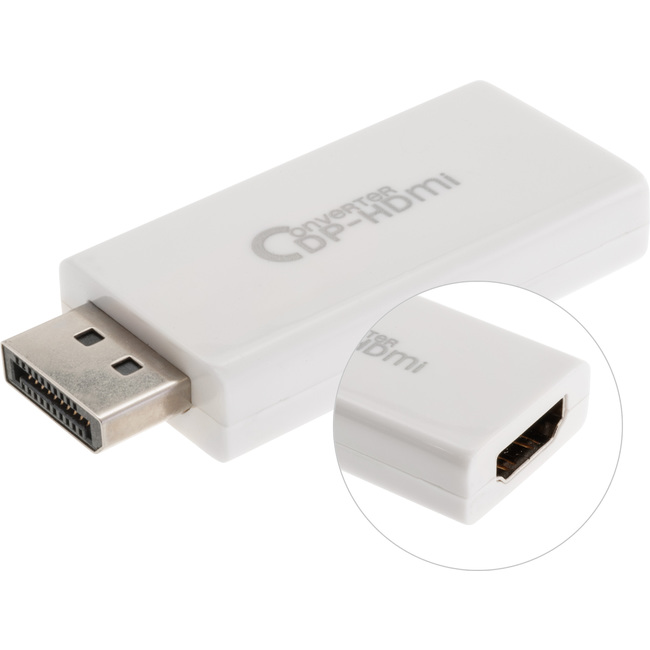

• DisplyPort input (plug), HDMI output (socket)
• Just Plug & Play!
• Compliant with DisplayPort 1.1
• Full support for DisplayPort Link Training
  • The handshake process through which the display capabilities are determined
• Signaling rates up to 2.5Gbits in support of 1080P display
• Enjoy a panoramic gaming and entertainment experience
  • Works with AMD Radeon 5000 Series Eyefinity Technology!
  • Supports multiple independent display outputs simultaneously
• No need for external power supply

Love your old TV and don’t want to throw it away to watchHDMI content or maybe your TV only has one HDMI input? Or doyou just want to add an HDMI source to a CBVS (composite video) distribution system with out the full upgrade? The HCS01 converts the digital HDMI signal into the old and familiar Yellow, Red and White (Composite Video/​CBVS and Stereo Audio) analogue AV signals for use with legacy AV devices.

Supporting PAL and NTSC outputs (user switchable), and HDMI signals up to 1080P, you’ll have no problem connecting your new HDMI source to your analogue equipment.

Features:

• Converts HDMI to Analogue Composite Video and Stereo Audio
• Support NTSC and PAL output formats (switchable)
• HDMI input formats supported:
  • 480P
  • 576P
  • 720P
  • 1080I
  • 1080P @ 60Hz
• HDCP support
• Inputs:
  • 1x HDMI
• Outputs:
  • 1x RCA (CBVS/​Composite)
  • 2x RCA (Audio L & R)

Please Note: the HCS01 HDMI to AVConverter will only convert Stereo PCM audio to analogue stereo output. Multi-channel and proprietary formats (eg Dolby and DTS) are not supported!

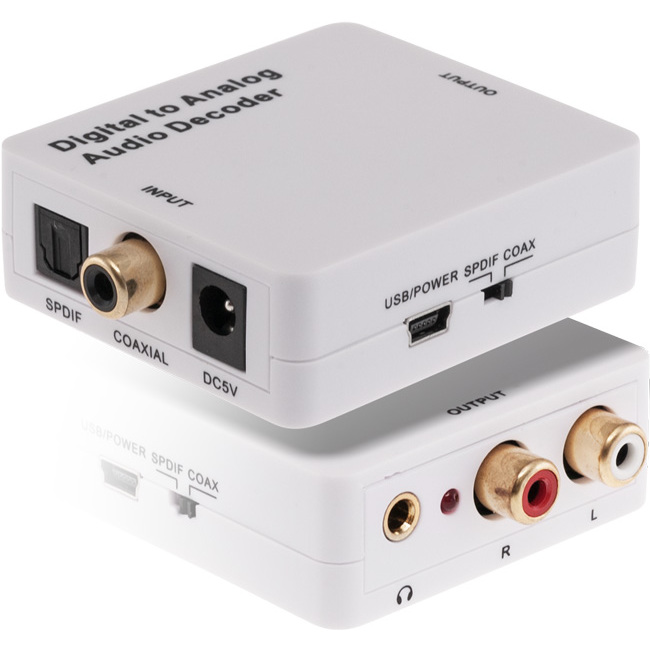

The Digital to Analog Audio Decoder uses a 24-bit / 96 kHz Digital Receiver & DSP, and a 192 kHz/​24bit ADC toconvert digital audio formats to high-quality stereo analogue audio. It supports Dolby Digital (AC3), Dolby ProLogic, DTS, PCM and other multi-channel digital audio formatsource formats. The optical or coaxial inputs allow easy connection to any equipment with digital output, and even features a 3.5mm stereo socket for connecting headphones.

• Convert DTS/​AC3 source digital audio to analog 2.0ch stereo audio output
• Multi-channel audio input (SPDIF, Coaxial)
• No need to install drivers
• Portable, flexible, plug and play

Specifications

• Input ports:
  • 1x Toslink/​SPDIF
  • 1x Coaxial
• Output ports:
  • 2x RCA (L/​R)
  • 1x 3.5mm Phone Jack
• Signal to Noise: 120 dB
• Degree of Separation: 85 dB
• Frequency Response: 20 Hz ~ 20 kHz ± 0.5 dB
• Dimensions (mm): 72 (D) x55 (W) x20 (H)
• Weight (g): 40

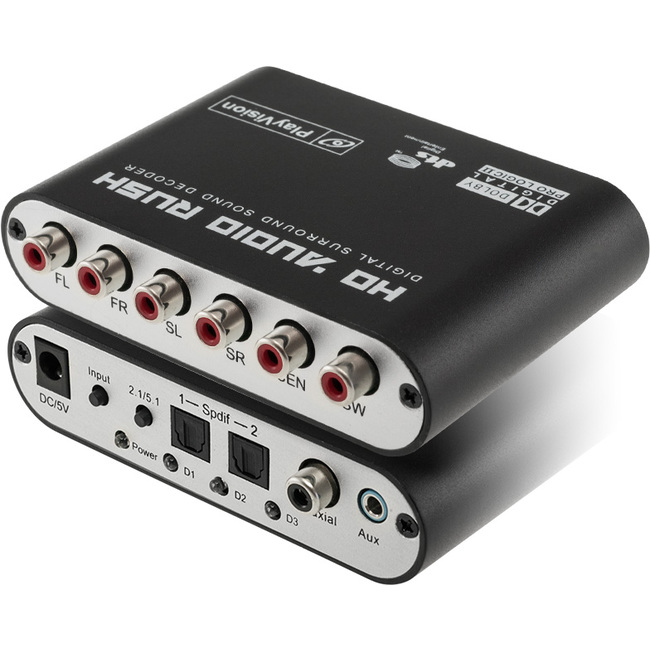

• Convert DTS/​AC3 source digital audio to analog 5.1ch audio output
• Expand 2.0CH Analogue audio up to 5.1CH
• Multi-channel audio input (SPDIF, Coaxial)
• Input selector button
• Output mode selector button
• No need to install drivers
• Portable, flexible, plug and play

• Input ports:
  • 2x Toslink/​SPDIF
  • 1x Coaxial
• Output ports:
  • 6x RCA (L / R / C / RL / RR / SW)
• Signal to Noise: 120 dB
• Degree of Separation: 85 dB
• Frequency Response: 20 Hz ~ 20 kHz ± 0.5 dB
• Dimensions: 105 x 75 x 25 mm
• Max Output Volt: 2.2Vp-p
• Power Supply DC/​5V 1A

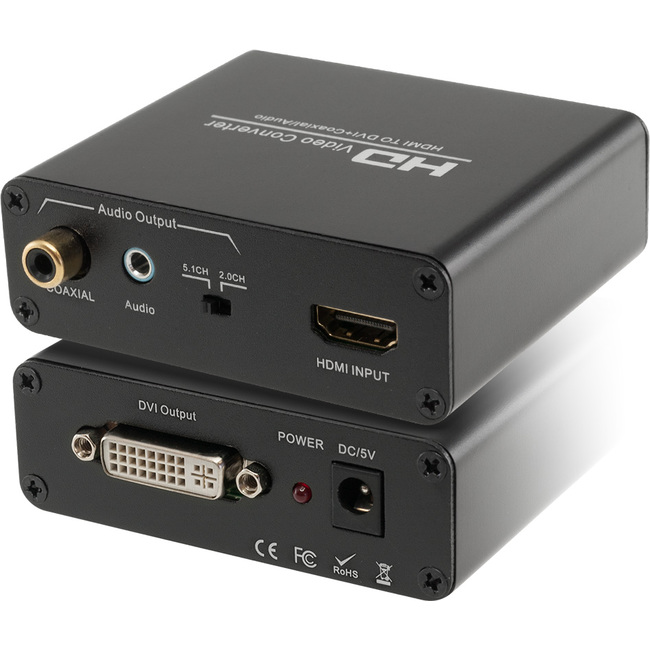

• No drivers required; plug and play
• Converts HDMI to:
  • DVI-D Digital Video Signal
  • Stereo analogue audio (PCM to Analogue conversion only; no Dolby or DTS Decoding)
  • Coaxial digital (S/​PDIF)
  • supports up to 1080p/​60Hz
• 5VDC Power supply included

• Main Unit (HD02ECO)
• Power adaptor
• User Manual

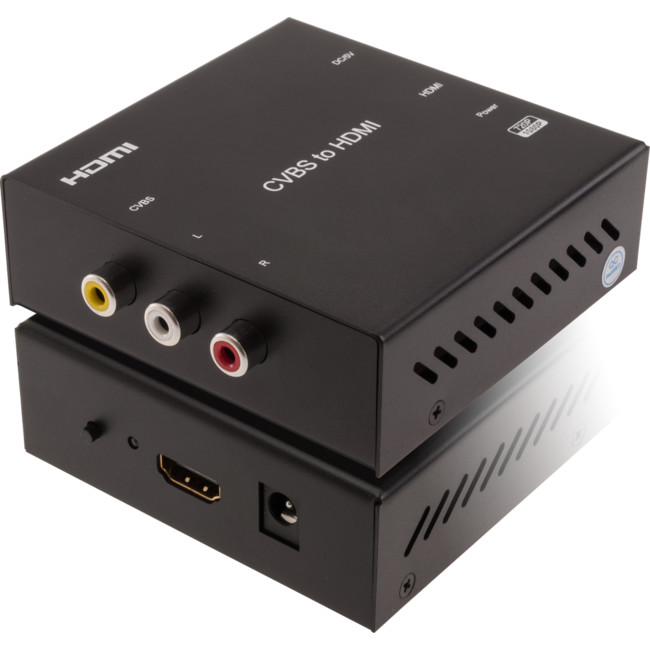

The CH01 RCA Composite video to HDMI Scaler takes Composite Video as input and converts it to HDMI 720P or 1080P. It allows older analog devices to be integrated into an HD home theatre system. Plug and Play, no softwaredriver is needed. Perfect for connecting old composite video devices to a modern computer monitor via HDMI!

• Up-scales Composite Video up to full HD 1080P
• HDMI output is optional at 720P or 1080P
  • HDMI Signal includes Stereo PCM Audio
• Input video systems – NTSC and PAL is automatically detected and adjusted
