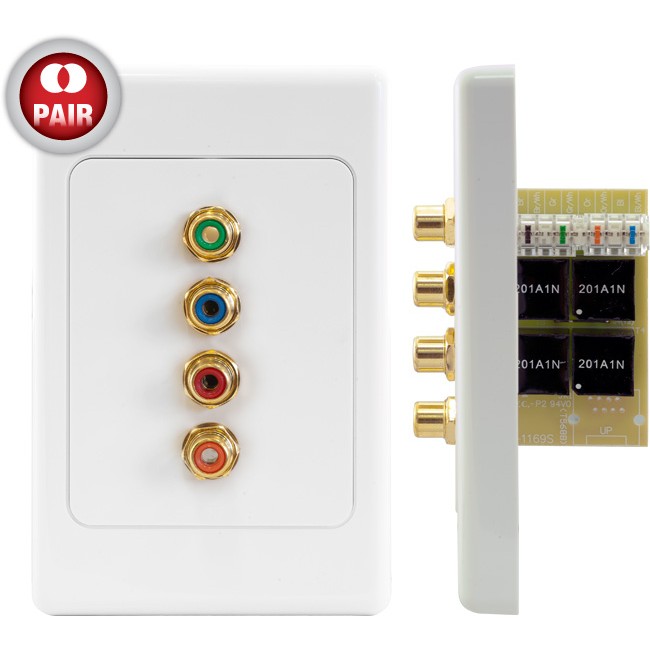

PRO1276WP COMPONENT + STEREO OVER CAT5

Extend the reach of your component video and stereo audio signals using economic CAT5E cable.

Specifications:

Interface:

  • Video: 3 RCA (Y/​Pb/​Pr) sockets; (Green, Blue and Red)
  • Audio: 2 RCA stereo left and right (White and Red)
  • UTP: RJ45

Impedance:

  • video: 75 ohm unbalanced
  • Audio: 600 ohm unbalanced
  • UTP: 100 ohm balanced

Bandwidth:

  • Video: DC-60 Mhz

Distance over CAT5E/​6 UTP cable:

  • 720p video, up to 75 meters (total length, device-to-device)
  • 1080i video, up to 50 meters (total length, device-to-device)

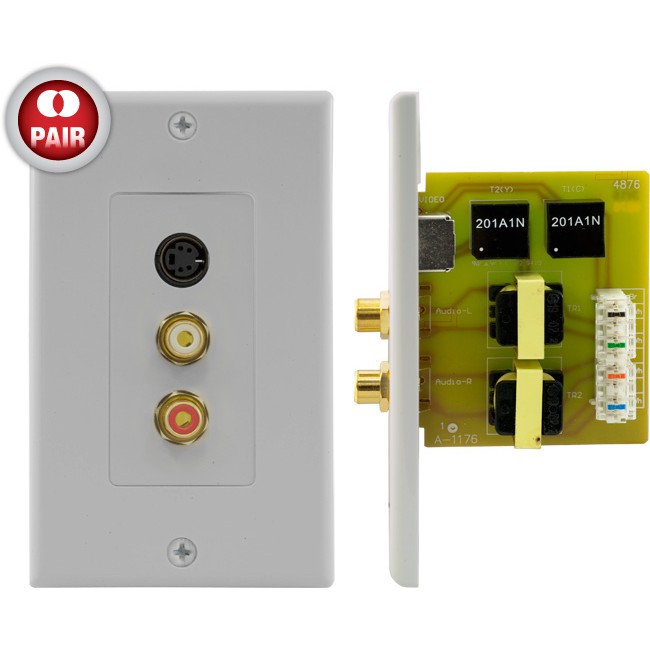

PRO1176 S-VIDEO STEREO AUDIO CAT5 PAIR

PRO1176 In-wall S-Video / Stereo Audio over CAT5extender

This wall plate will provide crystal clear audio and video over long distances utilizing economical CAT5E or higher UTP cable. Sold as a pair.

  • Includes mounting hardware
  • Easy D.I.Y. installation
  • Colour-coded IDC contacts

side view
[ click for larger view ]

Specifications:

Interface:

  • Video: 1x S-Video female connector
  • Audio: 2x RCA inputs for left and right stereo audio
  • UTP: 110-type rear punchdown

Impedance:

  • Video: 100Ω unbalanced
  • Audio: 600Ω unbalanced

Bandwidth:

  • Video: DC ~ 12 MHz
  • Audio: 50 Hz ~ 15 KHz

Distance:

  • Audio / Colour video: Category 5e UTP cable up to 100 meters

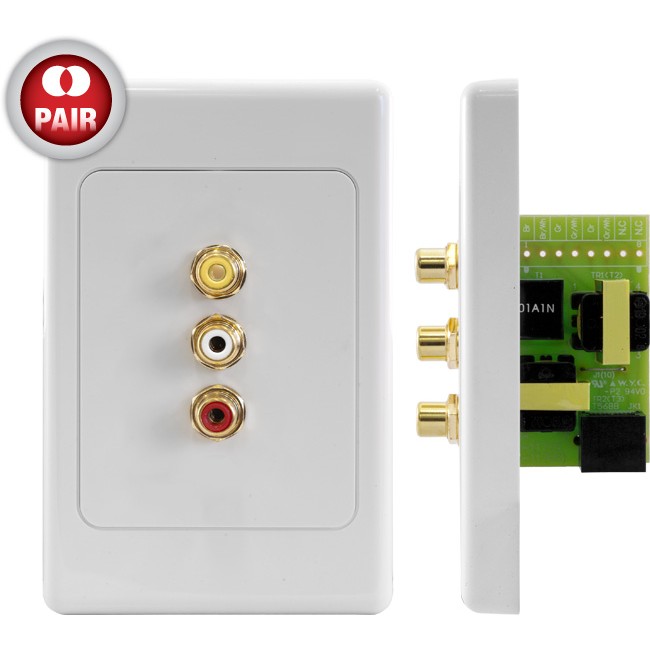

PRO1177 COMPOSITE STEREO AUDIO CAT5

PRO1177 In-wall Composite Video / Stereo Audio over CATe5 extender

Sold as a pair!

This wall plate will provide crystal clear audio and video over long distances utilizing economical CAT5e or higher UTP cable.

  • Includes mounting hardware
  • Easy D.I.Y. installation
  • RJ45 Connector
  • Depth: 33mm

Specifications

Interface Front 1x RCA input (Composite)
2x RCA inputs (Audio L/​R)
Rear 1x RJ45 Socket
Impedance Video 100Ω unbalanced
Audio 600Ω unbalanced
Bandwidth Video DC (0Hz) ~ 12 MHz
Audio 50 Hz ~ 15 KHz
Distance 100 metres (based on CAT5e cable)

Images

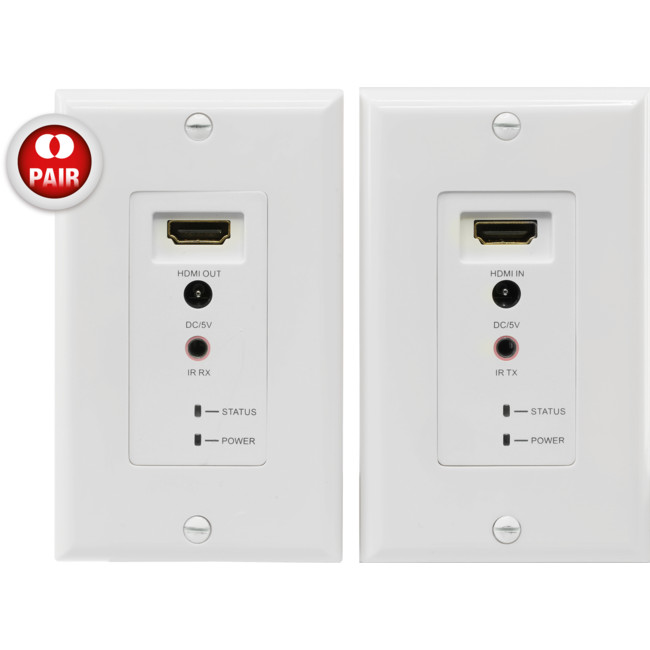

HDC6WP HDMI OVER CAT5E/6 WALL PLATE

A neat and simple wall plate high definition HDMI extender kit. This kit extends your high definition AV source from your Blu-ray DVD Players, PS3 and XBOX etc. up to a maximum 60m via CAT5E/​6 cables through the wall cavities. Supports full 1080P high definition of up to 60m. Integrates an infra-red control extender for full controllability from the receiving end. RJ45 connections on the rear of both units makes it for easy connection.

Not compatible with Foxtel iQ2/iQ3

Features

  • Each set includes one transmitter and one receiver
  • Modular design
  • Connect with single Cat5E/​6 cable to reach a longer distance than HDMI cable
  • Transmission distance could be up to 60m with 1080P video format
  • Auto adjustment of feedback, equlization and amplify
  • Up to 2.25Gbits signal rates in support of 1080P display
  • With Infraed control sginal passing through
  • Compatable with 3D format

Specifications

    Operating Temprature Range −5 to +35°C
    Operating Humidity Range 5 to 90% RH (No Condensation)
    Input Video Singal 0.5-1.0 Volts P-P
    Input DDC Signal 5 Volts p-p (TTL)
    Support Video Format DTV/​HDTV: 480i/​576i/​480P/​576P/​720P/​1080i/​1080p/​3D video format
    Video Output HDMI
    Support Audio Format DTS-HD Master Audio, Dolby true-HD etc.
    Transmission Distance
  • 1080P 8-bit 60m (Maximum)
  • over CAT5E/​CAT6/​24AWG/​Solid (recommend to use 23AWG Cat6cable)
  • Power consumption 3watts (Maximum)
    Dimension (LxWxH) 115x70x35mm
    IR wavelength & Frequency Wavelength: 940nm, frequency 38kHz
    Net Weight 260g (Pair)
    Power supply 2 x DC/​5V 1A (included)

PRO1199 ACTIVE COMPOSITE STEREO + IR

Composite AV + IR over CAT5 Wall Plate Extender Kit

NEW: Now with easy RJ45 socket connection.

Twisted pair extenders allow long distance distribution of audio and video using inexpensive CAT5e cables. The PRO1199 extends composite video and stereo audio signals up to 100 meters.
Using basic or shielded Cat5 or Cat6 cables the PRO1199 kit allows economical long distance distribution of composite video + stereo audio, as well as remote controlling devices through the integrated IR repeater.

Features:

  • Deco style wall plates
  • Video: Composite Stereo Left & Right
  • 3x RCA to RJ-45 socket
  • CFL friendly – Allows installation with CFL lighting
  • Cord Length – 3 m on IR emitter and IR Reciever
  • Confirmation LED on IR receiver

Kit includes:

  • Composite AV Transmitter & Receiver wall plates
  • Surface mount IR receiver
  • PRO1142 Dual IR emitter
  • Power supply: 12VDC 200mA

Many new homes and office buildings already contain structured cabling systems of not only electrical and phone wiring, but also inexpensive Cat5 twisted pair cable, which is commonly used as a data line. Take maximum advantage of this existing wiring by adding baluns to each end. These small transformers convert audio and video signals from unbalanced to balanced and vice versa, making the necessary impedance adjustments for A/​V signal transmission between different wiring systems. This means that you can run your signal over inexpensive Cat5 wiring, rather than rewiring your home in order to send video and audio signals from roomto room.

Ideal for such devices as DVD players, satellite receivers, Cable boxes, Video Games, plasma and LCD displays, projectors, monitors, amplifiers, switchers, and other equipment supporting audio or video signals and transmitted via cost-effective unshielded twisted pair (UTP) cable in a point-to-point configuration.

IR system Includes –
IR receiver and 1 dual IR emitters (PRO1142 also availableseparately) that deliver commands to 2 components, expandable up to 4 devices. The integrated IR-Repeater is made up of a receiver that picks up the signal from your remote, and emitters for sending the signals to the components. The IR emitters and AC adapter plugs into the Transmitting wall plate and the IR Receiver plugs into the Receiving wall plate. Both the IR emitters and receiver comes with a 10ft cable attached to it for your convince.

Specifications:

  • Impedance: 100Ω unbalanced
  • Bandwidth: Video: DC~60 MHz
  • Infrared Component:
    • IR control though the integrated IR repeater
    • Receive Frequency: 34kHz to 40kHz
    • Transmit Frequency: 38kHz
    • Range: On Axis – 50ft / 30º Off Axis – 40ft

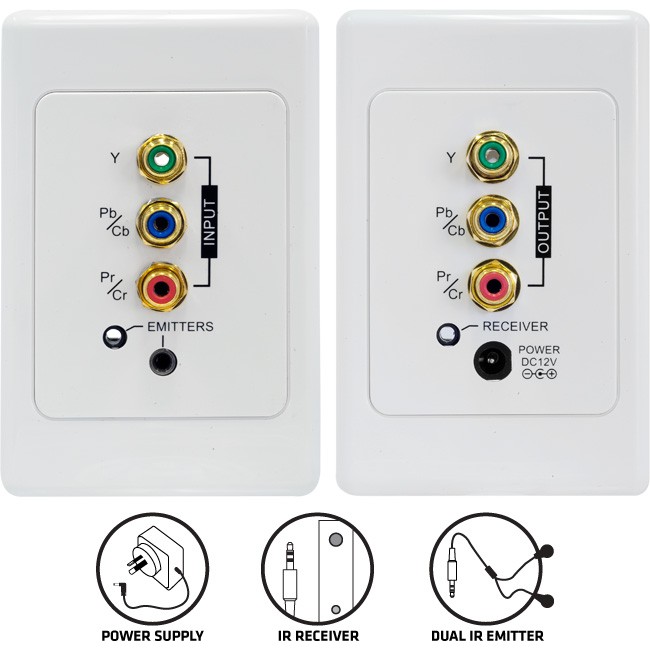

PRO1200 PRO2 COMPONENT + IR

COMPONENT OVER CAT5 WITH IR KIT

Send component signals over long distances using economical CAT5 cable and control your AV devices remotely.

  • 3x RCA (Y/​Pb/​Pr) female connectors
  • UTP: 110-type rear punchdown
  • Impedance: 100 ohm unbalanced
  • Bandwidth: Video: DC~60 MHz
  • Distance: Over Category 5e/​6 UTP cable:
    • 480p video, up to 100 meters
    • 720p video, up to 75 meters
    • 1080i video, up to 50 meters
  • Infrared Component:
    • Receive Frequency: 34kHz to 40kHz
    • Transmit Frequency: 38kHz
    • Range: On Axis – 50ft 30º Off Axis – 40ft
  • Kit includes:
    • Component Video Transmitter and Receiver
    • PRO1178 IR receiver
    • PRO1142 Dual IR emitter
    • Power: 12VDC 200mA

Related Products

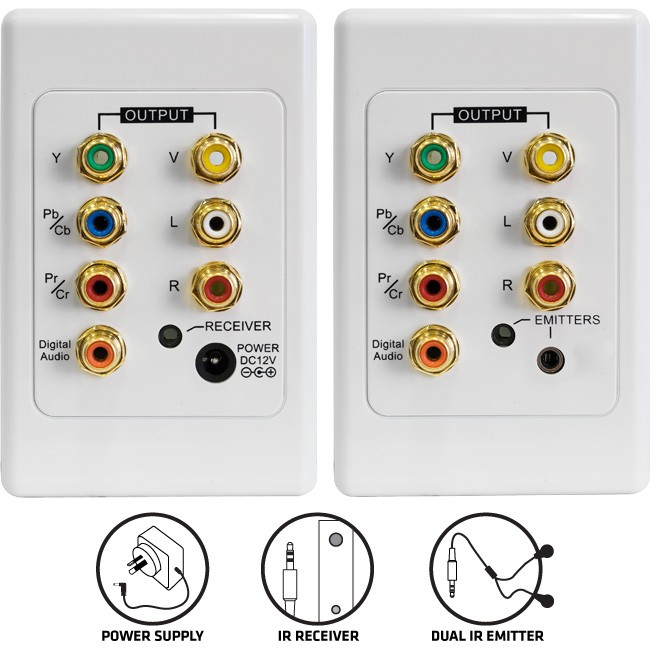

PRO1254D AUDIO VIDEO & COMPONENT + IR

Features

The PRO1254D is part of the " PRO2 CAT5 Extender Series ". The Clipsal-style design means it matches your existing wall plates, for that fully integrated look! The PRO1254D reduces the cost and number of cables by transmitting just about all the analoguevideo and audio signals you could need, and with Foxtel iQ2 compatible IR return, you won’t have to splash-out for an additional IR extender kit!

Distributes your AV signals via dual economical, standard Cat5e Patch cables up to 300m for basic Composite and Components AV signals, and up to 150m for 720p/​1080i anddigital coaxial signals, ensuring high quality video and audio transmission without costly repeaters and expensive cabling.

  • Video and audio transmission up to 300m over 2x Cat5e UTP Patch cables
  • Component video connections (Y/​Pb/​Pr)
  • Coaxial Digital connection
  • Composite / CVBS Video connection
  • Analogue audio connection (L+R)
  • Foxtel iQ2 Compatible IR Return
    • IR Target/​receiver and emitters included!
    • Works in areas with compact fluorescent lighting
    • Blue IR confirmation LED
    • Self-adhesive tape for quick and easy fixing on any flat surface
    • IR Receiver/​target has 3 metre lead for mountingin virtually any convenient location
  • No power required for Video / Audio transmission
    • Only IR return requires power

Specifications

Transmitter

  • Component video inputs (Y / Pb / Pr)
    • 3x RCA sockets (Green/​Blue/​Red)
    • Impedance: 75Ω unbalanced
    • Bandwidth: DC~12 MHz
  • Coaxial digital audio input
    • 1x RCA socket
    • Impedance: 600Ω unbalanced
  • Composite video input
    • 1x RCA socket (Yellow)
    • Impedance: 75Ω unbalanced
    • Bandwidth: DC~12 MHz
  • Audio Left & Right inputs
    • 2x RCA sockets (White/​Red)
    • Impedance: 600Ω unbalanced
    • Bandwidth: 50 Hz~15 kHz
  • 2x 3.5mm jacks for IR emitters
  • Interface:
    • 2x Cat5e RJ45 Jacks on rear
    • Impedance: 100Ω balanced

Receiver

  • Component video inputs (Y / Pb / Pr)
    • 3x RCA sockets (Green/​Blue/​Red)
    • Impedance: 75Ω unbalanced
    • Bandwidth: DC~12 MHz
  • Coaxial digital audio input
    • 1x RCA socket
    • Impedance: 600Ω unbalanced
  • Composite video input
    • 1x RCA socket (Yellow)
    • Impedance: 75Ω unbalanced
    • Bandwidth: DC~12 MHz
  • Audio Left & Right inputs
    • 2x RCA sockets (White/​Red)
    • Impedance: 600Ω unbalanced
    • Bandwidth: 50 Hz~15 kHz
  • 2x 3.5mm jacks for IR emitters
  • Interface:
    • 2x Cat5e RJ45 Jacks on rear
    • Impedance: 100Ω balanced

IR Receiver

  • Receive frequency range: 34 kHz to 40 kHz
    Emitter frequency: 38 kHz
  • Range
    • On Axis – 16.8~24.4m (55ft to 80 ft)
      30° Off Axis – 9.1~16.8m (30ft to 55ft)
  • Power: 12VDC / 31mA max
  • Dimensions: 54L x 14W x 13H mm
  • Weight: 23 g

System

  • Distance: Over Category 5e/​6 UTP cable:
    • 720p video, up to 150 metres (total length, device-to-device)
    • 1080i video, up to 150 metres (total length, device-to-device)
    • Digital Audio: up to 175 metres (total length, device-to-device)
  • Interface:
    • 2x UTP Cat5e/​6 Patch Lead
  • Dimensions:
    • Overall: 114 x 70 x 42mm (including cover plate)

Kit Contents

Kit includes:

  • 1x Transmitter wall plate
  • 1x Receiver wall plate
  • 1x Dual IR emitter
  • 1x IR receiver stick
  • 1x Power supply: 12VDC / 200mA
