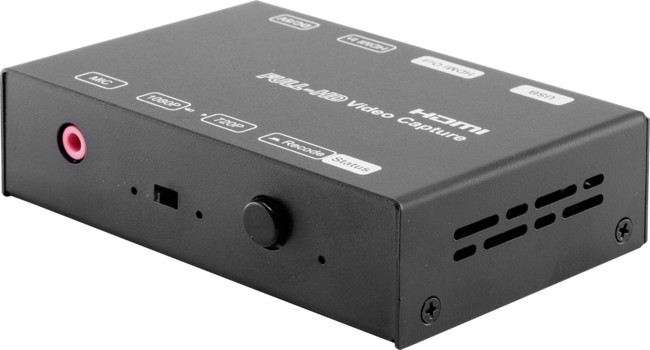

HDVC01 1080P FULL HD VIDEO CAPTURE

Are you a console gamer and want to share your moves, or is your PC taking CPU taking a hit while recording your gameplay? Perhaps you are selling AV equipment and want to record professional walk-throughs of your product’s menus. Don’t resort to pointing a camera at a screen! The Pro.2 HDVC01 records your HDMI video input—up to 1080P—directly to USB storage in h.264 encoding: no computer required!

Features

  • Support HDMI signal source of PlayStation 4, Xbox One and Xbox 360 game play in brilliant 1080p@60Hz with advancedH.264 encoding
  • Recording with one-click, easy to use. It doesn’t require any set up just click "RECORD" button to record yourgame play and re-click to stop recording
  • Supports NTFS/​FAT32 formatted USB storage
  • Automatically split the video up to 2GB per file
  • Support record video format of MPEG-4 and audio formatof RCA L/​R 3.5mm microphone input
  • Support upscale or downscale to 720P

Specifications

Operating Temperature Range -5 to +35°C
Operating Humidity Range 5 to 90% RH (No Condensation)
Output Video Format MPEG-4
encoder H.264
Input resolution 720×480 (60Hz)
720×576 (50Hz)
1280x720P (50Hz/​60Hz)
1920x1080i (50Hz/​60Hz)
1920x1080P (24Hz/​25Hz/​30Hz/​50Hz/​60Hz)
Capture resolution 720×480 (60Hz)
720×576 (50Hz)
1280x720P (50Hz/​60Hz)
1920x1080i (50Hz/​60Hz)
1920x1080P (24Hz/​25Hz/​30Hz)
Support Audio Format LPCM
Bandwidth 2.25Gbps
USB 2.0
Power consumption 3watts (Maximum)
Dimension (L×W×H) 102.2×70.1×27.1mm
Net Weight 220g

HUB4 4 PORT USB 2.0 HUB

Features

  • USB2.0 Version
    • Full data transfer rate up to 480Mbps
    • backwards compatible with USB1.1
  • 4 ports, and power up to 500mA each port
  • Passive or Active
    • Supports operation in passive or,
    • Active power mode (power supply not included; but supports 1.1mm DC Plug for external power)
  • No need for drivers or software
  • Truly plug & play with hot swapping capability

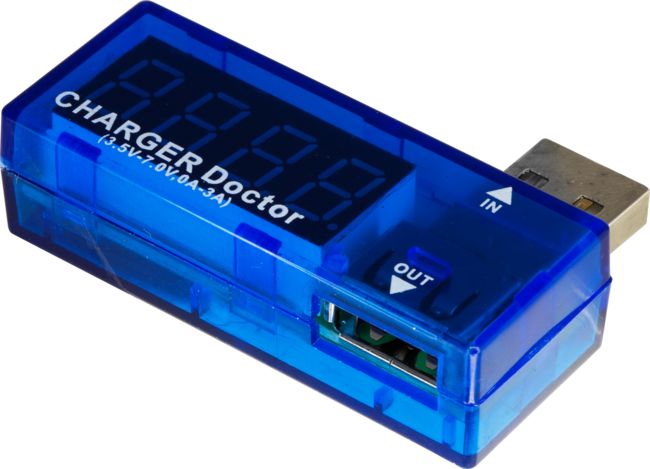

CVT201 USB CURRENT VOLTAGE METER

Easily measure the output voltage and device current withthis easy-to-use plug & play USB device. This compact device is useful for a wide range of applications and connects directly to a USB port, no power supply needed!

Features

  • Easy to operate
  • No additional power supply.
  • Current & voltage display cycle
  • Measure voltage of USB ports, empty load, and the voltage and current of USB equipment during operation.

Specifications

  • Color: Blue
  • Voltage: 3.5 ~ 7V error 0.1V
  • Current: 0 ~ 3A ±2%
  • Simple and convenient to use.
  • Portable and easy to carry.
  • Product size: 5.2 x 1.5 x 3.5cm
  • Product weight: 25g

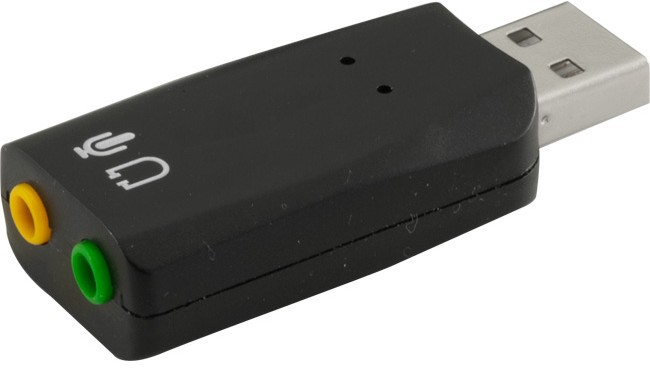

PA2295 USB MIC AND HEADPHONE ADAPTOR

Eliminate the need for a traditional sound card with thisUSB 2.0 to Audio adapter.

It’s simple to use, simply plug and play! Key features include a Microphone in jack andspeaker/​headphone out jack.

Features/​Specifications:
  • USB 2.0 to Audio Adapter

  • General Features:
  • USB 2.0 interface
  • Plug and Play
  • Stereo Sound Effects
  • Virtual Speaker Shifter
  • Speaker/​Headphone Out jack
  • Microphone in jack
Package Includes:
  • USB 2.0 to Audio Adapter

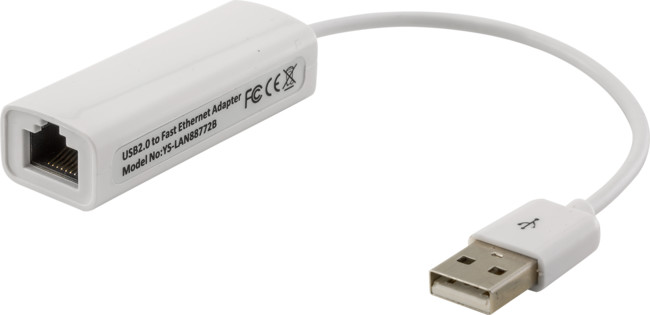

UPRS2 USB2 ETHERNET ADAPTOR

The USB2.0 Ethernet network adapter converts any USB portto an ethernet port and lets you easily connect to a high-performance Ethernet network. Small and compact, just plug it into any existing USB port on your Microsoft SurfacePro 3, Macbook Air, Netbook etc. and you’re ready to go!

Features

  • Plug & Play
  • To provide full / half duplex fast ethernet connection
  • Connectors: USB Type A Plug, RJ45 Socket.
  • Energy-saving functionality: suspend when traffic is low
  • USB powered, no external power supply needed
  • Operating system:
    WindowsXP / Vista / Win7 / Win8 / Mac OS X10.4 / Linux 3.2 / NintendoW / Chromebook
  • VLAN: support 2 VLAN ID filter
  • PAM: TX data buffer built-in 16KB SRAM RX data buffer and 8KB SRAM
  • 10/​100MB Data Speed

Related Products

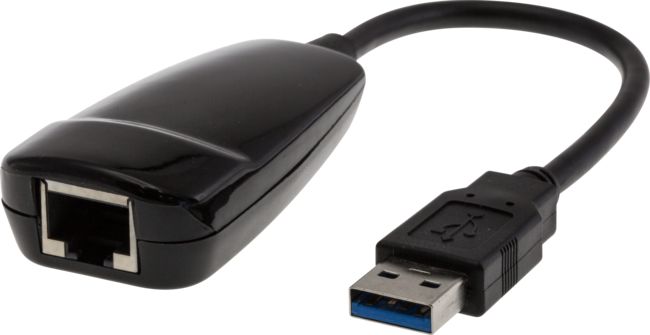

UPRS3 USB3 GIGABIT ETHERNET ADAPTOR

This Gigabit USB 3.0 Ethernet adapter is a cost effective solution that converts a USB port into a 10/100/1000 Ethernet port. It enables low cost and affordable Gigabit Ethernet network connection to your desktop, notebook PC, and embedded system using popular USB ports. No need to purchase an expensive Gigabit network interface card and to spare a PCI or Cardbus slot, just using your existing USB ports and you can upgrade your network connection speed

  • Supports 10/​100/​1,000 Mbps auto-sensing capability
  • Supports auto MDIX (straight and cross network cable auto-detection)
  • USB specification 1.0, 1.1 and 2.0 compliant
  • Supports USB full and high speed modes with bus power capability
  • IEEE 802.3, 802.3u, and 802.3ab (10Base-T, 100Base-TX, and 1000Base-T) compatible
  • Supports both full-duplex and half-duplex operation in Fast Ethernet
  • Supports Jumbo packet of up to 9KB
  • Supports suspend mode and remote wake-up via link-up andmagic packet
  • Plug-and-play installation
