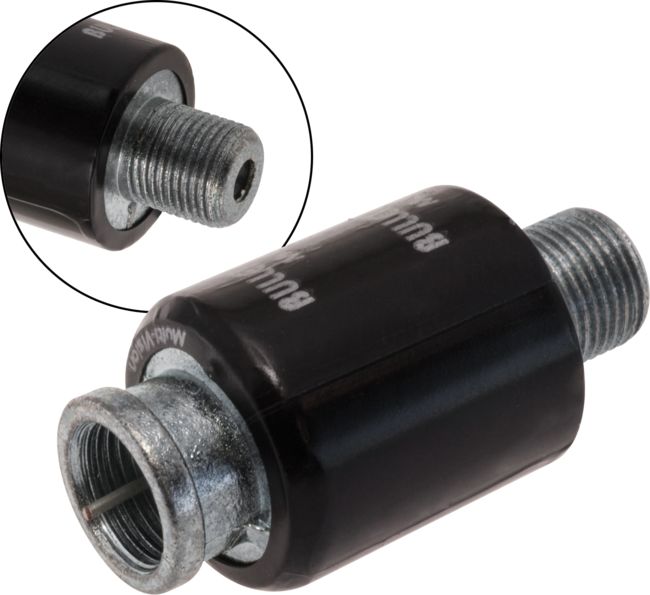

SPF COAXIAL SURGE PROTECTOR

The SPF RF / Coaxial protector features robust gas tube technology and provides surge protection for radio frequencyand coax cables

  • Gas tube: 90V type
  • Insertion loss: 0.5dB Max. (50~470 MHz)
  • 0dB Max. (470~900 MHz)
  • Return loss: 16dB typical
  • Normal resistance across coax: 10000 MO
  • Surge protection attacks time: 10-7 seconds
  • Maximum surge current: 5000A per 8/​20 µS

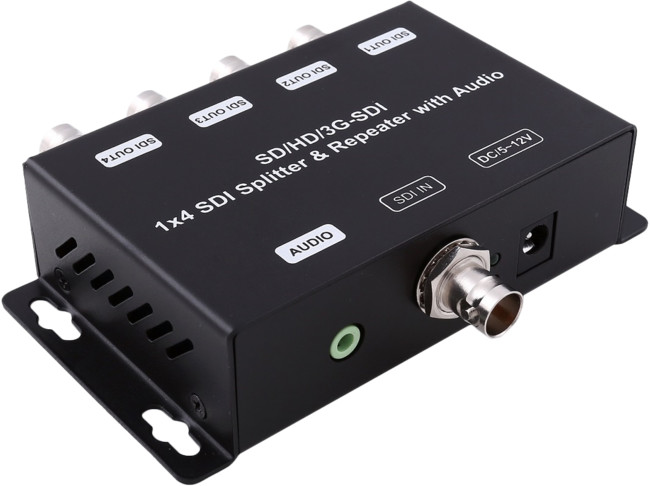

SDI4SP 4-WAY SDI SPLITTER & REPEATER

Features

  • Distributes 1 SDI input to 4 SDI outputs simultaneously
  • With Audio extraction (3.5mm stereo audio output)
  • Single unit can transmit up to 120m (Beldon 1694A)
  • Re-clocking function capability—unlimited repeater connection
  • Support SDI Standard: SD-SDI, HD-SDI, 3D-SDI
  • Data Rates: 270Mbps (SD-SDI), 1.485Gbps (HD-SDI), 2.97Gbps (3G-SDI)
  • Signal Type: SMPTE 292M, SMPTE 259M, SMPTE 424M
  • DC 5V 1A (included, Power consumption less than 2W)
  • With mounting ears

Wiring diagram

Specifications

Re-clocking Function Yes
SDI Standards SD-SDI, HD-SDI, 3G-SDI
HD/​SD-SDI Detection Auto
Supported Protocols SMPTE 259M
SMPTE 292M
SMPTE 424M
Data Rates 270Mbps (SD-SDI), 1.485Gbps (HD-SDI), 2.97Gbps (3G-SDI)
Video Support 480i@60hz, 720p@50/​59.94/​60hz, 1080i@50/​59.94/​60hz,
1080p@23.98/​24/​25/​29.97/​30/​50/​59.94/​60hz
SDI Signal Type SMPTE-292M, SMPTE-259M, SMPTE-424M
Output Impedance 75 ohms
Cable Equalization HD-SDI up to 120m
SD-SDI up to 200m
Unlimited repeater connection
Audio Sampling rate 48Khz
Impedance 75 ohms
Input 1x BNC [SDI]
Output 4x BNC [SDI], 3.5mm stereo audio jack
Power Adapter 5V1A DC
Power Consumption (Max) 2W
Dimension (LxWxH) L115xW64xH30mm
Operating Temperature 0°C ~ 40°C
Storage Temperature -20°C ~ 60°C
Relative Humidity 20~90% RH (no condensation)
Housing Material Metal case

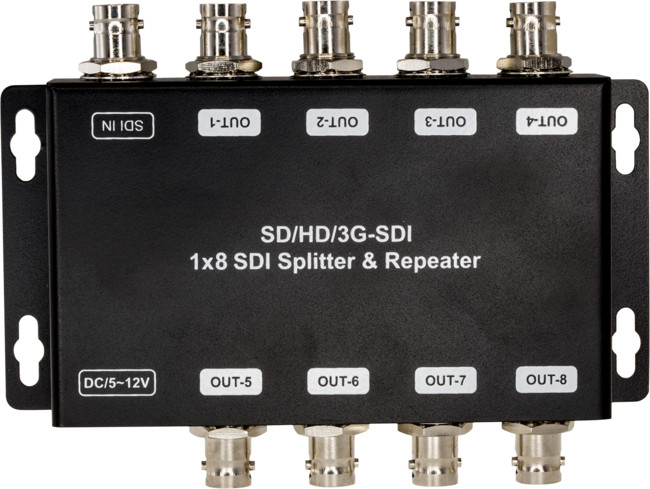

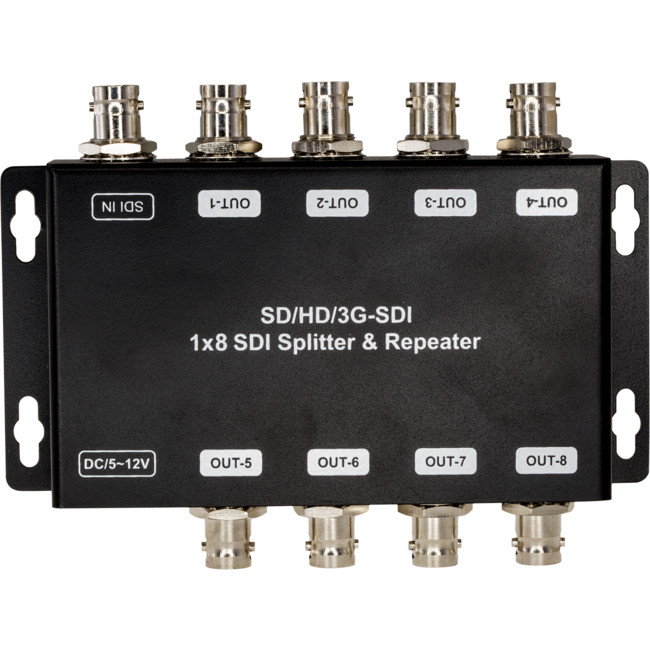

SDI8SP 8-WAY SDI SPLITTER & REPEATER

Widely used in broadcasting and security systems. This 1 in 8 out splitter & repeater enables you to conncet up to 8outputs from 1 SDI input.

Features

  • Distributes 1 SDI input to 8 SDI outputs simultaneously
  • Single unit can transmit up to 120m/​390ft (Belden 1694A)
  • Re-clocking function capability-unlimited repeater connection
  • Support SDI Standard: SD-SDI, HD-SDI, 3G-SDI
  • Data Rates: 270Mbps (SD-SDI), 1.485Gbps (HD-SDI), 2.97Gbps (3G-SDI)
  • Signal Type: SMPTE 292M, SMPTE 259M, SMPTE 424M
  • DC 5V1A (Power consumption less than 2W)
  • With mounting ears

Specifications

Re-clocking Function Yes
SDI Standards SD-SDI, HD-SDI,3G-SDI
HD/​SD-SDI Detection Auto
Supported Protocols SMPTE 259M
SMPTE 292M
SMPTE 424M
Data Rates 270Mbps (SD-SDI), 1.485Gbps (HD-SDI), 2.97Gbps (3G-SDI)
Video Support 480i@60 Hz
720p@50/​59.94/​60 Hz
1080i@50/​59.94/​60 Hz
1080p@23.98/​24/​25/​29.97/​30/​50/​59.94/​60 Hz
SDI Signal Type SMPTE-292M, SMPTE-259M, SMPTE-424M
Output Impedance 75 ohms
Cable Equalization HD-SDI up to 120m
SD-SDI up to 200m
Unlimited repeater connection
Audio Sampling rate 48kHz
Impedance 75 ohms
Input 1x BNC [SDI]
Output 8x BNC [SDI]
Power Adapte 5V 1A DC
Power Consumption (Max) 2W
Dimension (LxWxH) L115xW64xH30mm
Operating Temperature 0°C-40°C / 32°F-104°F
Storage Temperature -20°C-60°C / -4°F-140°F
Relative Humidity 20~90% RH (no condensation)
Housing Material Metal case
