The HDMIRG6 HDMI over coax extender will send 1080p@60Hz HDMI 1.3 signal with deep colour support over a single RG-6/​U coaxial cable to a distance of up to 120 meters with absolutely no loss in quality.

• Distribute HD signals in 720p / 1080i / 1080p using a single 75 Ohm RG6U coaxial cable
• NEW! Built-in IR Extender functionality
  Control your source device using its original remote.
• HDMI version: 1.3c with HDCP Compliance
• 1080p resolution up to 120m/​400ft
  • 1080i resolution up to 150m/​500ft
• Deep Colour Mode
• Digital Audio: 5.1ch / 7.1ch surround sound / Dolby Digital / DTS-HD
• Loop Out on Receiver
  Create a transmitter / receiver cascade to extend distance and build up a HDMI splitter system
• Zero video quality loss
• Easy installation
• High quality metal chassis
• No need to adjust gain and equalizer settings

One-to-One (HDMI Extender) Configuration

One-to-Many (HDMI Splitter) Configuration

• 1x Receiver
• 1x Transmitter
• 1x IR Emitter
• 1x IR Extender
• 1x BNC Terminator
• 2x power supply (5V 1A)
• User manual

Can you combine the HDMI source with the TVsignal or other modulated signals?
No. The bandwidth does not permit this.

Can you split the signal?
Yes. You can split or loop the signal. It launches atapproximately 80dB, so splitting the signal to numerous sources is not an issue.

Can you run the signal through Doss splitters?
Yes. We’ve tested the signal through Doss free toairsplitters (FSP2F) and satellite splitters (SP2F). It works perfectly.

How many times can you loop one 1080P source?
We have had it tested from one PS3 1080P video source to atotal of 40 TV displays. It could probably do more, but we got bored by then…

What if you need to run further than 120m at 1080P?
Using fibre optic cable is probably the only solution beyond the HDMIRG6. Costs and complexity increase.

Does the IR Pass-through work with Foxtel IQ2?
Unfortunately, no. Foxtel IQ2 uses an IR frequency modulation that the HDMIRG6 is unable to recognise.

• HDCP Compliant
• Distribute HD signals in 720p / 1080i / 1080p using a single coaxial cable
• 1080p resolution up to 120m (400ft) up to 150m (500ft)
• Easy installation via a single RG-6/​U cable
• High quality metal chasis
• No need to adjust gain and equalizer settings
• No video quality loss
• VESA compatible mounting holes

• 1x Receiver
• 1x power supply (5V 1A)
• User manual

• 1080p and 720p video compatible, plus 2-channel audio
• Uses off-the-shelf gigabit IP switches for extension anddistribution
• Plug-and-play operation-no programming or setup required
• Extends 1080p HDMI signals up to 120m over a single Cat5e/​6 cable
• Traffic can be unicast, multicast or broadcast for different applications
• Build-in DIP swith to change Group ID for multiple displays
• Can be cascaded for many layers by daisychain Ethernet switches
• Allows wide-band IR (38-56KHZ) remote control of sources devices
• HDCP Compatible
• Supports USB
• DC 5V Power supply (included)

Wiring Diagram

Note: IP and MAC address must be different for one TX to many RX or many TX to many RX configuration.

• Each set includes one transmitter and one receiver
• Easy installation, no need to do extra setting
• Transmit HDMI signal over 50m via single Cat5e/​6 without signal loss
• The CAT5e/​6 follows standard of IEEE-568B
• Support high definition resolution up to Full HD 1080p
• Support Dolby True-HD, DTS-HD Master audio
• EDID reading and saving from display
• Bandwidth can be up to 6.75 Gbps
• Deep colour up to 36 bit
• 3D compatible
• 2x DC 5V 1A power supply (included)
• 4K/​2K incompatible

Wiring diagram

An upgraded version of our HDC6EDID. Now with local HDMI loop out on transmitter device enables local viewing function. Which means you can view the video source locally as well as on the extended end.

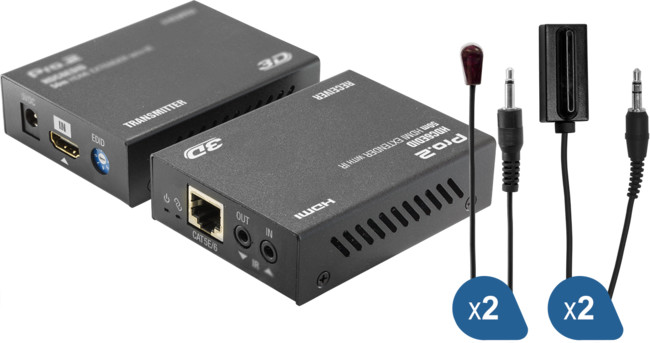

A neat and simple high definition HDMI extender kit. This kit extends your high definition AV sources from Blu-ray DVD Players, PS3 and XBOX etc. up to a maximum 50m via single solid CAT5E / 6 cables through the wall cavities. The new EDID feature increases its compatiblilty with players or displays. It supports full 1080P high definition and integrates an infra-red control extender for full controllability from the receiving end. RJ45 connections on the rear of both units make it for easy connection.

• Transmits HDMI Audio/​Video Signals and IR over a 50m single solid Cat5e/​6 Cable.
• Transmits a wide-band Bi-Directional IR control signal together with the HDMI signal.
• Supports 24bit Deep Colour.
• Full cascade to create larger distributions.
• Automatically adjusts feedback, equalization and amplification
• Supports PCM, Dolby Digital, and DTS Digital Surround
• Follows IEEE-568B cable termination standards and solid cables are prefered.
• HDCP compliant
• Supports 3D video format
• HDMI out port on transmitter

Wiring Diagram

What are included in the package?

• 1xHDMI Transmitter
• 1xHDMI Receiver
• 2 x IR TX Emitter
• 2 x IR RX Receiver
• 2 x 5V / 1A DC Adapter (Australian approval)
• User Manual

*Note: 50m distance is under perfect transmission conditions including straight cable runs with no electrical interference, bends, kinks, patch panels or wall outlets.

Does this unit work with the new Foxtel iQ3?

Yes. Just make sure your IR emitter is placed in the correct location. See the image below.

Why the product is not working well as it suppose to?

Please make sure IEEE-568B type solid cable is being used.

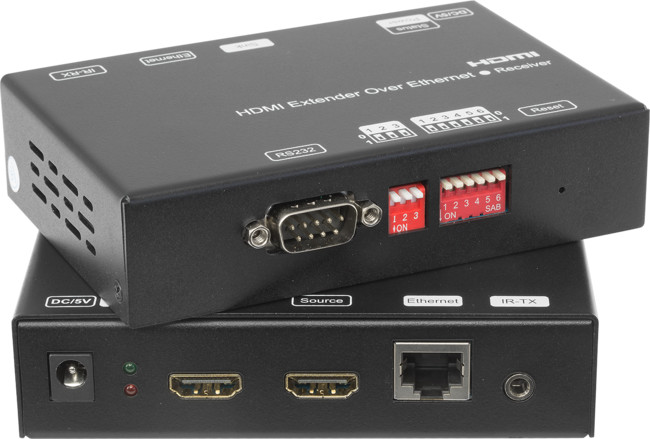

HDMIIPECO uses H.264 as compression type, which takes lower bandwidth and transmits the signal over the LAN more smoothly. It transmits the HDMI signal for up to 120m over single cat5e / 6 cable at point to point, as well as point tomany and many to many over Ethernet switch. It can be widelyused in various locations, such as meeting room, class room, metro, airport, home, mall advertisement…etc.

• Use H.264 as compression type, high video quality with low bandwidth required
• Support resolution up to 1080p @ 60Hz, data transmissionspeed is 2.25 Gbps
• FOXTEL IQ IR compatiable
• Real and managable IP addresses allows HDMI source can be accessed inside network via VLC player.etc. Footages can be recorded by software.
• Dip swithc to change sources
• Support LPCM audio format, sample rate is 48KHz
• Comply with TCP/​IP protocol for transmission, streaming bit rate is upto 15Mbps.
• Compliant HDCP
• Support RS232 pass through
• Support Wide-band IR (38k ~ 56khz)
• Support point to point, point to many, many to point, many to many broadcasting network configuration
• Support DHCP, switch assign IP for the Transmitter and Receiver automatically
• With 3 Bit DIP to choose baud rate
• With 6 Bit DIP to manage group ID
• With HDMI output for local display on Transmitter
• DC 5V 2A power supply, power consumption less than 3W

Performance
Protocol	H.264 encoder over TCP/​IP
Support Video Format	480i / 480p / 576i / 576p / 720p / 1080i / 1080p @ 60Hz
Support Audio format	LPCM, Audio sampling rate 48KHZ
Streaming Bit Rate	15Mbps
HDCP	Compliant
IR Frequency	38 -56 KHZ
RS232 Baud rate	Default 2400bps, total 8 kinds optional
IP setting & Group ID setting
Default IP	TX: 192.168.1.11; RX: 192.168.1.12
Group ID	Group 00 ~ group 63
Request for Switch / Router	Support IGMP, support DHCP
Connectors on Transmitter
Input	1xRJ45 input
Output	1x HDMI Female port
RS232	DB9 Male port
IR	IR RX port
Environmental & Power Requirements
Operating temperature	-5 to +35 °
Operating Humidity Range	5 to 90%RH (No Condensation)
Power supply	DC 5V 2A
Power consumption	Max 3 watt
Physical
Dimension	120.2×78.6×29 mm
Net Weight	TX: 0.28KG: RX:0.28KG

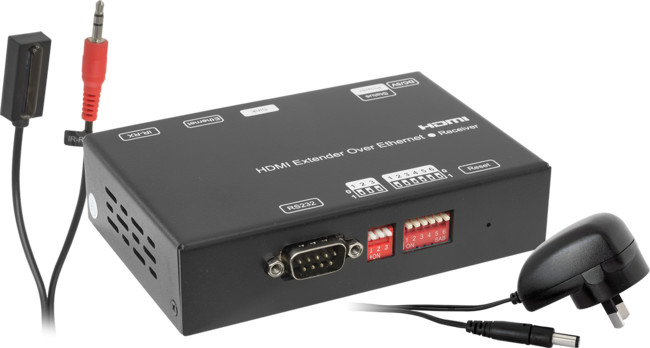

Package Contents

• 1x Transmitter
• 1x Receiver
• 1x IR-TX
• 1x IR-RX
• 1x Manual
• 2x Power adapters 5V 2A (included)

Does this unit work with the new Foxtel iQ3?

Yes. Just make sure your IR emitter is placed in the correct location. See the image below.

How to Playback using VLC player software?

Please note VLC cannot playback videos covered by HDCP.

1. Open VLC player software and select "Media" then "Open Network Stream"

2.Select Network and IP address should be filled in

3. Select Stream in the drop down list at bottom right

4.

5.

6.

7. Click on Next to finish off streaming procedure

Considering extending your HDMI source over single Cat5E/​Cat6 cables?

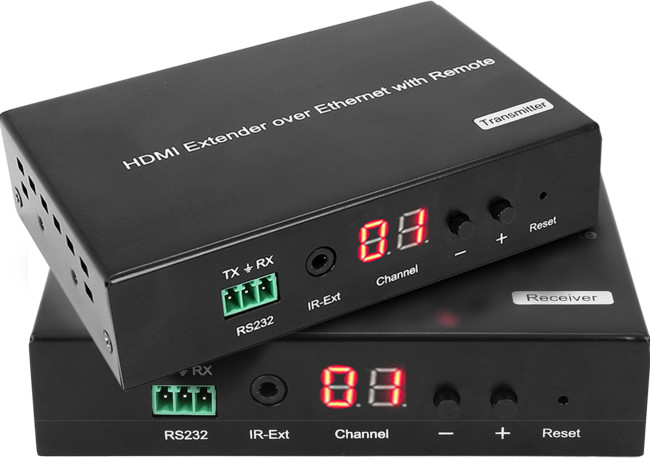

This HDMIIPPRO HDMI over IP Extender uses advanced H.264compression type which transfers signal using lower bandwidth thus tranmit more smoothly.

It supports 120m over single Cat5E/​6 cable at point to point. It also supports point to many and many to many transmition over ethernet switch.

A great HDMI over IP solution for meeting room, class room and home etc.

The PRO version supports remote control and can be powered by POE.

• Using H.264 compression encoding, Supports resolution up to 1080p@60Hz
• Transmit up to 120m over single Cat5E/​6 cable with 1 looping HDMI output
• With IR remote for source selection. LED front panel showing group ID.
• Complies with TCP/​IP protocol, streaming bit rate is up to 15Mbps
• Supports LPCM audio format
• Supports DHCP for easy IP address assigning
• By pass 2 way UART/​RS232 (Up to 115200), remote controlcan be used for selecting 8 group baud rate.
• Supports one to one, one to many, many to one, many tomany modes.
• Can be powered by either power supply or POE
• HDCP compliant
• Supports PC tool control

I am having trouble changing IP address

Please click here for more information

What type of internet switches are ideal to be used with this product?

To ensure the best performance of HDMIIPPRO, a managedgigabit switch with IGMP (Internet group management protocol) snooping function is recommanded for many to many applications.

1x Transmitter

1x Receiver

1x IR-TX cable

1x IR-RX cable

1x Manual

4x Mounting Screws

4x Detachable Mounting Ears

2x Phoenix Plugs For RS232 Cable Termination

2x Remote Control

2x 5V 1A Power Supplies
