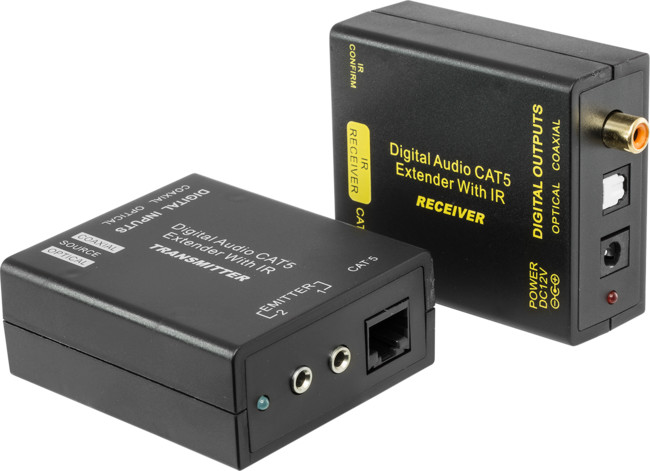

PRO1362D DIGITAL AUDIO CAT5E/6 EXTENDER

This Digital Audio Extender with IR Kit allows you to extend S/​PDIF or TOSlink digital audio up to 200 meters overone CAT-5e or CAT6 cable. Place your digital audio components anywhere you want with this "Digital Audio Extender with IR Kit". It supports either S/​PDIF or TOSlink digital audio signals, which are commonly used to transmit stereo and multichannel (5.1, DTS Digital, etc.) digital audio among various components. The ‘Digital Audio Extender with IR Kit’ uses a sender and receiver system connected by CAT-5E cables to extend the digital audio. The Digital AudioExtender’s sender unit connects to the audio source component. The Digital Audio Extender’s receiver unit connects to the extended audio component (up to 200 Meters away).

Features

  • It transmits digital signals through a single Cat5e or Cat6 cable
  • It enables user to listen and control the music by usingremote controller to control the audio player (distance: up to 200 meters)
  • Supports multichannel audio
  • Select one input from Coaxial or Toslink input ports, and send S/​PDIF audio signal to both Coaxial and Toslink output ports simultaneously
  • 2 Emitter output connections
  • Convenient IR confirmation LED
  • Power receptacle with LED indicator
  • Power supply:DC 12V / 200mA (INCLUDED)

Specifications

  • Input: Coaxial RCA Jack & Toslink port
  • Output: Coaxial RCA Jack & Toslink port
  • Extender Distance: 200 Metres
  • DC Input Connector: 5.5 x 2.1 x 9.5mm
  • DC Input Voltage / Polarity: 12V / Centre positive
  • Dimensions (mm): 88.4L x 64.5W x 29H
  • Weight: Transmitter 59g; Receiver 59g

Infared Component

  • Receiver Frequency: 30 kHz to 60 kHz
  • Transmit Frequency: 38 kHz and 56 kHz
  • Range: 12m @38kHz. / 7.62m @ 56kHz

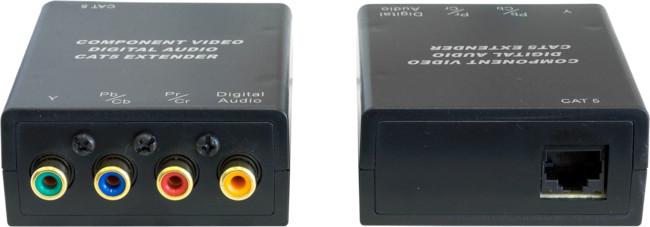

PRO1218 COMPONENT+SPDIF CAT5 EXTENDER

PRO1218 VIDEO DIGITAL AUDIO CAT5 EXTENDER

Specifications:

  • Delivery component video and digital audio over CAT5
  • Delivery Distance:
    1. Video
      1. 480p : 100 Meters
      2. 720P : 75 Meters
      3. 1080i : 50 Meters
    2. Digital Audio: 100 Meters
  • Interface:
    1. For Video/​Audio: RCA connector
    2. For in-wall: RJ-45 or IDC connector (110 Type)

Related Products

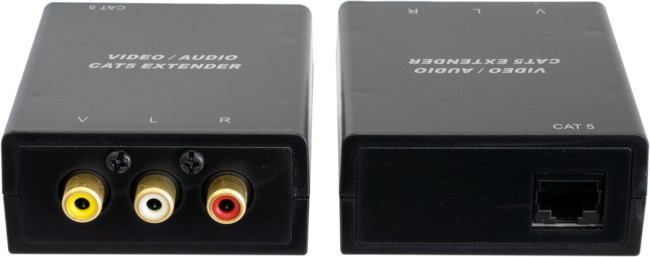

PRO1221 COMPOSITE STEREO CAT5 EXTENDER

The PRO1221 sends composite video and stereo audio signals over long distances using economical CAT5 cable allowing you to distribute video and sound easily and efficiently.

Simply connect your video source (eg. DVD player) to one module using 3 RCA cables, and another 3x RCA cables to the other module to connect to your TV and hook up the modules using a single CAT5 cable. No power supply required.

  • Includes 2 modules to transfer AV signals
  • Distance: Up to 300m
  • Interface:
    • Video: 1x RCA input
    • Audio: 2x RCA inputs
  • Impedance:
    • Video: 75 Ohm unbalanced
    • Audio: 600 Ohm unbalanced
    • UTP: 100 Ohm balanced
  • Bandwidth:
    • Video: DC~12 MHz
    • Audio: 50Hz~15KHz

Related Products

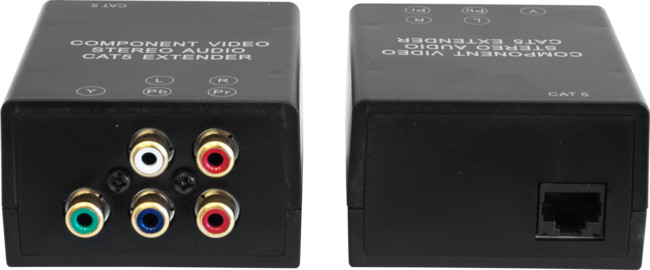

PRO1276 COMPONENT+AUDIO CAT5 EXTENDER

Extend the reach of your component video and stereo audio signals using economic CAT5E cable.

Specifications:

Interface:

  • Video: 3 RCA (Y/​Pb/​Pr) sockets; (Green, Blue and Red)
  • Audio: 2 RCA stereo left and right (White and Red)
  • UTP: RJ45 connector

Impedance:

  • video: 75 ohm unbalanced
  • Audio: 600 ohm unbalanced
  • UTP: 100 ohm balanced

Bandwidth:

  • Video: DC-60 Mhz

Distance over CAT5E/​6 UTP cable:

  • 480p video, up to 100 meters (total length, device-to-device)
  • 720p video, up to 75 meters (total length, device-to-device)
  • 1080i video, up to 50 meters (total length, device-to-device)

Related Products

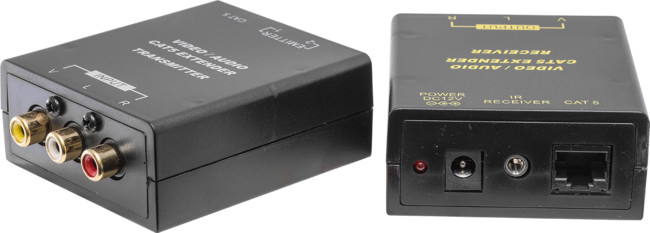

PRO1211 COMPOSITE VIDEO CAT5 EXTENDER

Features

Send composite video and analogue stereo audio over a single CAT5 cable up to 300m with the PRO1211. The PRO1211 also supports IR return with the connection of the included IR target and emitters.

Foxtel iQ2and iQ3 compatible

Specifications

Transmitter

  • Transmisison distance:
    • Audio: 300m
    • Video: 300m
  • Connections:
    • 2x 3.5mm socket for IR Emitter output
    • 1x Composite RCA Socket
    • 2x Audio RCA (L/​R)
    • 1x RJ45 Socket Transmission output

Receiver

  • Connections:
    • 1x 3.5mm socket for IR Receiver input
    • 1x Composite RCA Socket
    • 2x Audio RCA (L/​R)
    • 1x RJ45 Socket Transmission input
    • 1x DC Power Input
  • Power:
    • 12VDC / 200mA

FAQ

Does this unit work with the new Foxtel iQ3?
Yes. Just make sure your IR emitter is placed in the correct location. See the image below.

Related Products

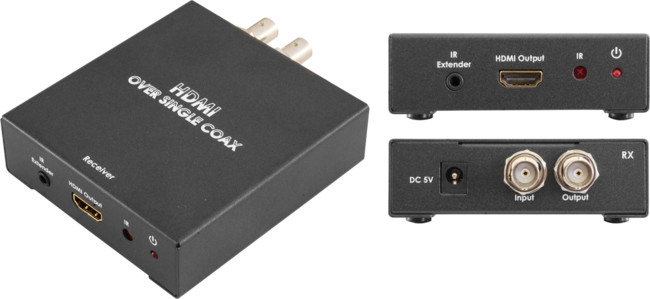

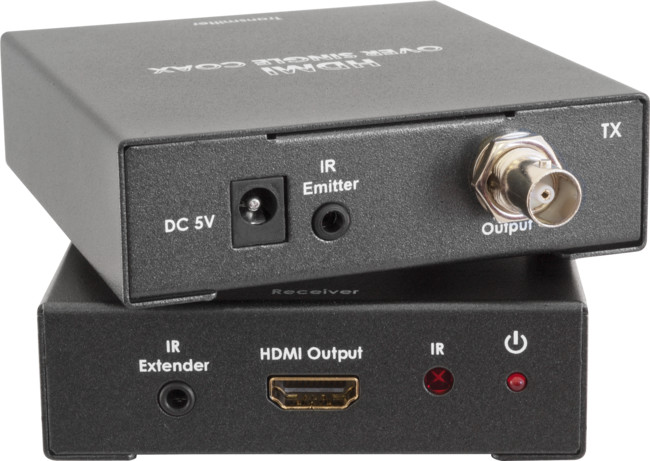

HDMIRG6 HDMI OVER SINGLE COAXIAL CABLE

Features

The HDMIRG6 HDMI over coax extender will send 1080p@60Hz HDMI 1.3 signal with deep colour support over a single RG-6/​U coaxial cable to a distance of up to 120 meters with absolutely no loss in quality.

  • Distribute HD signals in 720p / 1080i / 1080p using a single 75 Ohm RG6U coaxial cable
  • NEW! Built-in IR Extender functionality
    Control your source device using its original remote.
  • HDMI version: 1.3c with HDCP Compliance
  • 1080p resolution up to 120m/​400ft
    • 1080i resolution up to 150m/​500ft
  • Deep Colour Mode
  • Digital Audio: 5.1ch / 7.1ch surround sound / Dolby Digital / DTS-HD
  • Loop Out on Receiver
    Create a transmitter / receiver cascade to extend distance and build up a HDMI splitter system
  • Zero video quality loss
  • Easy installation
  • High quality metal chassis
  • No need to adjust gain and equalizer settings

Applications

One-to-One (HDMI Extender) Configuration

Connection diagram
Click on image for larger version


One-to-Many (HDMI Splitter) Configuration


Click on image for larger version

Specifications

Transmitter Receiver
Compliance HDMI 1.3c / HDCP 1.2 / DVI 1.1
Video Bandwidth 6.75Gbps
Video Resolution 720p / 1080i / 1080p
Audio Format 5.1ch / 7.1ch surround sound / Dolby Digital / DTS-HD
Transfer Distance 1080p – 120m (400 ft)
1080i – 150m (500 ft)
Input Connector

1x HDMI-A/​Female
1x DC Power Jack

1x BNC Jack
1x DC Power Jack X 1
1x IR Extender (Target)
Output Connector

1x BNC Jack
1x IR Emitter

1x HDMI-A/​Female
1x BNC Jack
Chassis Dimension 92.3 (W) x 28 (H) x 98.5 (D) mm
Weight 1.2kg
Power Consumption 5 Watts Max.

Package contents

  • 1x Receiver
  • 1x Transmitter
  • 1x IR Emitter
  • 1x IR Extender
  • 1x BNC Terminator
  • 2x power supply (5V 1A)
  • User manual

FAQs

Can you combine the HDMI source with the TVsignal or other modulated signals?
No. The bandwidth does not permit this.

Can you split the signal?
Yes. You can split or loop the signal. It launches atapproximately 80dB, so splitting the signal to numerous sources is not an issue.

Can you run the signal through Doss splitters?
Yes. We’ve tested the signal through Doss free toairsplitters (FSP2F) and satellite splitters (SP2F). It works perfectly.

How many times can you loop one 1080P source?
We have had it tested from one PS3 1080P video source to atotal of 40 TV displays. It could probably do more, but we got bored by then…

What if you need to run further than 120m at 1080P?
Using fibre optic cable is probably the only solution beyond the HDMIRG6. Costs and complexity increase.

Does the IR Pass-through work with Foxtel IQ2?
Unfortunately, no. Foxtel IQ2 uses an IR frequency modulation that the HDMIRG6 is unable to recognise.

Related Products

HDMIRG6S SPARE RECEIVER FOR HDMIRG6

Features

  • HDCP Compliant
  • Distribute HD signals in 720p / 1080i / 1080p using a single coaxial cable
  • 1080p resolution up to 120m (400ft) up to 150m (500ft)
  • Easy installation via a single RG-6/​U cable
  • High quality metal chasis
  • No need to adjust gain and equalizer settings
  • No video quality loss
  • VESA compatible mounting holes

Specifications

Transmitter Receiver
Video Bandwidth Single Link-225Mhz / 6.75Gbps
Video Resolution 720p / 1080i / 1080p
Audio Format 5.1 / 7.1Ch Surround Sound / Digital Audio / DTS-HD
Transfer Distance 120m (400 ft) @ 1080p
150m (500 ft) @ 1080i
Input Connector HDMI-A/​Female x1 DC Power Jack x1 BNC Jack x1
DC Power Jack x1
Output Connector BNC Jack x1 HDMI-A/​Female x1 BNC Jack x1
Chassis Dimension 86 (W) x 33 (H) x 83 (D) mm
Weight 0.8kg
Power Comsumption 5 Watts Max.

Package Contents

  • 1x Receiver
  • 1x power supply (5V 1A)
  • User manual


Related Products

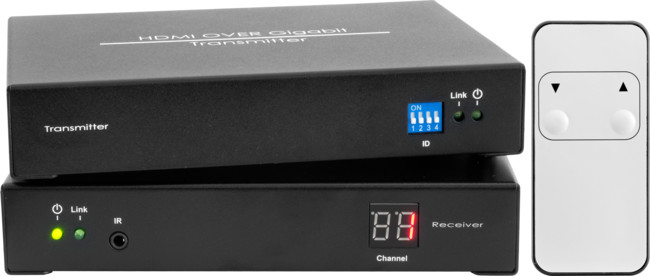

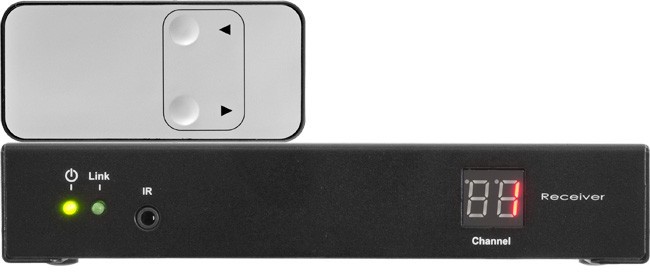

HDMIIPLR HDMI OVER IP CAT6 EXTENDER (Discontinued)

Features

.distr-badge { margin: 0 5px; }

The HDMIIPLR HDMI over CAT6 Extender will send HDMI signal (up to 1080p@60Hz) with Deep Colour™ support over a single CAT6 cable to a distance of up to 100 metres.

Use the HDMIIPLR and the HDMIIPLRS Spare Receiver to create a system with up to 16 Sources (Transmitters) & 200 Outputs (Receivers)! IR Pass-through means no more running aseparate IR extender system to control your sources.

  • HDCP Compliant
  • Distribute HD signals in 576p / 720p / 1080p using a CAT6 cable
  • 1080p resolution up to 100m/​330ft
  • Create a transmitter/​receiver cascade to extend distance and build up a HDMI splitter system
  • Easy installation via a single CAT6 cable
    – no need to adjust gain or equalizer settings
  • IR pass-through function to switch HDMI source device, IR frequency range: 38-56kHz
  • High quality metal chassis
  • No video quality loss
  • VESA compatible mounting holes
  • LED source input display
  • IR Remote control for changing receiver source

Diagrams & Downloads

Specifications

Video Amplifier Bandwidth 225 MHz
Video Output 1080p/​60 and 1920×1200 max. res
Input DDC Signal 5 Volts p-p (TTL); Input Video Signal: 1.2 Volts p-p
HDMI Connector Type A, 19 Pin Female
Link Connector RJ45 Shielded
Power Supply 5V DC / Power Consumption: 5 Watts max.
Operating Temperature 0°C – 40°C

PERFORMANCE

Accepted HDTV Resolutions

480p, 576p, 720p, 1080i, 1080p

Standard TV Resolution

480i

Maximum HDMI Cable Length

Input: 15 feet Max, Output: 180 feet Max

Video Bandwidth

6.95Gbps

Input Video Signal

1.2 Volts P-P

Input DDC Signal

5.0 Volts P-P

I/​O CONNECTORS

Transmitter

Inputs

1 HDMI-A 19PIN Socket

Outputs

1 RJ45 Jack

1 3.5mm Jack-IR Emitter

Receiver

Inputs

1 RJ45 Jack

1 IR Receiver Module

Outputs

1 HDMI-A 19PIN Socket

MECHNICAL

Transmitter

Dimensions (H-W-D)

162.3×114.85x30mm

Weight

0.5kg

Receiver

Dimensions (H-W-D)

162.3×141.85x30mm

Weight

0.5kg

WARRANTY

Limited Warranty

1 Year Parts and Labor

ENVIRONMENTAL

Operating Temperature

0° to 40°C (32°to 104°F)

Operating Humidity

10% to 85% (Non-condensing)

Storage Temperature

-20°to +60° (+20°to +140°F)

Storage Humidity

10% to 85% (Non-condensing)

REMOTE CONTROL

Infrared

Yes (Sensor on front of receiver)

Pass-through Yes; 38-56kHz frequency range

POWER REQUIREMENTS

External Power Supply

5VDC@2A

Power Consumption

10 Watts (Max.)

SAFETY

Certificate

FCC, CE, RoHS

Power Adapter

UL, CE, CSA, CEC, RoHS

ACCESSORIES

AC Power Adapter x 2

IR emitter x 1

IR sensor/​receiver x 1

Remote Control (IR) x 1

Instruction Manual x 1

FAQs

I’m inputting 1080i resolution from my Foxtel IQ2, yet my display is receiving 720P. Is this correct?
The HDMIIPLR will output in 576P, 720P or 1080P. If your signal is 1080i, it will output 720P on the display.
What was our measured current draw for the transmitter and receiver?
The max. current draw that we measured was 1.1A (5V) for the transmitter and 0.9A (5V) for the receiver.
Is there 3D support?
Please note that the HDMIIPLR does not support 3D
I added a new receiver/​transmitter but I’m getting no picture
If you have added a new spare receiver (HDMIIPLRS) or transmitter to your existing setup and are getting no picture, or an "Invalid Format" message, just makesure that your source device is set to output either 720p or1080p.

Related Products

HDMIIPLRS SPARE RECEIVER FOR HDMIIPLR (Discontinued)

Features

Receiver Only: The HDMIIPLR HDMI over CAT6 Extender will send HDMI signal (up to 1080p@60Hz) with Deep Colour support over a single CAT6 cable to a distance of up to 100 metres.

Use the HDMIIPLR and the HDMIIPLRS Spare Receiver to create a system with up to 16 Sources (Transmitters) and 200Outputs (Receivers)! IR Pass-through means no more running aseparate IR extender system to control your sources.


  • HDCP Compliant
  • Distribute HD signals in 576p / 720p / 1080p usinga CAT6 cable
  • 1080p resolution up to 100m/​330ft
  • Create a transmitter/​receiver cascade to extend distance and build up a HDMI splitter system
  • Easy installation via a single CAT6 cable
    – no need to adjust gain or equalizer settings
  • IR pass-through function to switch HDMI source device, IR frequency range: 38-56kHz
  • High quality metal chassis
  • No video quality loss
  • VESA compatible mounting holes
  • LED source input display
  • IR Remote control for changing receiver source

Demo Video

Specifications

Video Amplifier Bandwidth 225 MHz
Video Output 1080p/​60 and 1920×1200 max. res
Input DDC Signal 5 Volts p-p (TTL); Input Video Signal: 1.2 Volts p-p
HDMI Connector Type A, 19 Pin Female
Link Connector RJ45 Shielded
Power Supply 5V DC / Power Consumption: 5 Watts max.
Operating Temperature 0°C – 40°C

PERFORMANCE

Accepted HDTV Resolutions

480p, 576p, 720p, 1080i, 1080p

Standard TV Resolution

480i

Maximum HDMI Cable Length

Input: 15 feet Max, Output: 180 feet Max

Video Bandwidth

6.95Gbps

Input Video Signal

1.2 Volts P-P

Input DDC Signal

5.0 Volts P-P

I/​O CONNECTORS

Transmitter

Inputs

1 HDMI-A 19PIN Socket

Outputs

1 RJ45 Jack

1 3.5mm Jack-IR Emitter

Receiver

Inputs

1 RJ45 Jack

1 IR Receiver Module

Outputs

1 HDMI-A 19PIN Socket

MECHNICAL

Transmitter

Dimensions (H-W-D)

162.3×114.85x30mm

Weight

0.5kg

Receiver

Dimensions (H-W-D)

162.3×141.85x30mm

Weight

0.5kg

WARRANTY

Limited Warranty

1 Year Parts and Labor

ENVIRONMENTAL

Operating Temperature

0° to 40°C (32°to 104°F)

Operating Humidity

10% to 85% (Non-condensing)

Storage Temperature

-20°to +60° (+20°to +140°F)

Storage Humidity

10% to 85% (Non-condensing)

REMOTE CONTROL

Infrared

Yes (Sensor on front of receiver)

Pass-through Yes; 38-56kHz frequency range

POWER REQUIREMENTS

External Power Supply

5VDC@2A

Power Consumption

10 Watts (Max.)

SAFETY

Certificate

FCC, CE, RoHS

Power Adapter

UL, CE, CSA, CEC, RoHS

ACCESSORIES

DC Power Adapter 5V 2.5A x 1

IR sensor/​receiver x 1

Remote Control (IR) x 1

Instruction Manual x 1

Connection Diagrams

FAQs

I’m inputting 1080i resolution from my Foxtel IQ2, yet my display is receiving 720P. Is this correct?
The HDMIIPLR will output in 576P, 720P or 1080P. If your signal is 1080i, it will output 720P on the display.
What was our measured current draw for the transmitter and receiver?
The max. current draw that we measured was 1.1A (5V) for the transmitter and 0.9A (5V) for the receiver.
Is there 3D support?
Please note that the HDMIIPLR does not support 3D
I added a new receiver/​transmitter but I’m getting no picture
If you have added a new spare receiver (HDMIIPLRS) or transmitter to your existing setup and are getting no picture, or an "Invalid Format" message, just makesure that your source device is set to output either 720p or1080p.

Related Products

HDMIC6 HDMI OVER DUAL CAT6 EXTENDER (Discontinued)

Features

The HDMI extender includes two units: transmitter & receiver units. The Transmitter is used to capture the inputHDMI signals and carries the signals through two RJ-45 connectors into two low cost CAT6 cables. The receiver is responsible for equalizing the sent TMDS multimedia data.

We recommend the use of our DOSS TWIN CAT5E cable. It is insulated in a Black PVC Jacket and contains 2x CAT5E cables.

This is great for dual CAT5 HDMI Extenders as one cableis easier to install than two, and unique colouring allows easy identification of data lines.

Click here to see the product…

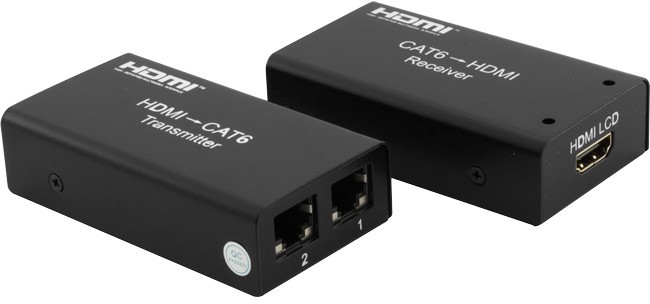

45M 1080p HDMI OVER DUAL CAT6 EXTENDER

Features

  • Easy to use: Install in seconds, no need for advanced settings adjustments.
  • One pair (transmitter and receiver) supplied as a fullfunctional module.
  • Use UTP LAN cable (CAT6) to substitute HDMI cable to achieve long distance transmission.
  • UTP cable termination follows the standard of IEEE-568B.
  • Transmission distance reaches up to 45 metres under the video format of 1080P.
  • LED indicators to show the power and video signal status.
  • HDCP compliant.

Specifications

  • Video Format Supported:
    • 1080P
    • 1080i
    • 720P
    • 576P
    • 480P
    • 576i
    • 480i
  • Transmission Length: 45m MAX @ 1080P
  • Compression Rate: 2.25Gbps
  • Operating Temperature Range: -15 to +55°C (-41 to +95°F)
  • Operating Temperature Range -5 to +35°C (-41 to +95°F)
  • Operating Humidity Range: 5 to 90 % RH (no condensation)
  • Input Video Signal: 5 volts p-p (TTL)
  • Power Supply: 5VDC
  • Dimensions (WxHxD): 83mm x 46mm x 23mm
  • Weight: 0.22 Kg

FAQs

Q: The description says it uses CAT6 cable, but you recommended CAT5e cable – what’s the deal?
A: Over 40m there is not a big difference between CAT5e and CAT6 cable. Not to mention the built-in electronics of the HDMIC6 compensates for signal transmission losses etc. So inshort, CAT5e cable will work just fine – plus it’s cheaper!

Related Products

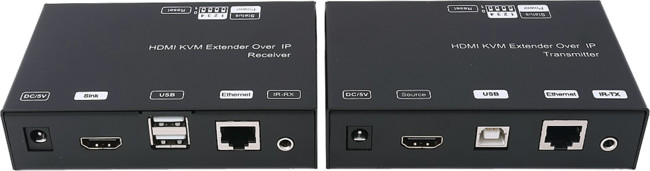

HDMIKVM HDMI USB KVM EXTENDER OVER IP

Features

  • 1080p and 720p video compatible, plus 2-channel audio
  • Uses off-the-shelf gigabit IP switches for extension anddistribution
  • Plug-and-play operation-no programming or setup required
  • Extends 1080p HDMI signals up to 120m over a single Cat5e/​6 cable
  • Traffic can be unicast, multicast or broadcast for different applications
  • Build-in DIP swith to change Group ID for multiple displays
  • Can be cascaded for many layers by daisychain Ethernet switches
  • Allows wide-band IR (38-56KHZ) remote control of sources devices
  • HDCP Compatible
  • Supports USB
  • DC 5V Power supply (included)

Wiring Diagram

Specifications

Operating Temperature Range −5 to 35°C
Operating Humidity Range 5 to 90%RH (No Condensation)
Support Video Format DTV/​HDTV:480i/​576i/​480P/​576P/​720P/​1080i/​1080P
Output Video HDMI, HDCP
Transmission Distance 1080P @60Hz 120m (Maximum) over single CAT5E/​6 / 24AWG/​Solid
Power consumption 5V/​1A DC Power consumption: Max. 4W
Dimension (L×W×H) L94xW93.5xH24.6mm
IR frequency range 38-56kHz
Net Weight Receiver:255g, Transmitter:255g
TX Default IP address:192.168.168.55;
MAC address:00:0b:78:00:60:01
Group IP address: 239.168.168.xx, (xx is the value of bits[2:0])
RX Default IP address:192.168.168.56;
MAC address:00:0b:78:00:60:02
Group IP address: 239.168.168.xx, (xx is the value of bits[2:0])

Note: IP and MAC address must be different for one TX to many RX or many TX to many RX configuration.

HDC6ECO HDMI OVER SINGLE CAT6 EXTENDER

Features

  • Each set includes one transmitter and one receiver
  • Easy installation, no need to do extra setting
  • Transmit HDMI signal over 50m via single Cat5e/​6 without signal loss
  • The CAT5e/​6 follows standard of IEEE-568B
  • Support high definition resolution up to Full HD 1080p
  • Support Dolby True-HD, DTS-HD Master audio
  • EDID reading and saving from display
  • Bandwidth can be up to 6.75 Gbps
  • Deep colour up to 36 bit
  • 3D compatible
  • 2x DC 5V 1A power supply (included)
  • 4K/​2K incompatible
Got the right cable?

Please note: IEEE-568B standard cables are recommended for this kit.

Wiring diagram

Specifications

Operating Temperature Range −5 to +35°C
Operating Humidity Range 5 to 90%RH (No Condensation)
Input Video Signal 0.5-1.0 Volts P-P
Input DDC Signal 5 volts p-p (TTL)
Support Video Format DTV/​HDTV 480i/​576i/​480P/​576P/​720P/​1080i/​1080P
3D video
Video Output HDMI, HDCP
Support Audio Format DTS-HD Master Audio Dolby True-HD etc.
Transmission Distance 1080P 8-bit 50m (Maximum) over single CAT5E/​6 / 24AWG/​Solid
Power consumption 5 watts (Maximum)
Dimension (L×W×H) 83x48x25mm
Net Weight 250g (Pair)
