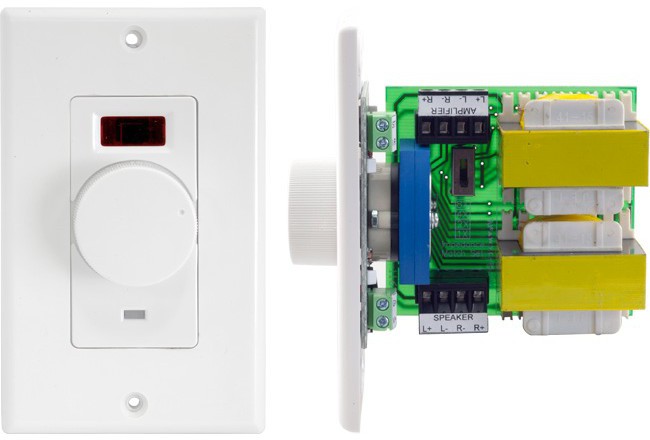

The PRO1161 is a wall mount stereo speaker-level volume control with built-in IR receiver. It connects between the speaker outputs of an amplifier or receiver and a pair of speakers.

The PRO1161 matches thes the minimum output impedance of the amplifier or receiver, in addition to adjusting the volume. Therefore it eliminates the need for a speaker selector or for impedance matching equipment.

• Impedance: Variable from 1-8 ohm
• Rotary volume control and speaker on/​off
• IR receiver
• LED indicator for source component with on/​off status
• Impedance matching
• Fits standard face plates

[ click for larger view ]

Specifications:

• Power handling: 300 watts max / 100 watts RMS continuous
• Input impedance: Config. to 1x, 2x, 4x, or 8x impedance matching
• Quick connect terminals: Accepts up to 12-gauge wire
• Attenuation: 12 steps including off
• Total attenuation: 54 dB
• Frequency response: 20 Hz ~ 20 KHz ±2 dB at rated power
• Mounting: fits most single-gang junction boxes
• Dimensions: 42 (W) x 103 (H) x 103 (D) mm
• Weight: 456 g
• IR component:
  • Receiver frequency: 34 KHz to 40 KHz
  • Transmit frequency: 34 KHz to 40 KHz
  • Range on-axis: 55 ft. to 80 ft.
  • Range off-axis: 30 ft.
  • Main power: 12 V DC 31 mA max
  • Status power: 12 V DC 3 mA max
  • Wire requirements: 2 twisted pair, with or without shield

• 12 steps 100W maximum stereo wall mount autoformer volume control
• Impedance matching
• Standard size wall plate
