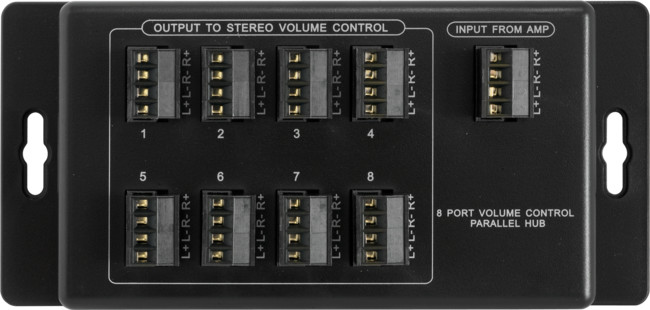

PRO1257 VOLUME CONTROL PARALLEL SPEAKER HUB
Features:
- 8 way speaker hub
- Volume control in up to 8 rooms
- Light weight
- Screw terminals handle wire sizes form 24 to 12 gauge
- Wall mountable
- Small size and compact
-
Large detachable terminal block (supplied) for quick and easy installation in a structuredwiring
cabinet
Specification:
- Dimensions:196L x 94W x 29.5H mm
- Weight: 198 g
Installation considerations:
- Calculate the impedance Matching settings.
-
Ensure optimal operation of your amplifier or receiver, your speakers must show it a
load that it can handle safely and effectively. This requires the use of impedance-matching
volume controls.
Cautions:
-
Every speaker pair in the system must be connected to an impedance-matching volume
control and set to the same magnification. -
When you install the HUB and connect the volume controls to it, double check the switch
on the volume controls to verify that they are set correctly for the impedance load of your
speakers.
