Browsing SPEAKER SWITCH BOXES

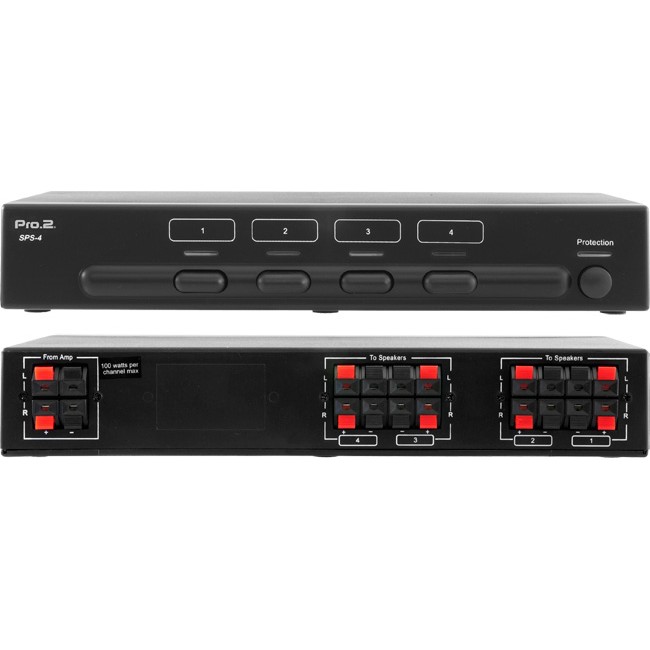

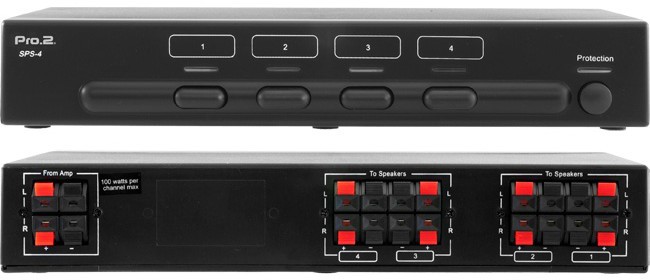

SPS4 4 WAY SPEAKER SELECTOR

The Pro2 SPS4 has been designed to let you add additional speakers around your home or office and turn them on withoutpurchasing additional amplifiers.

Features

  • Ability to add up to 4 speaker pairs to your amplifiers
  • Left and right "commons" are isolated to work with alltypes of amplifiers
  • Protection for amplifier and unit
  • Small size to fit with any system
  • No power required for operation
  • Easy Installation
  • Can handle up to 100 watts amplifier power with uniqueprotection circuitry

Specifications

  • Input: 100 Watts per channel max
  • Outputs: 4 speaker pairs (4 to 16 ohmimpedance)
  • Protection Circuit
    • Amplifier Protection: 3 Ω resistor per channel
    • Unit Protection: Automatic resetting poly switch
  • Wire Gauge: 14 to 22 gauge
  • Size: 298 (W) x 165 (D) x 50 (H) mm
  • Weight: 1.3kg

In the box

  • SPS4 selector
  • User Manual
  • Sheet of front panel labels
  • Sheet of rear panel labels

Related Products

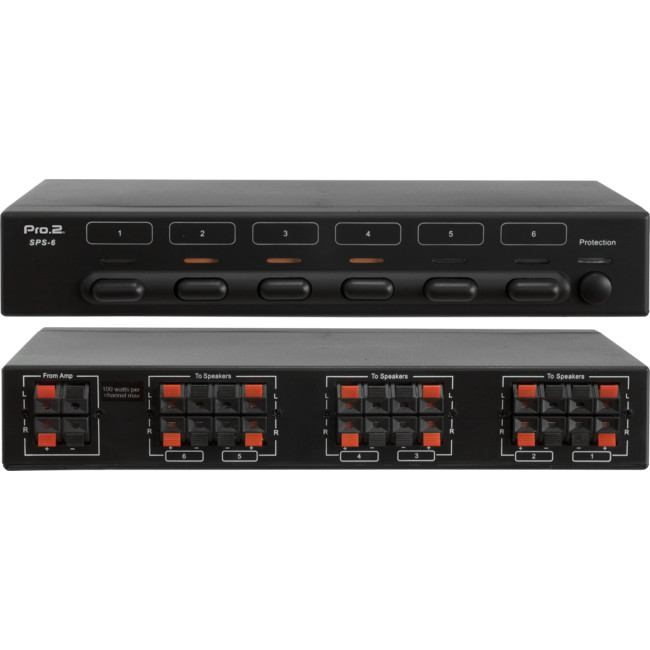

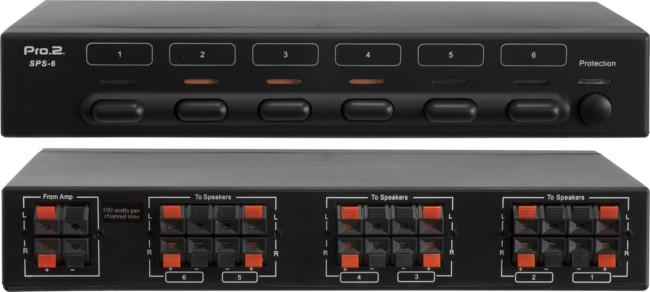

SPS6 6 WAY SPEAKER SELECTOR

6 Way Speaker Selector
Switch between 6 speaker pairs with one connection to your amplifier
  • Inputs for 6 speakers with L/​R input
  • Protection for amplifier and unit
  • No power required for operation

Specifications:

  • Add up to 6 pairs of speakers to your stereo system
  • Connects to any receiver or amplifier
  • Includes 80 room labels
  • Amplifier protection circuitry
  • High power handling: 100 Watts per channel
  • Frequency response: 20Hz to 20KHz ±0dB

Related Products

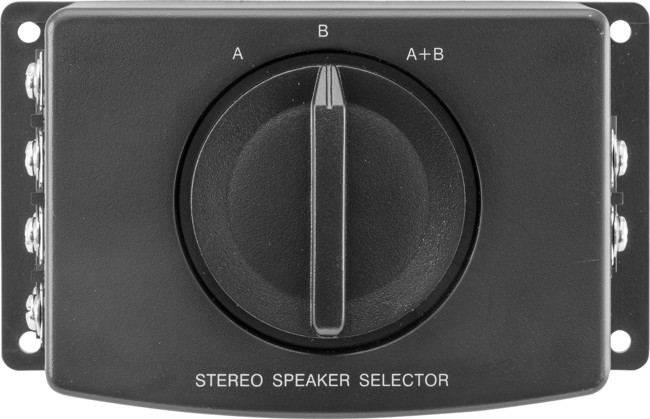

PRO1001 2 WAY STEREO SPEAKER SWITCH

Switch an audio source from Speaker Set A to Speaker Set B or Combine Both (A+B Speakers), without overloading the trasistor output stages. This can be useful if you have speakers wired to another area in your home but have one audio source.

Features

  • 1 input to 2 outputs
  • Select Speaker Set A, B or A+B (please check for impedance compatibility with your amplifier when using A+B)
  • Left (+/​-) & Right (+/​-) screw terminals for amplifier input
  • Select output to speakers set 1, speaker set 2, or both sets at the same time
  • 10 watts per channel
  • 1 Speaker on, 2 Speakers on OR All Speakers on
  • Designed with non-shorting selector switch so you can select between two speaker systems without overloading the output stages

Specifications

  • Audio power handling: 10 watts / channel continues music power
  • Frequency response: 0.1 dB, from 20 Hz to 20kHz
Note: Impedance restriction for total speakers is 4 ohm. Therefore, you should ensure your system or amplifier will accept a 4 ohm load at the speaker output. Please find impedance chart from user manual at download section

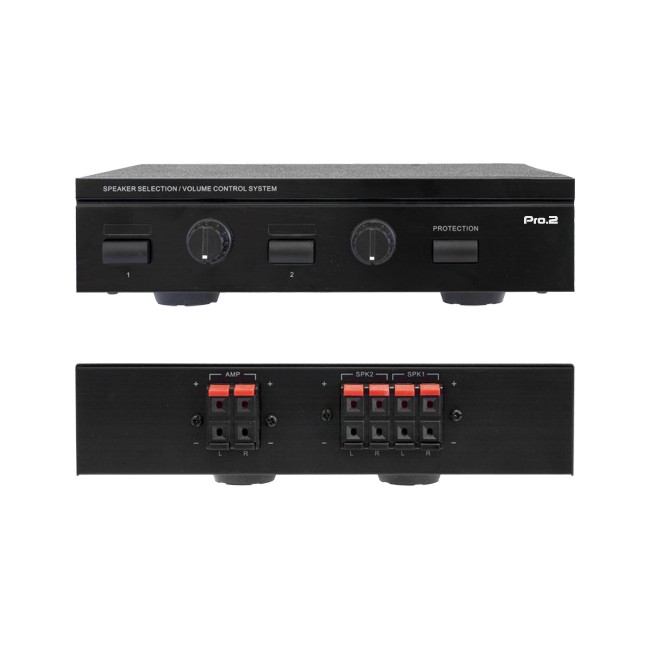

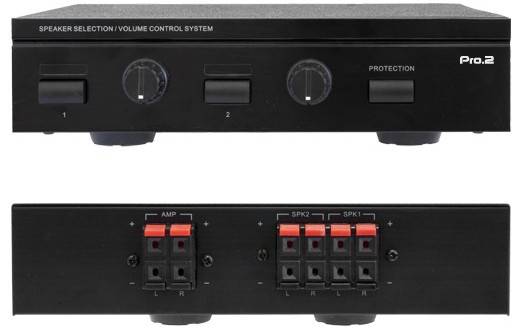

SPS2A 2 WAY SPEAKER SELECTOR/ SWITCH

Features

PRO2 50W RMS x 2 WAY SPEAKER SELECTOR WITH VOLUME CONTROL

Controls two pairs of speakers. The SPS2A is fitted with separate volume controls, speaker on / off, and speaker protection on/​off switches.

The SPS2A allows independent volume control and on / off capability for up to two pairs of speakers. You choose where and how loud the music is in a particular location, without effecting the entire system. The speaker selection / volume control system is equipped with premium 10-step volume controls that maintain full 30dB dynamic range givingyou the maximum adjustment capability.

  • 50 Watts RMS per channel
  • High quality, durable metal cabinet
  • Push-type speaker terminals x 12 (Amp L&R in, Speaker 1 L&R and Speaker 2 L&R out)
  • Speaker 1 and Speaker 2 individual on/​off switches
  • Speaker 1 and Speaker 2 individual volume control knobs
  • Speaker protection (impedance correction) circuit with on/​off switch
    • Playing 2 pairs of speakers (8ohms), set protection to out position
    • Playing 2 pairs of speakers (4ohms), press in protection button

Specifications

  • Power handling: 50 Watts RMS per channel
  • Attenuation (Volume): 10-position volume control
    • 1st position (fully counter clockwise): Volume off
    • 2nd and 3rd position: attenuate 6dB per step (6dB increase in vol)
    • 4th to 9th position: attenuate 3dB per step (3dBincrease in vol)
    • 10th position: Maximum volume
  • Channel separation at 1 KHz: 38dB normal
  • Cross talk between channels at 1 KHz: 50dB normal
  • Speaker terminal wire size: 14-22 AWG
  • Dimensions: 218 (W) x 150 (D) x 55 (H) mm
