RFD2169 RF MODULATOR & PAL CONNECTOR

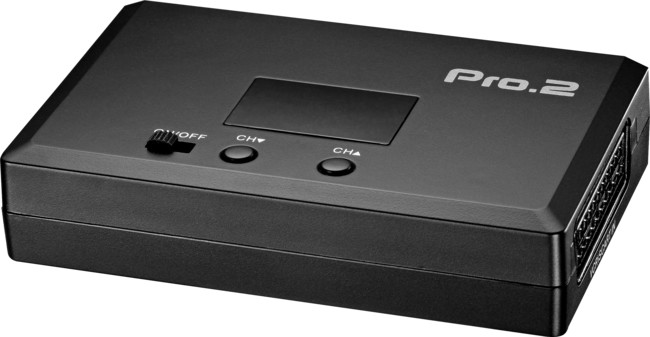

RFD2169 Video Modulator

The ultimate universal AV modulator. Connect any AV device via SCART / Composite AV / or RF and output to any television with an RF or SCART input. The RFD2169 is also anideal solution for "Cascade Surveillance" systems.

  • Adjustable Channels
  • Channels 21~69
  • 2 Seven Segment LEDs Display
  • SCART In / Composite In
  • SCART out (Loop Through, Input Video)
  • PLL Control Circuitry
  • Antenna Input
  • RF Output: 72dBuV + 3dB
  • Last Channel Memory
  • Compact Size:
    27 (H) x 120 (W) x 70 (D) mm

Related Products

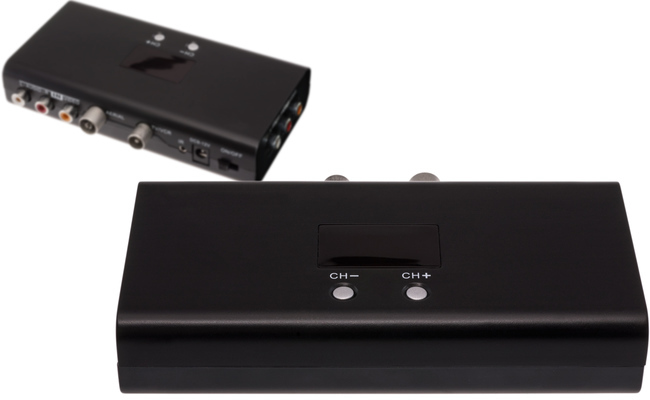

RFD2169BF RF MODULATOR & ‘F’ CONNECTOR

Features

Insert your favorite video program, such as DVD, Satellite Receiver, Digital Set Top Box etc. to a TV withoutRCA connector through this RFD2169BF Video RF Modulator and you can also share to several TV’s in your home through your RF distribution network.

  • High power RF output: 72dBuV ±5dB
  • SCART Input/​output and 1 RCA input
  • Antenna input
  • Antenna output (TV)
  • DC power supply input
  • ON/​OFF switch
  • Channel Adjustment (Up/​Down key)
  • LED Channel Number display

Connections

Specifications

  • RF Input: 45~862MHz
  • Input Connector: F Female,75 Ohm
  • Output: CH 21-69
  • Output (combined): 45~862MHz
  • Output connector: F Female,75 Ohm
  • Video & Audio
  • Input: RCA/​SCART
  • Output: SCART (Loop Through)
  • Video Input impedance: 75~1.3K ohm
  • Video S/​N: 40dB min
  • Audio Input impedance: 10K
  • Ohm Powering: 9V

DC Accessories:

  • AC Adaptor x 1: 240VAC (9V DC @ 200mA)
  • RF Cable: F Male—>IEC Female @1m

Related Products

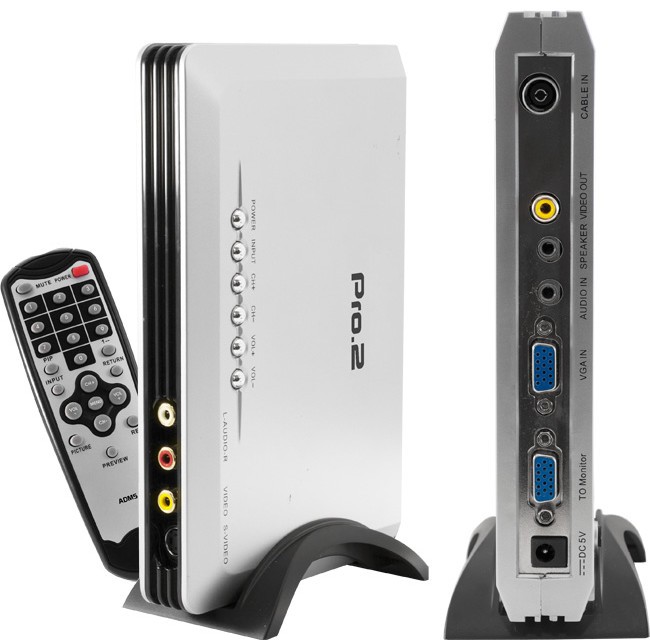

ADM5 ANALOGUE DEMODULATOR COMPOSITE

The ADM5 offers the perfect solution for all your LCD, PDP and projector to be a multi-media display. It also lets you turn any display into a high definition full screen TV and multi-media display centre. The ADM5 offers multiple video input/​output connections compatible with modern equipment like DVD players, digital cameras, game consoles and more…

Features:

  • 1920×1200, 1920×1080 Support
  • PIP (Picture in Picture)
  • POP (Picture on Picture)
  • Supply High Resolution
    • Compatible with monitors, LCD and projectors with resolutions up to 1920×1200 for 24bit RGB true color.
  • System Support
    • Supports the following TV systems: NTSC, PAL-I, PAL-D/​K, PAL-B/​G, SECAM-L, SECAM-D/​K and SECAM B/​G
  • Great TV Video Technology
    • Supports de-interlace and progressive scan
  • Superior Noise Reduction
  • Video Entertainment on your PC
    • Supports: RF, S-Video, Composite RCA, VGA
  • Easy to use remote control
  • Auto Scanning
    • All channels scan of TV broadcast ad cable TV channels. Also supports full channels with fine tuning function
  • Sleep timer
  • Back Mounting

Specifications:

Frequency 55.25~801.25MHz (NTSC) / 48.25-855.25MHz (PAL)
Connector
Input 75 ohm Coaxial TV antenna/​cable
S-Video
One composite video, RCA left/​right for Audio in
3.5mm Audio (from sound card)
15-pin H-D female connector (from VGA card)
Output Video Output
3.5mm Audio Jack (to speaker)
15-pin H-D female connector (from VGA card)
Power DC-In Jack
Controls
Physical POWER, INPUT, CH+, CH-, VOL+, VOL-
OSD RE-SET, TINT, Brightness
Remote Control 24-Key IR Remote Control
Video Output Mode
Resolution@refresh rate 800 x 600 @60Hz
1024 x 768 @ 60Hz / 75Hz
1280 x 720 @ 60Hz / 75Hz
1280 x 1024 @ 60Hz / 75Hz
1440 x 900 @ 60Hz / 75Hz
1600 x 900 @ 60Hz
1680 x 1050 @ 60Hz
1920 x 1080 @ 60Hz
1920 x 1200@ 60Hz
Power
Input 100-120 VAC, 60Hz 220-240 VAC, 50Hz
Output 5 Vdc / 1A (U.L, CE)
Type Power Adapter
Regulations FCC Class B, CE
Accessories Main unit, plastic stand, remote control
AC/​DC adapter, VGA cable, audio cable
AAAx2 batteries, Manual

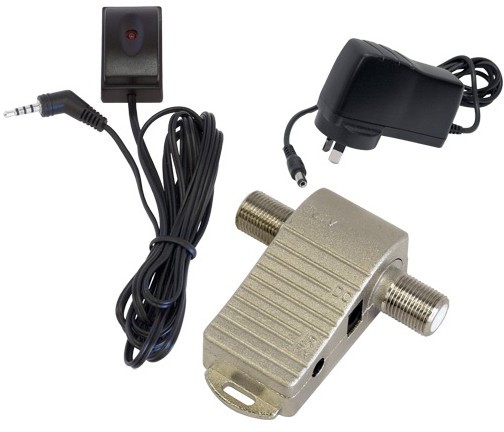

RFD2169IR RF MODULATOR WITH IR RETURN

Features

Distribute your AV equipment to multiple TVs through yourhome using RF Coaxial cable! Due to the digital switch-over, many analogue TV channels will be available to utilize, so you can insert your AV source through this modulator feed into your existing home RF distribution network. With IR return function, you can even control your AV device withouthaving to be in the same room or leaving cabinet doors open.The IR signal from your existing remote is modulated throughthe RF distribution network back to modulator where it is re-trasmitted via the adjustable IR emitter.

  • RCA Input and Loop-out
  • Channel Adjustment (Up/​Down button)
    • LED Channel Number display
  • PAL Antenna Input/​Output
  • IR Return—control your AV equipment with the original remote
    • Adjustable and self-adhesive IR Emitter and Target
  • DC power supply included

Package includes

  • RFD2169IR Main unit x1
  • IR Emitter x1
  • IR Tx Unit x1
    • With fixed IR Receiver
  • AC/​DC Adaptor x 1
    • 12V DC / 250mA
  • RF cable x2
    • PAL Plug to Socket

Specifications

.rpg_table { border-collapse: collapse; margin: 15px; } .rpg_table th, .rpg_table td { padding: 5px; line-height:22px !important; } .rpg_table td, .rpg_table th { text-align: left; vertical-align: top; border-top: solid 1px #cccccc; border-bottom: solid 1px #cccccc; } .rpg_table th, .rpg_table .header { font-weight: bold; text-align: left } .rpg_table th[align=center], .rpg_table td[align=center] { text-align:center !important; } .rpg_table .spacer { border: 0 !important; width:15px !important; } .rpg_table .no-wrap { white-space: nowrap !important; }
Main Unit Input 45~862 MHz
Input Connector PAL (IEC) Female, 75 Ω
Output CH 21~69
Output (combined) 45~862 MHz,
10~20 MHz (IR return)
Output Level 75 ± 5dBµV
Output connector PAL (IEC) Male, 75 Ω
AV Input RCA
AV Output RCA Loop through
Video Input impedance 75~1.3 kΩ
Video Input Level 1 Vpp
Video S/​N 42dB min
Audio Input impedance 10 kΩ
Audio Input Level 0.4V
Powering 12V DC
IR Output 2.1mm mono jack
Adjustable IR Emitter
IR carrier frequency 30~60 kHz
IR RF frequency 7 MHz
IR Receiver IR carrier frequency 30~60 kHz
IR RF IF frequency 7 MHz
IR RF Output level 40dBmV
IR RF Distance 100m (Maximum)

Downloads

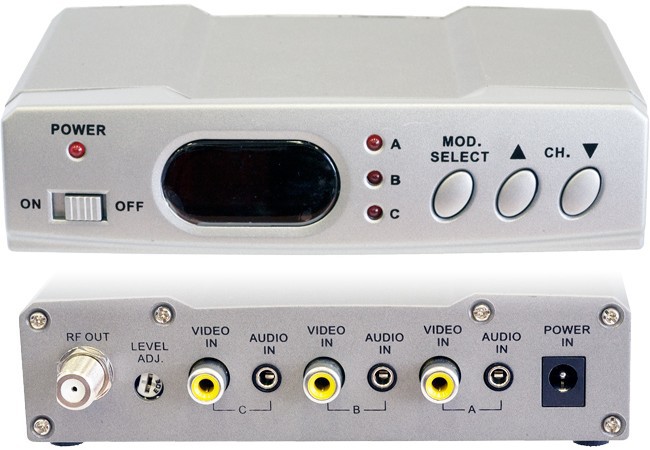

RFMX3 3 INPUT RF MODULATOR

RFMX3 INPUT RF MODULATOR

Specifications:

  • Triple Audio/​Video Input, modulation & mixed output
  • Digital display for UHF/​CATV channels & UHF/​CATV status
  • LED indication triple AV Input
  • Channels up/​down selecting by buttons
  • UHF/​CATV channels selecting by slide switch
  • RF Output level adjustment
  • TV system: PAL G/​I/K
  • Video input: 1Vpp@75Ω
  • Audio input: 0.775V@10kΩ
  • RF output channel: CH21-CH69
  • RF output level: 84dBμVmax (Picture Carrier), 0~-15dB adj.
  • Audio Sub-carrier: 5.5MHz
  • Audio Carrier O/​P Level: 12dB
  • Video Input Port: RCA Jack
  • Audio Input Port: 3.5mm Stereo Jack
  • RF Out Port: F- (f)
  • Power Supply: 9V DC 300mA
  • Small and compact aluminum housing design
  • High stability PLL technology

Related Products

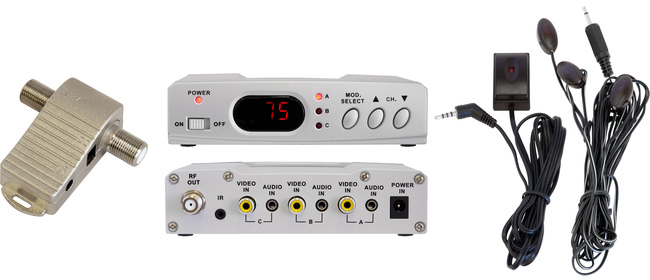

RFMX3IR 3 INPUT RF MODULATOR
