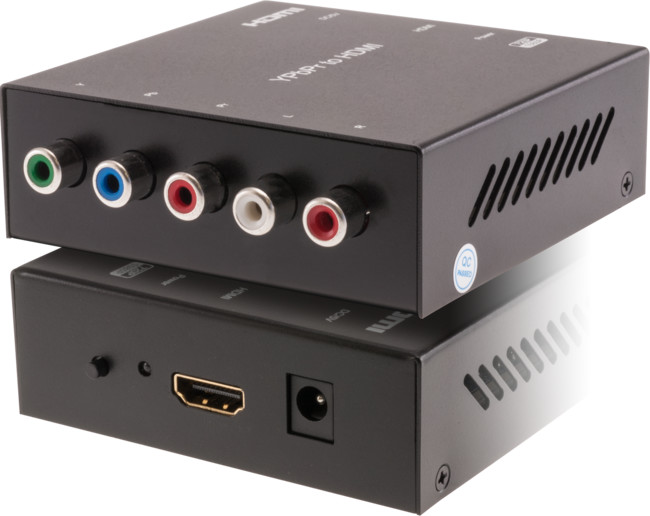

YH02 YPBPR STEREO TO HDMI CONVERTER

Features

  • Easy to use: Install in seconds, no need for user configuration
  • Converts Component (YPbPr) and Stereo Analogue audiointo HDMI
    • Upscales Component resolutions to 1080P HDMIwith PCM audio
  • HDCP compliant
  • Includes 5V power supply

Specifications

  • Operating Temperature range: -15 to +55°C (-41 to +95°F)
  • Operating temperature range: -5 to +35°C (-41to +95°F)
  • Operating humidity range: 5 to 90 % RH (no condensation)
  • Power Consumption: 1 Watts (max.)
  • Power Supply: 5VDC
  • Dimensions: 95mmW x 29mmH x 87mmD
  • Weight: 190g

Downloads

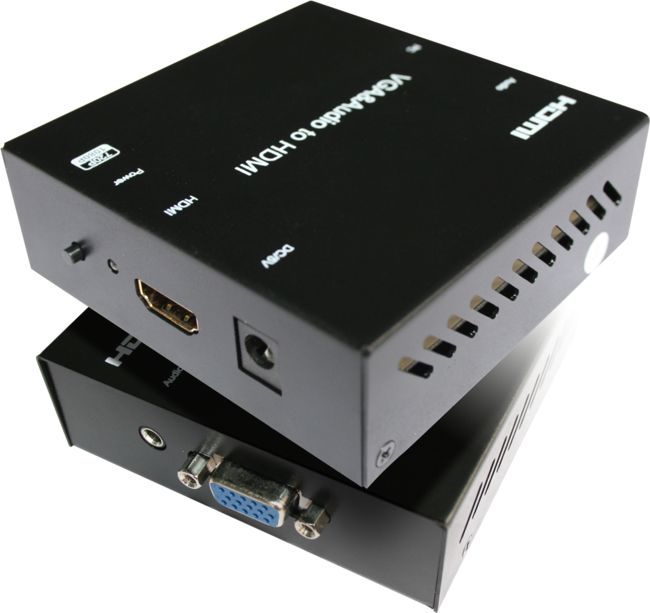

VH03 VGA STEREO TO HDMI CONVERTER

Features

The VH03 upscales VGA to 720p/​1080P (user-selectable).

  • Converts computer VGA video signal and audio to HDMI output
  • Hardware conversion, plug and play without software or drivers
  • HDMI output: 720P or 1080P (output selectable via push-button)
  • HDCP 1.1 protocol compliant
  • LED power indication

Specifications

.rpg_table { border-collapse: collapse } .rpg_table th, .rpg_table td { padding: 5px; } .rpg_table td, .rpg_table th { text-align: left; vertical-align: top; border-top: solid 1px #cccccc; border-bottom: solid 1px #cccccc; } .rpg_table th, .rpg_table .header { font-weight: bold; text-align: left } .rpg_table th[align=center], .rpg_table td[align=center] { text-align:center; }
HDMI resolution HDMI 720p@50/​60Hz or 1080P@50/​60Hz
Transmission bandwidth 5.1Gbps (Max)
Input Video signal 0.5~1.5Volts p-p
Output DDC signal 5.0Volts P-P (TTL) Working
Power 1 Watt
Power adapter

Input: 100~240V AC (50/​60Hz)
Output: 5VDC / 1A

Operating Temperature range (-15 ~ +35°C)
Operating Humidity 5 to 90%RH (No condensation)
Dimension (L×W×H) 95 × 87 × 29mm
Weight 190g

Downloads

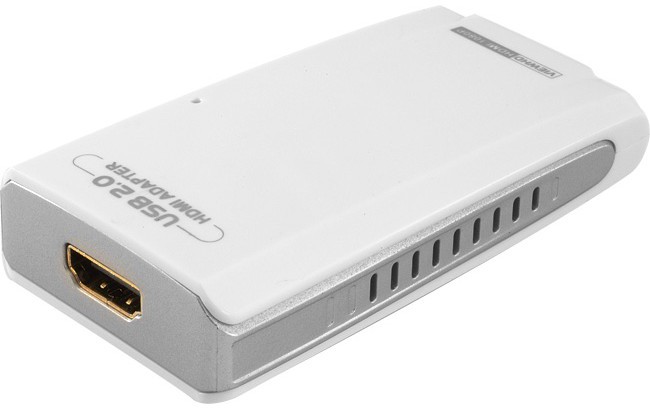

USB2HDMI USB TO HDMI ADAPTOR (Discontinued)

Add up to 6 extra monitors or displays to your computer or add an HDMI (with audio) link between your computer and your home entertainment system.

Features

  • Supports HDMI Audio
  • Resolution supports up to 1920x1080Pixles (1080p) output
  • Works with Windows, Mac, and Linux
  • Desktop modes supported:
    • Mirror / Clone Main display
    • Extend / Span Desktop left, right, above, orbelow
    • Display output be rotated left, right, or upside-down
  • USB 2.0 Powered; Ultra Low Power
  • HD TV or Projector Compatible
  • Standard and Widescreen ratio aspects (4:3 and 16:9)
  • Uses a virtual driver
  • Stackable by design with a small footprint
  • Completely silent operation
  • Onboard power and status indicator LEDs
  • Portable, making it easy for traveling
  • VESA Compliant

Applications

  • Office workstation
    • View your large spreadsheets across two screens with continuous display
    • Multitask more effectively without overlapping windows
    • Edit on one screen while surfing the Internet Information on the other
  • On the road
    • Do multiple screen presentations without bringing another computer
    • Easily provide multiple screen exhibitions in a trade show
  • Graphic workstation
    • Use second display for palettes/​tools
    • Get a panoramic view of large documents
  • Editing workstation
    • Type documents on one screen while viewing reference material on the other
    • Compare two documents simultaneously across two screens
  • Financial analysis
    • Have one monitor per data stream
    • View charts and live data at the same time
  • Entertainment
    • View video/​TV on one screen and reviews on the other
    • Get additional perspectives when playing games
  • Security
    • View a seperate CCTV camera stream on each monitor
    • Can playback recording while live stream still visible on other monitor

Package Content

  • 1x USB Graphic Adapter
  • 1x Driver CD
  • 1x USB Cable
  • 1x Quick Installation Guide
  • 1x DVI to HDMI Adapter

System Requirements & Support

DisplayLink software can be used on PCs, from Notebooks, Notebooks/​Laptops to Desktops. The driver will run on processors ranging from Atom N270 based PCs, basic single Core CPUs, and of course the latest Dual, Quad Core and Corei3 / i5 / i7 CPUs.

The performance of the software is dependent upon the processing power available, as well as the operating system in use. More capable systems offer higher performance.

DisplayLink software supplied is for PCs running one of the following Windows operating systems:

  • Windows 8/​8.1 (32-bit or 64-bit)
  • Windows 7 (32-bit or 64-bit)
  • Windows Vista with Service Pack 1 or 2 (32-bit or 64-bit)
  • Windows XP home or Professional (including Tablet edition) with Service Pack 2 or 3
  • Windows Server 2003, 2008 and 2008 R2
  • Windows 2000 with Service Pack 4
Note: 64-bit editions of XP are not supported

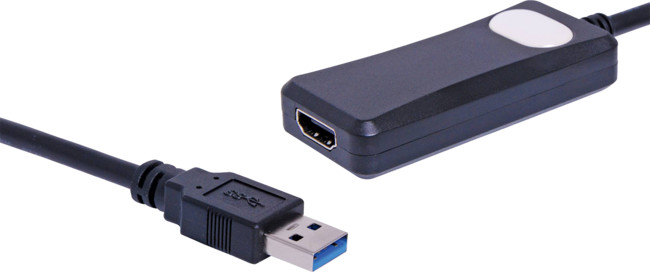

USB3HDMI USB 3.0 TO HDMI ADAPTOR

Features

USB3HDMI is the replacement for USB2HDMI. It is a useful tool to connect multiple displays to your PC via USB port. It has improved speed by using USB3.0 connection and also back compatible with USB2.0. Now it supports up to 2K resolution (2560x 1440)

  • Utilizing 5Gbps Super Speed USB3.0 as a display interface
  • (Plug and Display) Easily connect multiple displays to your Laptop, Macbook or Desktop PC in minutes. (One adapter per display required)
  • Mirror or Extend large Desktop displays to any HDMI monitor or Projector.
  • Expand your workspace and increase your productivity
  • Support up to 2K resolution up to 2560x 1440
  • Robust built-in USB 3.0 cable to maximize durability.Built-in cable is backward-compatible with USB 2.0
  • USB powered – No external power adapter required
  • Supports Windows XP/​7/8/​10, Windows Vista 32 and 64 bit, Mac OS X

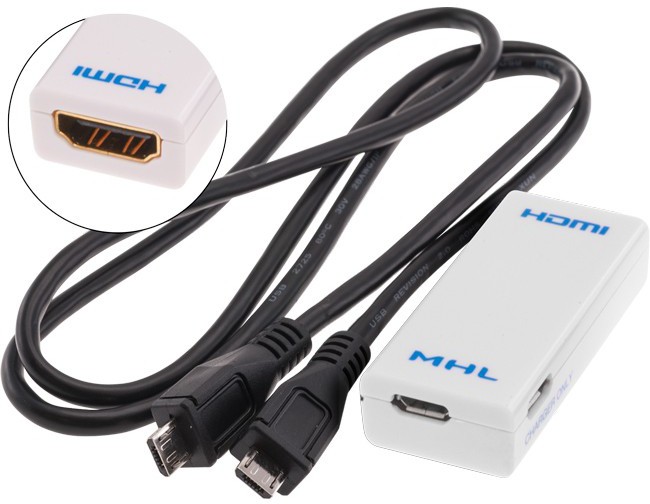

MHL2HDMI MHL TO HDMI ADAPTOR

Connect your MHL (Mobile High-Definition Link) enabled mobile device to your big screen’s HDMI input while a secondary micro-USB / MHL port enables charging!

Features

  • MHL-to-HDMI bridge device
    • Supports HD audio and video connectivity
  • Connections:
    • MHL input (micro-USB 5pin receptacle)
    • Secondary MHL / micro-USB for charging only
    • HDMI output
  • HDMI output resolution support:
    • Up to 1080p@ 24/​30Hz
  • Comes with MHL-to-MHL lead

Supported devices only

Your device must support MHL output with 5-pin connector.Please check the user manual of your device to confirm your device has MHL support or visit this list.

This adaptor is not suitable for use with Samsung Galaxy S III, Galaxy Note II and Galaxy S4 which require a 11-pin connector

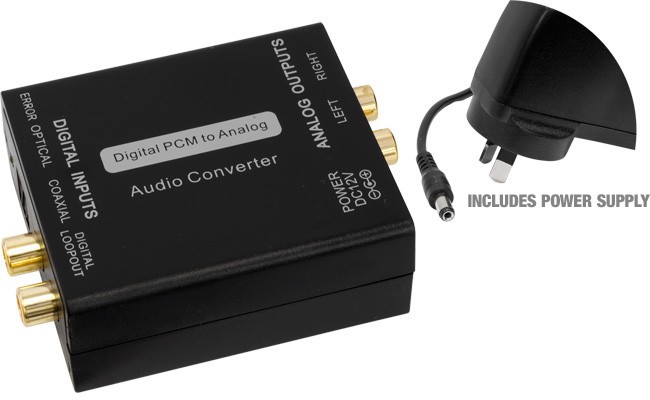

PRO1259 DIGITAL TO ANALOG STEREO AUDIO

Features

  • Digital inputs: Toslink optical or S/​PDIF coaxial
  • Analog outputs: Left & Right
  • Digital loopout

Dimensions

Gross Weight 180g
Net Weight 60g (converter only)
Size 88×63×28mm (incl RCA Sockets)

Note: Due to international patents, certain sound formats, like Dolby, are not supported. Certain televisions (i.e. Samsung Series 6) do not allow the user to change sound options. This might mean that the PRO1259 cannot convert ‘patented’ sound formats affecting certain HD television channels. All standard definition television channels should be unaffected.

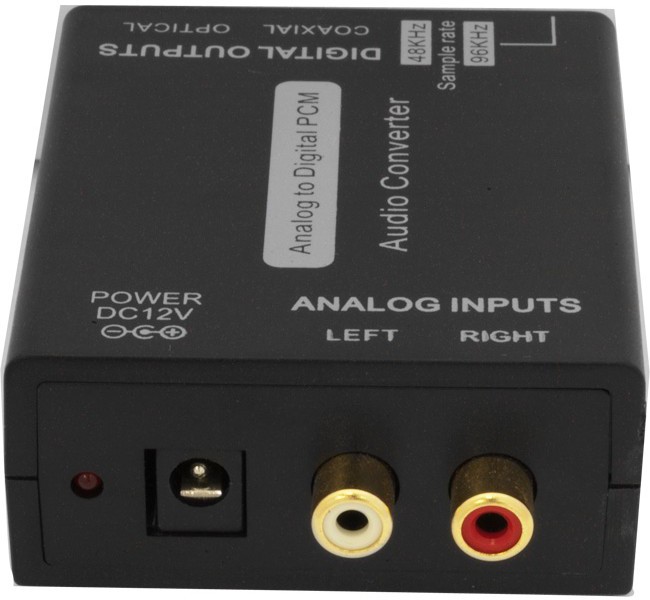

PRO1262 ANALOG STEREO AUDIO TO DIGITAL

This high quality converter converts simple audio signal with no degradation, and supports variable sampling rates for maximum fidelity.

Specifications:

  • Digital audio output format: LPCM
  • Input impedance: 47k ohms
  • Digital outputs: toslink optical or S/​PDIF coaxial
  • Analog inputs: left and right stereo
  • Minimum load impedance: 75 ohms
  • Frequency response: 48/​96Khz sample rate (slide switch)
  • Dimensions: 88.4Lx64.5Wx29H mm
  • Weight: 60g

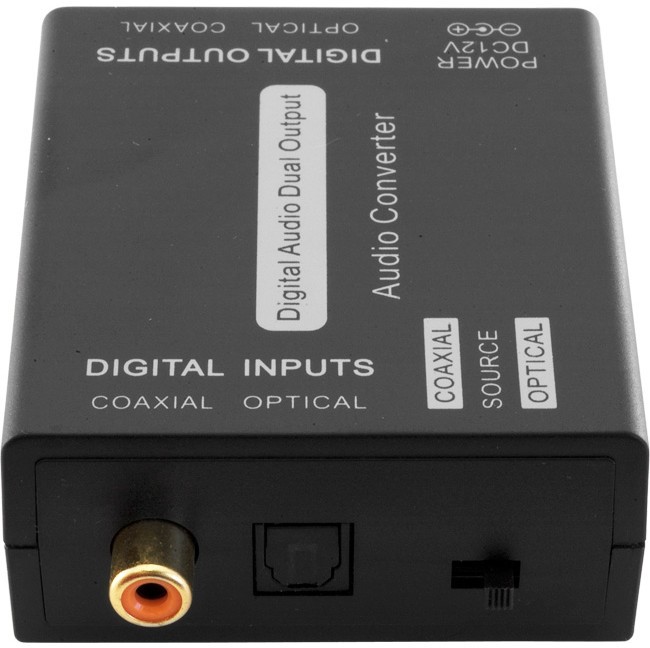

PRO1287 DUAL DIGITAL AUDIO CONVERTER

Features
  • Supports conversion of Coaxial to TOSLINK or TOSLINKto Coaxial
    • Input selectable via switch
  • Supports multichannel audio
  • Outputs on both output ports simultaneously
  • Power supply included
Specifications
  • Input: 1x Coaxial RCA Jack & 1x TOSLINK (optical) port
  • Output: 1x Coaxial RCA Jack & 1x TOSLINK (optical) port
  • Coaxial RCA Input impedance: 75 ohms
  • DC Input Connector: 5.5 x 2.1 x 9.5mm
  • DC Input Voltage/​Polarity: 12V / Centre positive
  • Dimensions: 88.4L x 64.5W x 29H mm
  • Weight: 54g (unit only)

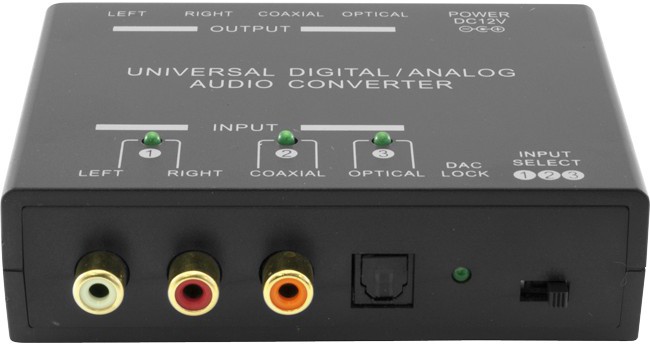

PRO1298 DIGITAL/ANALOG AUDIO CONVERTER

SPECIFICATIONS

Analog To Digital Converter (ADC):

  • Digital Output Type: Coaxial & Optical
  • Digital Audio Output Format: LPCM
  • Input Impedance: 47K ohms
  • Minimum Load Impedance: 75 ohms
  • Frequency Response: 96KHz sample rate

Digatal To Analog Converter (DAC):

  • Digital Input Type: Coaxial & Optical
  • Support Digital Audio Format: LPCM
  • Input Impedance: 75 ohms
  • Minimum Load Impedance: 10K ohms
  • Frequency Response: 32 – 192KHz sample rate

Note: Due to international patents, certain sound formats, like Dolby, are not supported. Certain televisions (i.e. Samsung Series 6) do not allow the user to change sound options. This might mean that the PRO1298 cannot convert ‘patented’ sound formats affecting certain HD television channels. All standard definition television channels should be unaffected.

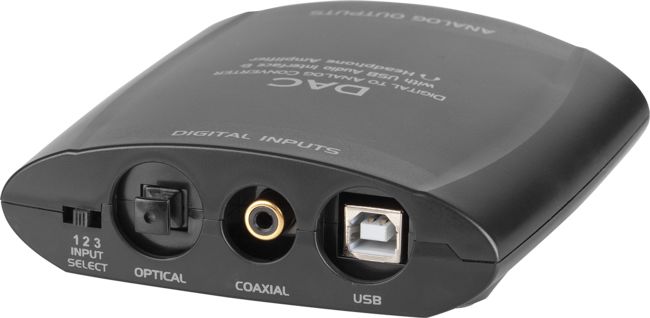

DAC32 DIGITAL AUDIO CONVERTER

This converter takes a Toslink optical, SPDIF coaxial or USB digital audio source and converts it to standard analogue left and right stereo audio. Allows for digital audio devices to be interfaced to analogue components such as a power amplifier, receivers, powered speakers or headphones via standard RCA line level output. It has a built in OP amp with adjustable volume control for personal listening through earphones or headphones.

Applications

  • TV optical output to external analog input speakers
  • Computer to external speakers with L&R RCA inputs
  • CD players to analog input sound system

Features

  • Built-in Op-amp with adjustable level control
  • Bridge legacy sound system with digital sources
  • Support up to 24bit / 192kHz via to slink optical andSPDIF coaxial and USB interface
  • Plug and play with Windows 7, Windows XP and Windows Vista
  • Requires no additional drivers or software

Specifications

  • Inputs: USB / Toslink (Optical) / S/​PDIF coaxial (Switchable)
  • Outputs: left and right stereo audio RCA and 3.5mm stereo headphone jack (Built-in OP headphone amplifier)
  • Bit Rate: 16-bit to 24-bit
  • Sample Rate: 32kHz / 44.1kHz / 48 kHz / 96kHz / 192kHz (via toslink.optical)
  • 32kHz / 44.1kHz / 48 kHz / 96kHz (via USB)
  • Power supply: 5VDC 1A SM510USB (NOT included)
  • Dimensions: 111 (W) x 105 (D) x 30 (H) mm

* Note: This DAC accepts 2 channel digital audio only, and works with any PCM stream with DolbyDigital or DTS disabled.

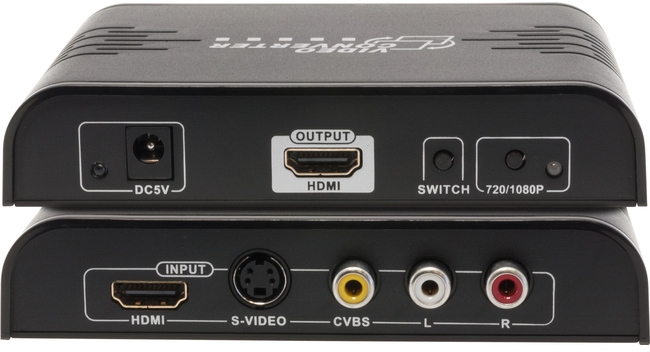

CSH01 COMPOSITE SVIDEO TO HDMI

Features

.rpg_table { border-collapse: collapse } .rpg_table th, .rpg_table td { padding: 5px; } .rpg_table td, .rpg_table th { text-align: left; vertical-align: top; border-top: solid 1px #cccccc; border-bottom: solid 1px #cccccc; } .rpg_table th, .rpg_table .header { font-weight: bold; text-align: left } .rpg_table th[align=center], .rpg_table td[align=center] { text-align:center; }

The CSH01 RCA Composite video and S-video to HDMI Scaler takes either Composite Video or S-Video as input and converts it to HDMI 1080P. It allows older analog devices to be integrated into an HD home theater system. Plug and Play, no software driver is needed. Perfect for connectingold composite video devices to a modern computer monitor via HDMI!

Features:
  • Up-scales Composite Video or S-Video up to full HD 1080P
  • HDMI output is optional at 720P or 1080P
    • HDMI Signal includes Stereo PCM Audio
  • Input video systems – NTSC and PAL is automatically detected and adjusted
  • HDMI Input enables switcher functionality and means noHDMI input on your TV is lost!
  • HDMI, Composite Video and S-Video can remain connectedat the same time, and be switched by a button push!
  • Composite Video and S-Video share the same audio input

Specifications

HDMI input resolutions supported
  • 480i/​60
  • 480p/​60
  • 576i/​50
  • 576p/​50
  • 720p/​50
  • 720p/​60
  • 1080i/​50
  • 1080i/​60
  • 1080p/​50
  • 1080p/​60
PC/​DVI (HDMI) input resolutions supported
  • 640×480/​60
  • 800×600/​60
  • 1024×768/​60
  • 1280×720/​60
  • 1280×768/​60
  • 1280×1024/​60
  • 1360×768/​60
  • 1366×768/​60
  • 1400×1050/​60
  • 1440×900/​60
  • 1680×1050/​60
  • 1920×1080/​60
CVBS input Detect NTSC/​PAL automatically
1.0Vp-p Impedance: 75Ω
S-Video input Detect NTSC/​PAL automatically
Y: 1.0Vp-p lmpedance 75Ω
C: 0.6Vp-p Impedance: 75Ω
HDMI DOC signal 5Vp-p (TTL)
HDMI TMDS signal 0.5~1.0Vp-p
HDMI output Signal Switchable:
  • 720P@50/​60
  • 1080P@50/​60
Power Consumption 3.5W
Power supply 5VDC / 2A
Dimension 129 x 85 x 25.5mm

Downloads

pdf; 1.7MB CSH01 User Manual

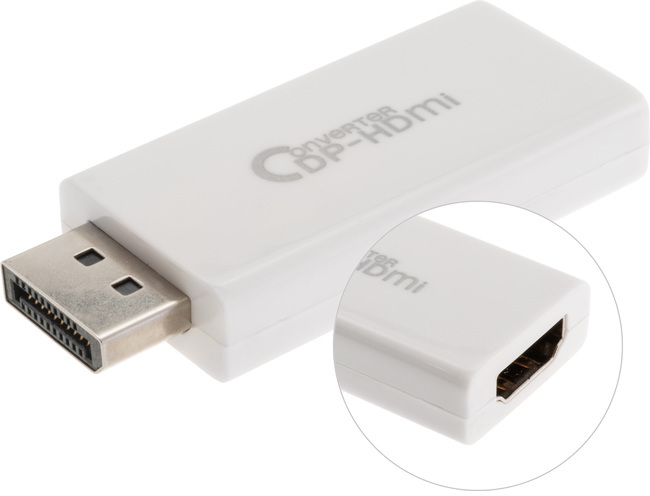

DP2HDMI DISPLAYPORT TO HDMI CONVERTER

Just bought a computer with DisplayPort output, or perhaps you want to attach multiple monitors to your brand spanking AMD Eyefinity Graphics card? The DP2HDMI is a compact adaptor for converting DisplayPort to HDMI without external power supplies or messy cables! Don’t be restrictedpaying extra for monitors with DisplayPort inputs; get the monitor you want with HDMI!

Features

  • DisplyPort input (plug), HDMI output (socket)
  • Just Plug & Play!
  • Compliant with DisplayPort 1.1
  • Full support for DisplayPort Link Training
    • The handshake process through which the display capabilities are determined
  • Signaling rates up to 2.5Gbits in support of 1080P display
  • Enjoy a panoramic gaming and entertainment experience
    • Works with AMD Radeon 5000 Series Eyefinity Technology!
    • Supports multiple independent display outputs simultaneously
  • No need for external power supply
