Great for Home Theater, AV installation, data center, information distribution, conference room presentation, churches, and school and corporate training environments.
Features
-
Switch 4 HDMI inputs between 2 HDMI outputs (4:2)
- Can show the same input on both outputs; splitter function
- ARC (Audio Return Channel) NEW
- Input1 supports HDMI or MHL 2.0 NEW
- Ultra HD 4Kx2K @30Hz NEW
- Supports Deep Colour (up to 36bit), x.v.Colour (xvYCC)
- Support High Definition Audio: Dolby TrueHD / DTS-HD Master Audio
- Supports 3D Video
- Audio extraction (Coaxial and optical) from output A NEW
- Change sources with IR Remote Control or Input Buttons on unit
- HDCP
- Easy to install and operate
- Supports switching DVI signal when DVI-HDMI cable or adapter is used
- Auto Signal Boosting improves signal quality before or after long distance transmission
Package Contents

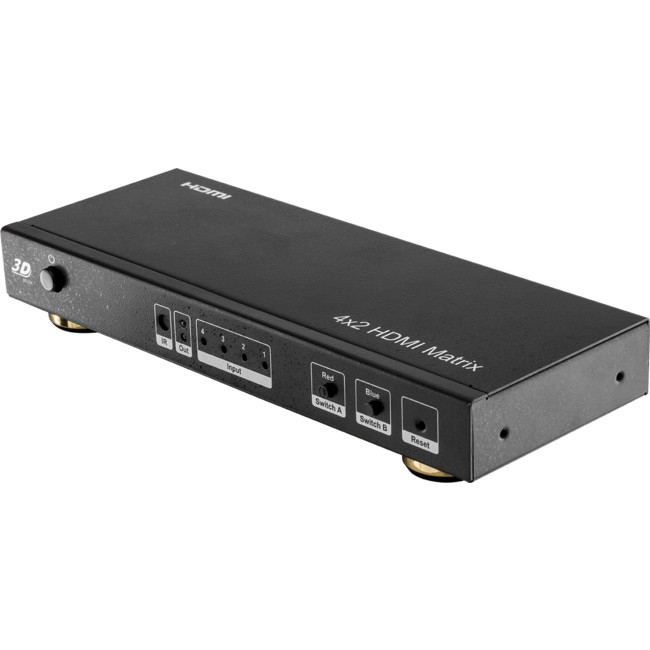

- 1x HDMIMX42ARC 4:2 Matrix Switcher unit
- 1x IR Remote control
- 1x 5VDC / 2A Power Supply
- 2x Mounting ears
- 1x User Manual
Specifications
| Video format |
Max: 4K x 2K (3840 x 2160 @ 30Hz)
1080P / 1080i / 720P / 576P / 576i / 480P / 480i / 3D Video |
| Video Colour Format | x.v.Colour (xvYCC) / Deep Colour (up to 36 bit) |
| Support AudioFormat |
DTS-HD MasterAudio /
Dolby True-HD / etc |
| Bandwidth frequency | 10.2GBPS (Maximum) |
| Power consumption | 5 Watts (Maximum) |
| Transmission Distance | 15 metres (Maximum) |
| Dimension | 28 (H) x 230 (W) x 87 (D) mm |
| Net Weight | 510g |
| Operating Temperature Range | -5 to +35°C (+23 to +95°F) |
| Operating Humidity Range | 5 to 90%RH (No Condensation) |
