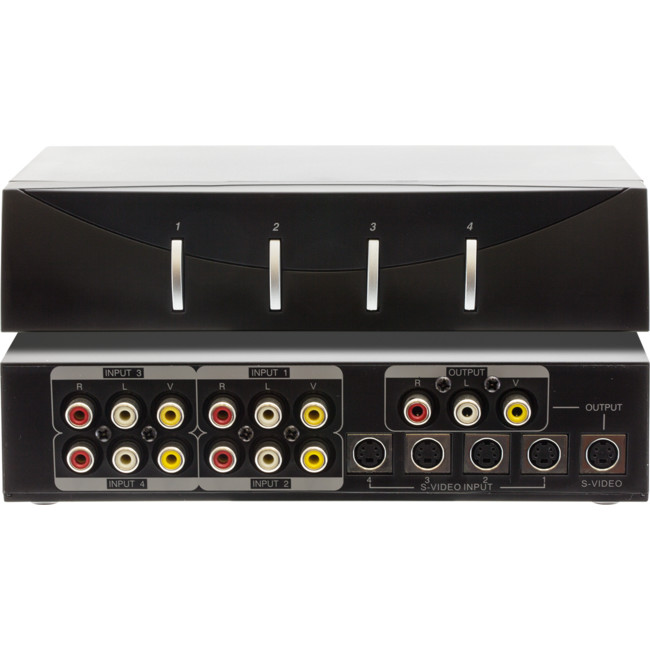

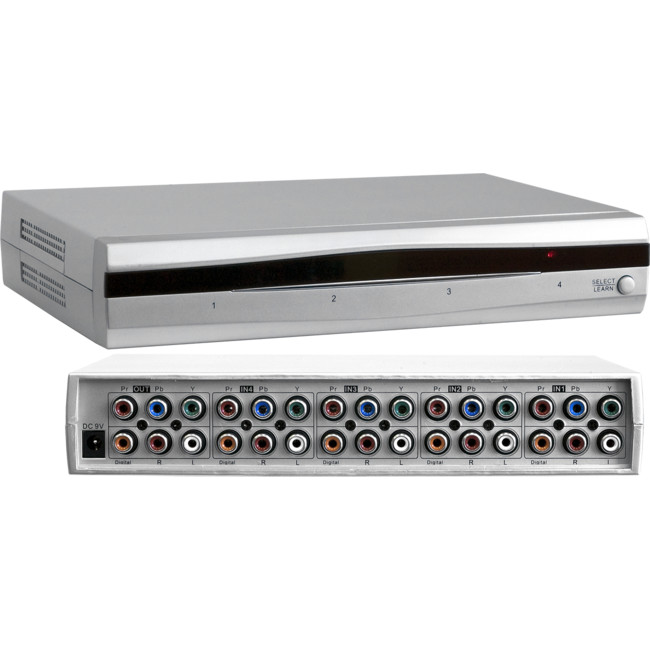

This 4 way AV svideo selector connects up to four AV devices such as DVD players, VCRs or gaming consoles with a single output to your TV and switch between them as required. Inputs can be either composite or S-video.
Audio:
Frequency range |
10Hz-20K Hz |
Insertion Loss |
0.5 dB limited |
Channel Separation (@1K Hz) |
50 dB normal
45dB limited
|
Crosstalk Between Function (@1K Hz) |
60dB normal
55dB limited
|
Note:
- The generator impedance should be 600 ohm.
- Signal output reading is taken across a 47K ohm load.
-
Product Input 4.7K ohm terminated. (on testing channel
separation and crosstalk)
Video:
Frequency Range |
0.3M-6M Hz |
Insertion Loss |
1 dB limited |
Isolation Loss |
35 dB limited |
Chrominance:
Frequency Range |
4.43M±0.5M Hz |
Insertion Loss |
1dB limited. |
Isolation Loss |
35dB limited. |
Luminance:
Frequency Range |
0.3M-1M Hz |
Insertion Lloss |
1dB limited. |
Isolation Loss |
35dB limited. |
Composite/S-Video signal conversion:
Video Input |
1V P-P |
Luminance Output |
0.9V P-P |
Chrominance Output |
0.286V P-P |
Note:
- The generator impedance should be 75 ohm.
- Input 75 ohm terminated.
