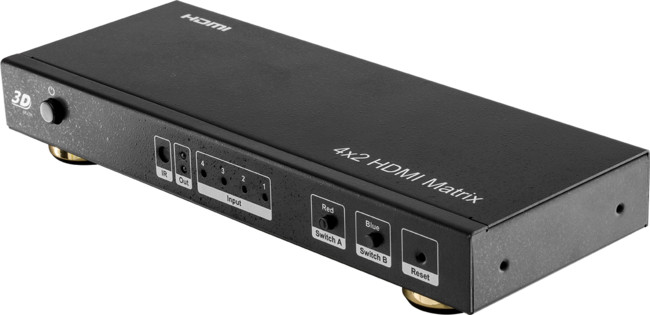

HDMIMX42ARC 4X2 4K2K HDMI MATRIX SWITCHER


Great for Home Theater, AV installation, data center, information distribution, conference room presentation, churches, and school and corporate training environments.

Features

  • Switch 4 HDMI inputs between 2 HDMI outputs (4:2)
    • Can show the same input on both outputs; splitter function
  • ARC (Audio Return Channel) NEW
  • Input1 supports HDMI or MHL 2.0 NEW
  • Ultra HD 4Kx2K @30Hz NEW
  • Supports Deep Colour (up to 36bit), x.v.Colour (xvYCC)
  • Support High Definition Audio: Dolby TrueHD / DTS-HD Master Audio
  • Supports 3D Video
  • Audio extraction (Coaxial and optical) from output A NEW
  • Change sources with IR Remote Control or Input Buttons on unit
  • HDCP
  • Easy to install and operate
  • Supports switching DVI signal when DVI-HDMI cable or adapter is used
  • Auto Signal Boosting improves signal quality before or after long distance transmission

Package Contents

  • 1x HDMIMX42ARC 4:2 Matrix Switcher unit
  • 1x IR Remote control
  • 1x 5VDC / 2A Power Supply
  • 2x Mounting ears
  • 1x User Manual

Specifications

Video format Max: 4K x 2K (3840 x 2160 @ 30Hz)
1080P / 1080i / 720P / 576P / 576i /
480P / 480i / 3D Video
Video Colour Format x.v.Colour (xvYCC) / Deep Colour (up to 36 bit)
Support AudioFormat DTS-HD MasterAudio /
Dolby True-HD / etc
Bandwidth frequency 10.2GBPS (Maximum)
Power consumption 5 Watts (Maximum)
Transmission Distance 15 metres (Maximum)
Dimension 28 (H) x 230 (W) x 87 (D) mm
Net Weight 510g
Operating Temperature Range -5 to +35°C (+23 to +95°F)
Operating Humidity Range 5 to 90%RH (No Condensation)

HDMIMX44RS 4:4 HDMI MATRIX WITH RS232

Watch 4 HDMI sources on 4 different displays interchangeably

Distribute 4 HDMI sources to up to 4 outputs all with ease! Easily switch between each source and destination withthe included, easy to use remote control.

Features

  • Allows up to 4 HDMI AV devices to be independently switched to 4 separate HDMI monitors, HDTVs, or projectors
  • Support HD resolutions up to 4K@30HZ + 1080p, 1080i, 720p and other standard video formats
  • Dolby TrueHD and DTS-HD master audio pass through
  • 36bit Deep Colour
  • Full 3D passthrough
  • Intelligent EDID management for sources and displays
  • Wide band IR Routing (38KHZ -56KHZ)
  • RS232 command control – applied in control systems such as Control4, Crestron etc
  • HDCP compliant

In the box

  • HDMI Matrix
  • 12V 2A power supply with locking DC ring
  • Remote control
  • 4x Wide Band IR cable
  • 4x IR TX cable
  • 1x IR RX cable
  • Mounting ears
  • Control software & user manual CD

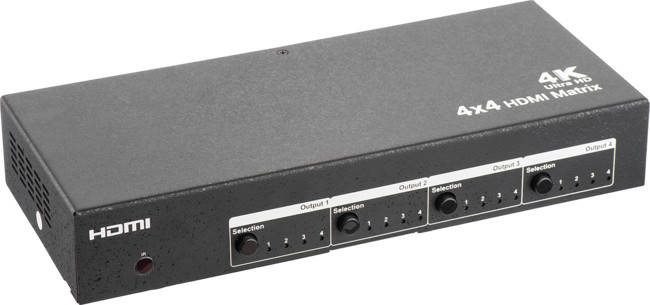

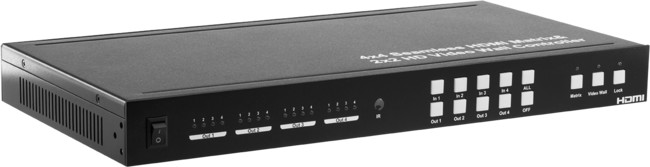

HDMIMX4422 4X4 4-IN 4-OUT HDMI MATRIX

HDMIMX4422 offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

Features

  • Any one of the 4 sources to any one of the 4 displays
  • Seamless switching ensures no switching delay and pictures loss during transitions, the switching speed is less than 1 second.
  • Support 2×2 video wall mode.
  • Any one of the four outputs can be turned off independently.
  • Support high definiton resolutions, including: 1080p@60Hz@36 b/​pixels, 1080i, 720p and other standard video formats.
  • With panel button, Remote Control, RS232 Control, IP Control to select the source.
  • 1U rack design, easy installment.
  • DC 12V 3A power supply (Included)

Wiring Diagram

Specifications

    Operating Temperature Range 0 to +35°C
    Operating Humidity Range 5 to 90 % RH (no condensation)
    Input Video Signal 0.5-1.0 volts p-p
    Input DDC Signal 5 volts p-p (TTL)
    Video Format Supported DTV/​HDTV: 1080P/​1080i/​720P / 576P/​480P/​576i/​480i
    Audio Format Supported LPCM
    Input ports 4xHDMI (standard Type A connector)
    Output ports 4xHDMI (standard Type A connector)
    Matrix mode 4×4 Seamless switching
    Video wall mode 2×2 video wall
    Power consumption 24watts (Maximun)
    Dimension (mm) L438*W220*H44 mm
    Weight 2800g

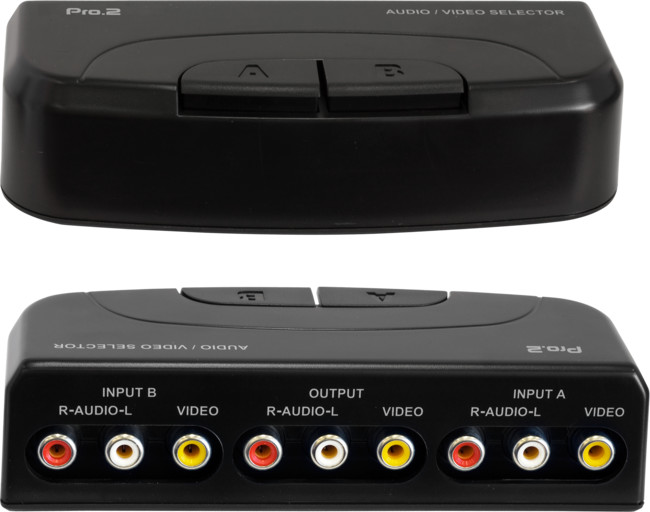

AV212 2-WAY COMPOSITE AV SELECTOR

2-Way A/ V Selector Switch

  • Switch between two composite video and stereo audio sources.
  • Easy toggle push-button operation

Specifications

Connections Inputs
  • 2x RCA Composite Video
  • 4x RCA Audio (L+R)
  • Outputs
  • 1x RCA Composite Video
  • 2x RCA Audio (L+R)
  • Cross-talk Audio 60dB @ 1kHz
    Video 70dB @ 1kHz
    Dimensions 135 (W) × 50 (D) × 32 (H) mm

    AV313 3-WAY COMPOSITE AV SELECTOR

    AV313 R

    • 3 in 2 out Composite AV Selector
    • Connect multiple AV sources to multiple destinations
    • Easily switch between AV sources with the press of abutton
    • EDIT button: This feature allows you to record material from Source B or C to a VCR which is connected to Output A

    Specifications

    • Specification for audio:
      1. Frequency range: 10-20K Hz
      2. Insertion loss: 0.1dB limited.
      3. Channel separation (@ 1KHz): 60dB normal / 55dB limited.
      4. Crosstalk between function (@ 1K Hz) 60dB normal / 55dB limited.
      Note:
      1. The generator impedance should be 600 ohm.
      2. Signal output reading is taken across a 47K ohm load.
      3. Product Output 4.7K ohm terminated. (on testing channel separation and crosstalk)
    • Specification for video:
      1.Frequency range: 0.3-6M Hz
      2.Insertion loss: 0.5dB limited.
      3.Isolation loss: 35dB limited.
      Note:
      1.The generator impedance should be 75 ohm.
      2. Input 75 ohm terminated.

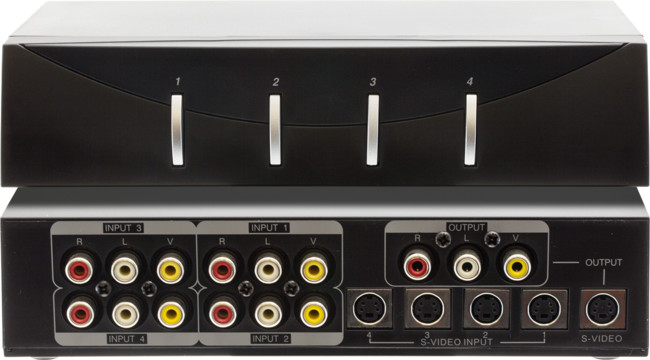

    PRO1048 4-WAY AV S-VIDEO SELECTOR

    Features

    This 4 way AV svideo selector connects up to four AV devices such as DVD players, VCRs or gaming consoles with a single output to your TV and switch between them as required. Inputs can be either composite or S-video.

    Specifications

    Audio:

    Frequency range 10Hz-20K Hz
    Insertion Loss 0.5 dB limited
    Channel Separation (@1K Hz)

    50 dB normal

    45dB limited

    Crosstalk Between Function (@1K Hz)

    60dB normal

    55dB limited

    Note:

    1. The generator impedance should be 600 ohm.
    2. Signal output reading is taken across a 47K ohm load.
    3. Product Input 4.7K ohm terminated. (on testing channel
      separation and crosstalk)

    Video:

    Frequency Range 0.3M-6M Hz
    Insertion Loss 1 dB limited
    Isolation Loss 35 dB limited

    Chrominance:

    Frequency Range 4.43M±0.5M Hz
    Insertion Loss 1dB limited.
    Isolation Loss 35dB limited.

    Luminance:

    Frequency Range 0.3M-1M Hz
    Insertion Lloss 1dB limited.
    Isolation Loss 35dB limited.

    Composite/​S-Video signal conversion:

    Video Input 1V P-P
    Luminance Output 0.9V P-P
    Chrominance Output 0.286V P-P

    Note:

    1. The generator impedance should be 75 ohm.
    2. Input 75 ohm terminated.

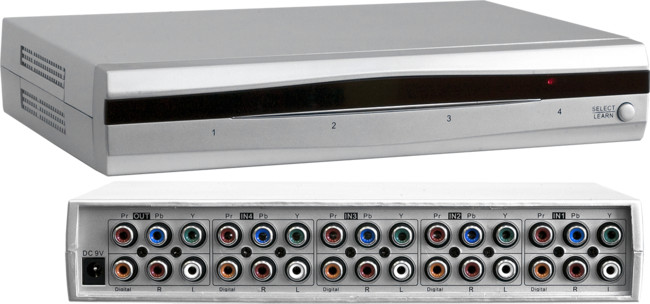

    HD4DCAD 4-WAY COMPONENT VIDEO SELECTOR

    HD4DCA Learning Component Video Switcher

    Increase your component and coaxial audio output!

    • IR learning function allows user to control the switcher with any one of your existing IR remote controls
    • 4 inputs, 1 output audio video selector with Componentconnectors for DVD, DTV, PS2, XBox and others
    • 4 x Y/​Pb/​Pr Inputs, 4 x Stereo Audio Inputs, 4 x Coaxial Audio Inputs
    • 1 x Y/​Pb/​Pr Output, 1 x Stereo Audio Output, 1 x Coaxial Audio Output.
    • Instant one-touch switch and simple do-it-yourself installation.
    • New stylish housing

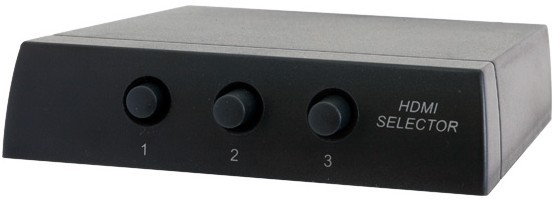

    PRO1185 3-WAY HDMI SELECTOR

    3x HDMI Selector

    The passive PRO1185 HDMI selector is a compact, time-saving control centre for HDTV source switching using asingle high definition display such as a Plasma or LCD TV. Asimple and reliable solution, this 3 way HDMI selector linksany 3 HDTV sources such as DVD players, HD set top boxes, blu-ray players etc. to one HDTV display. You simply select which source you want to view using the control buttons located on the front.

    • 3x HDMI input
    • 1x HDMI outputs
    • Compact size: 115 (W) x 120 (D) x 25 (H) mm

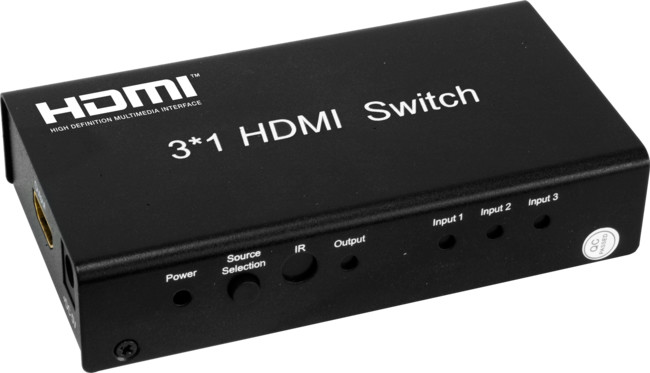

    HDMI3SM 3-WAY MINI HDMI SELECTOR


    Switch between three HDMI Inputs with IR Remote Control without the need for a power supply.

    By adding a power supply (not included), signal can be boosted for longer cable lengths. The product has been tested without a power supply to a total distance of 30m. Ifhigher loss HDMI leads or larger distances are required, we recommend purchasing a 5V / 2A power supply such as the DOSS SM520.

    Features

    • Connects up to three HDMI sources to one HDTV display device
    • Maintains 480p, 720p, 1080i and 1080p video formats
    • Supports 3D Formats
    • Maintains highest HDMI single link video resolution and digital audio signal
    • Support HDCP compliant devices
    • Both HDMI-HDMI and DVI-HDMI cables can be used to connect the inputs and switcher output
    • Inputs can be selected from either the IR remote controller (included) or through the front panel "INPUT SELECT" button

    Specifications

    #rpg_table { border-collapse:collapse; width:100%; max-width:500px;} #rpg_table td { padding:5px; } #rpg_table td { text-align:left; vertical-align:top; width:150px; border-top: solid 1px #cccccc; border-bottom: solid 1px #cccccc; } #rpg_table td:first-child { text-align: left} #rpg_table tr:first-child td { }
    HDMI Support HDMI 1.3 / HDCP 1.2
    3D / 1080p24fs / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
    Colour Support xv-YCC/​Deep Colour 36bit
    Connectors Rear:
    3x HDMI 19p Sockets (In)
    Side:
    1x HDMI 19p Socket (Out)
    1x 1x DC Power Socket
    Audio Support 7.1 LPCM / DTS-HD / True-HD / AC3 / DTS / DSD
    Input video signal 5.0Volts P-P (TTL) Single Link
    Operating temperature range -15 to +55°C (-41 to +95°F)
    Operating humidity range: 5% to 90%RH (No Condensation)
    Dimensions (L×W×H) 115 × 62 × 25mm
    Mass 0.22 Kg

    Related Products

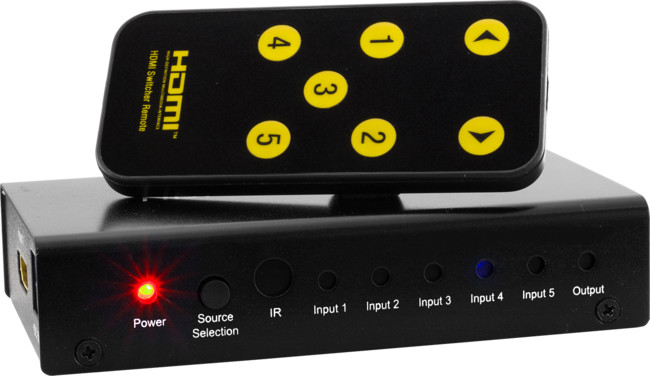

    HDMI5SM 5 WAY MINI HDMI SWITCHER

    Features

    • Switch between 5 HDMI inputs to 1 HDMI output
    • Supports Resolutions up to 1080p/​24fps
    • Supports Deep Colour (10/​12-bit), xvYCC and 3D Video.
    • Support High Definition Audio: Dolby TrueHD / DTS-HD Master Audio
    • HDMI 1.3 / HDCP 1.2 Compliant
    • Change input source with IR Remote Control or Input Button on unit
    • Will select next input when no signal is detected
    • Easy to install and operate
    • Supports switching DVI signal when DVI-HDMI cable or adapter is used
    • Use of power supply optional
    • Auto Signal Boosting improves signal quality after long distance transmission (only when power supply is used*)

    *Power Supply included but not required
    The product has been tested without a power supply to a total distance of 30m using quality Pro2 leads.

    By adding a power supply, signal can be boosted. If higher loss HDMI leads are used or long distances are required, we recommend using the power supply.

    Package Contents

    • 1x HDMI5SM 5:1 Switching unit
    • 1x IR Remote control
    • 1x User Manual
    • 1x 5VDC Power adaptor

    Specifications

    Operating Temperature Range -5 to +35°C (+23 to +95°F)
    Operating Humidity Range 5 to 90%RH (No Condensation)
    Input Video Signal 0.5-1.0 VoltsP-P
    Input DDC & Signal 5 volts p-p (TTL)
    Video format 1080P / 1080i / 720P / 576P / 576i /
    480P / 480i / 3D Video
    Video Colour Format xvYCC / Deep Colour (10/​12-bit)
    Support AudioFormat DTS-HD MasterAudio /
    Dolby True-HD / etc
    Output Video HDMI 1.3 / HDCP 1.2
    Data transferspeed rate 6.75Gbps (Maximum)
    Power consumption 4 Watts (Maximum)
    Transmission Distance 15 metres (Maximum)
    Dimension (L×W×H) 115 × 62 × 25mm
    Net Weight 212g
    Gross Weight 520g

    FAQ

    Q. Why is my remote not switching between sources?

    A. The HDMI5SM will only switch between active HDMI inputs. IF the HDMI source (eg. Bluray player) is off or in stand-by, it will not be recognised by the HDMI switch as an input.

    Related Products

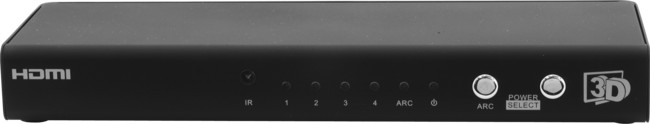

    HDMI4AVR 4-WAY HDMI SWITCH WITH ARC

    Features


    Features

    • Audio Return Channel function
      • Toslink and Coaxial audio output
    • 3D mandatory format supported
    • Supports digital coaxial+optical audio output for non-HDMI sound system
    • Expand 4 HDMI sources to your HDTV
    • Supports 1080P/​12-bit deep colour HDTV
    • Supports pixel clock rate up to 225MHz
    • HDCP compliant
    • DTS-HD, Dolby TrueHD loss less compressed digital audio compliant
    • Gold plated connectors
    • IR remote control

    Specifications

    • Input ports
      • HDMI Receiver (Type A 19-pin female)
    • Output port
      • Port 1 HDMI Transmitter (Type A 19-pin female)
    • Operation pixel frequency range: 25MHz – 225MHz
    • Single link range: 1080P Max
    • Toggle button manual select/​Remote control
    • Power Supply: DC input 5V / 2A Adapter (regulated)

    Supported Formats

    Frame Packing

    • 1920x1080P@23.98/​24Hz
    • 1280x720P@59.94/​60Hz
    • 1280x720P@50Hz
    Side-by-side (half)
    • 1920x1080i@ 59.94/​60Hz
    • 1920x1080i@ 50Hz
    Top and Bottom
    • 1920x1080P @ 23.98/​24Hz
    • 1280x720P @ 59.94/​60Hz
    • 1280x720P@ 50Hz

    PRO1376 TOSLINK DIGITAL AUDIO SWITCH

    3-input, 1-output Powered TOSLINK Switch with Remote Control. This Powered TOSLINK Switch is one of the most convenient ways to deliver perfect audio around your home theatre. Unfortunately, not all AV receivers and amplifiersat the home theatre are able to accept multiple optical inputs. When you’re stuck with too many devices and not enough sockets, it’s time to bring in a switch. This 3 x 1 optical switch can connect up to three inputs from source devices such as Blu-Ray players, personal computers and gameconsoles, then send them through to your TV or sound system.

    Features

    • Switch between three input optical fibre channels
    • Audio format support: LPCM2.0 / DTS / Dolby – AC3
    • Support signal retiming
    • Signal loss of optical fibre cable less than 0.2dB/​m, output distance is up to 40m
    • The input control can etither by remote or directly press the button
    • Support last time working state memory when power off
    • Over-voltage protection
    • LED status indication
    • No loss of image and sound quality
    • Easy to install

    Specifications

    Support audio format LPCM2.0/​DTS/​Dolby-AC3
    Max baud rate 16Mbps
    Output cable distance ≤40m (Use the optical fibre cable loss less than 0.2Db / m)
    Peak wavelength 650nm
    Power Supply DC5V / 500mA (included)
