AVS5800CSP SPARE 5.8GHZ WIRELESS RECEIVER

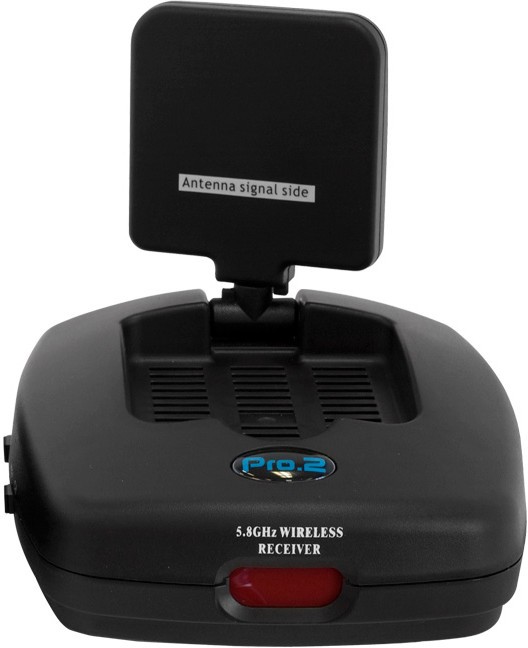

AVS5800CSP 5.8GHZ WIRELESS RECEIVER FOR AVS5800C

For AVS5800C only, not for AVS5800B.

Features:

  1. Avoids interference from crowded 2.4GHz ISM applications such as video senders, 802.11b WLAN equipment, Bluetooth-enable products, cordless phones, microwave ovens, etc.
  2. Operating frequency: 5745 ~ 5805MHz (4 channels)
  3. Directional antenna minimizes multi-path and interference
  4. Up to 300 feet range, clear line of sight
  5. Supports NTSC and PAL
  6. High S/​N video output and stereo audio output

Specifications:

  • Receiver

General specifications


  • Input voltage

    DC 9V ±10%

    Current consumption

    < 250mA

    Antenna type

    Patch

    Operating temperature & humidity

    0℃ ~ +50℃ less than 85%

    Storage temperature & humidity

    -20℃ ~ +70℃ less than 90%

    Dimensions (W x D x H)

    123mm x 131mm x 55mm

    Electrical specifications

    RF

    Input frequency range

    5745 ~ 5805 MHz

    Input level @ connector

    -25 ~ -85dBm

    Antenna Port Impedance

    50 ohms

    Gain flatness

    3 dB max.

    Input return loss (@50 ohms)

    -10 dB typical

    LO. drift

    ±250KHz

    Video

    Output level

    1Vp-p ±0.15Vp-p Load.

    Impedance

    75 ohms

    De-emphasis

    NTSC & PAL

    Video Connector

    RCA JACK (Yellow)

    Audio

    Output level

    2 Vp-p

    Impedance

    2K ohms

    Frequency response

    30 Hz ~ 12 KHz

    Audio Connectors

    RCA JACK

    R (Red)

    L (White)
