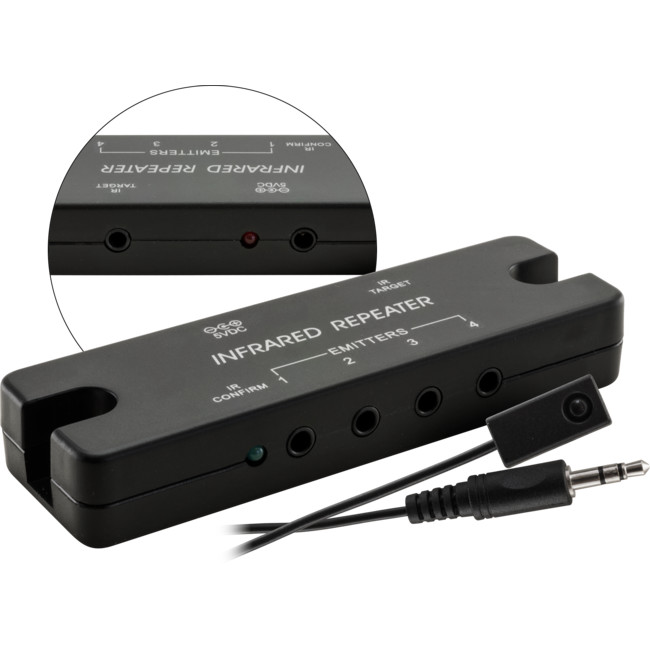

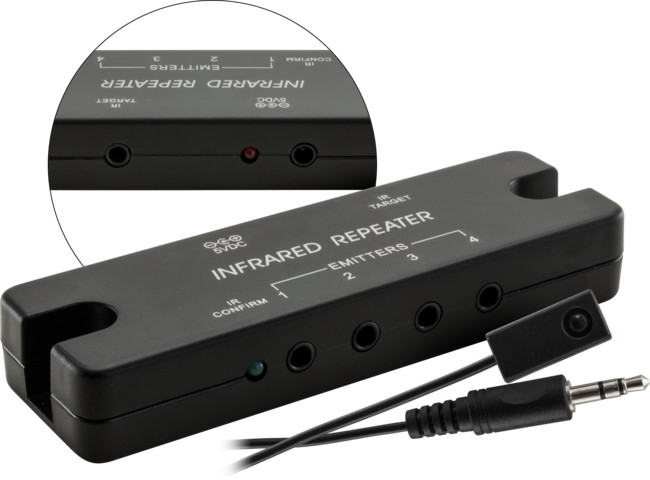

PRO1326 COMPACT IR REPEATER KIT

Hide your AV equipment in a cupboard or rack without losing the ability to control them with their Remote Controls. Installing the Compact IR Repeater kit is quick and simple, and expandable offering extra output ports for more emitters/​equipment!

Features

  • Four amplified emitter output connections
  • convenient IR confirmation LED
  • Power indication LED
  • Compact size for mounting near audio equipment
  • IR receiver and emitters supplied
  • Compatible with Foxtel IQ2

In The Box

  • 1x Compact IR Repeater Box
  • 1x IR Receiver (3.5mm Stereo plug)
  • 2x Dual IR Emitters (3.5mm Mono plug)
  • 1x Power Adapter (5VDC / 500mA)
  • 2x Mounting Screws

Specifications

.rpg_table { border-collapse: collapse } .rpg_table th, .rpg_table td { padding: 5px; } .rpg_table td, .rpg_table th { text-align: left; vertical-align: top; border-top: solid 1px #cccccc; border-bottom: solid 1px #cccccc; } .rpg_table th, .rpg_table .header { font-weight: bold; text-align: left } .rpg_table th[align=center], .rpg_table td[align=center] { text-align:center; }

Repeater Box Receive/​Transmit Frequency 38kHz ~ 56kHz
Power 5VDC / 500mA
Dimensions 104x32x17mm
Weight 25g
IR Receiver Range 40ft @ 38kHz
25ft @ 56kHz
Connector 3.5mm stereo plug
Tip: Signal
Ring: +V
Sleeve: Gnd
Cable Length 3metres
Dimensions 20×9.4x7mm (excl cable)
Weight 21g
IR Emitter Emitters/​LEDs 2x (Dual)
IR Wavelength 940nm
Cable Length 3metres
Connector 3.5mm mono plug
Tip: Signal
Sleeve: Gnd

FAQs

Can I use the PRO1326 with other Pro2 accessorieslike IR hubs, IR targets and IR wall plates?
The accessories are designed to be compatible with the PRO1187 IR block but not the PRO1326. Since the Vcc output voltage from IR Receiver socket (on thePRO1326) is 5 volts (not 12 volts like the PRO1183) so you can’t connect the output of the PRO1326 to many of the otherPro2 IR accessories.

Why the IR confirmation blue LED stays on?

Please make sure IR target has been plugged in. Once plugged in, the IR confirmatino light will be off and only blinks when it receives IR signal.

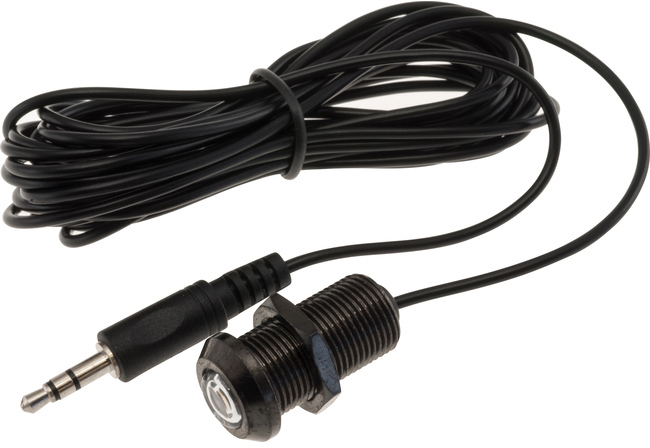

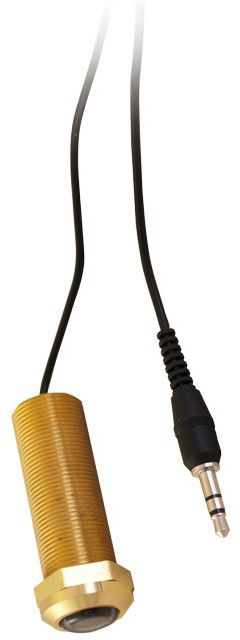

PRO1330 TUBE IR TARGET FOR PRO1326

  • Flush/​surface mount IR Receiver
  • Foxtel iQ2 Compatible
  • For PRO1326 only
  • Dimensions:
    • Overall length: 23mm
    • Diameter: 16mm
    • Thread diameter (mounting hole): 12.5mm

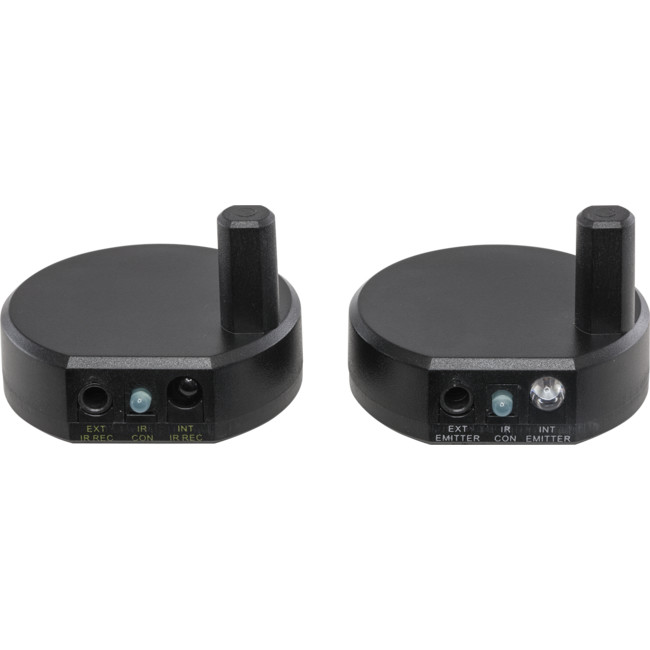

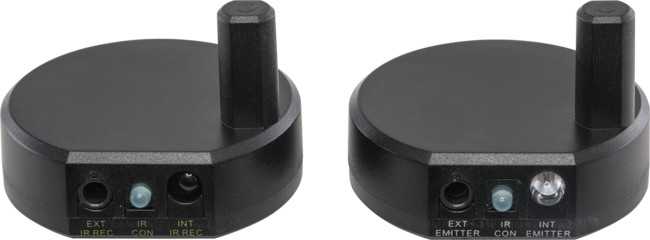

PRO1369 WIRELESS IR REPEATER SYSTEM

Wirelesss IR Repeater system

Do you want to control Audio and Video Devices that are located in another room?
Are you tired of leaving cabinets open so your remote can operate your devices?

Then try this wireless IR repeater system!

  • Foxtel compatible
  • RF: 915MHz technology to ignore current 433 MHz RF-interference
  • Range up to 100-300 meters
  • IR carrier tuning freq: 20 – 60 KHz
  • Compatible with CE EMC regulation
  • TX: 2mW (CE) / 10mW (CE) / 20mW (Hi-Power)
  • RX listen mode current 3.8 mA only
  • HIgh receiving sensitivity (−90dBm)

Specifications

IR:

  • Compatible with all universal full band carrier frequency infrared remote
  • Better IR receive sensitivity (distance), over 7 meter

RF:

    • Long range transmission over 200 meter (open space)
    • 915 MHz RF technology to ignore current 433MHz RF-interference
    • FSK modulation:
        • Better signal sensitivity than ASK modulation
        • Better anti RF-interference than ASK modulation
        • Better noise suppression
      • Digital encrypted function ensures safety and reliability
      • Support one receiver to Multi transmitter

      Power supply: 5V 0.5A

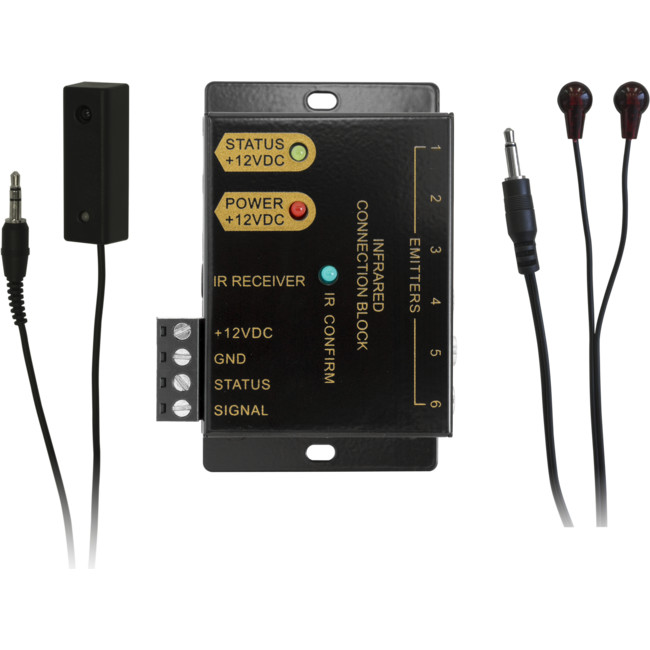

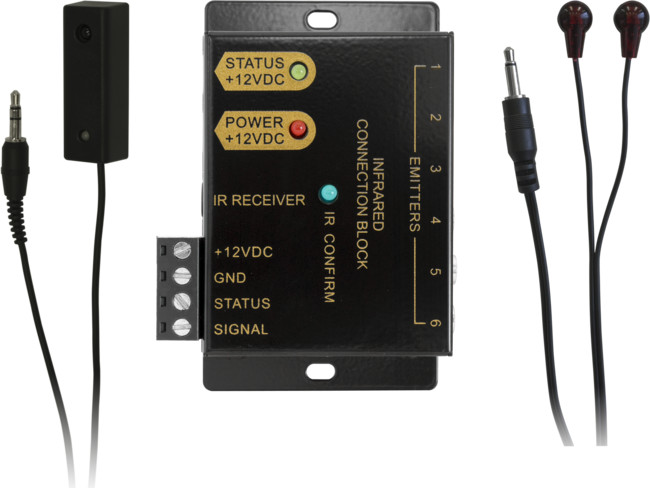

PRO1183 IR REPEATER KIT

Overview

Kit includes of:

  • Infrared connecting block
    Connects IR receivers, power supply and emitters together to interface the IR system to the audio / video components.
    • Six emitter output connections
    • Convenient IR confirmation LED
    • Status power receptacle with LED indicator
    • 3 conductor 1/​8" receptacle for interfacingwith many brands of free standing IR receivers
    • Compact size for mounting near audio equipment
    • 82 (W) x 60 (H) x 27 (D) mm
    • 110 g
  • Mini stick infrared receiver
    Receives IR signals from a handheld IR remote control and relays this signal to the audio/​video equipment for operation from another room. The receiver has a non-skid base and is placed on a flat surface.
    • CFL friendly – allows installation in areas with compact fluorescent lighting.
    • Blue IR confirmation LED
    • Wide band IR
    • 3 m cable with 3.5 mm stereo mini plug
  • Infrared emitter
    • Round shape, with elegant & compact size
    • Transparent housing
    • 10ft cable length
    • 3.5mm standard mono plug
    • With self-adhesive tape for quick and easy fixing on any hard, clean and dry surface
  • 12 V 200 mA power supply

Connection Diagrams

Connection diagram
Click for a larger version

Connection diagram
Wired connection from the PRO1178A to the connecting block
Click for a larger version

Specifications

IR Receiver
  • Foxtel Compatible
    • Receive Frequency Range: 34 KHz ~ 60 KHz
    • Transmit Frequencies: 38 KHz ~ 56 KHz
  • Range:
    • 12 metres (40 ft) @ 38 KHz
    • 7.6 metres (25 ft) @ 56KHz
  • Power: 12V DC 30mA max.
  • 45 (L) x 14 (W) x 13 (H) mm
  • Cord Length: 3 metres (10 ft)
  • Connector Type: 3.5mm TRS mini plug
  • Weight: 28 g

FAQ

What are the distance restrictions when running IR from this device?
We tested the Pro1183 IR block to the Pro1140 Inwall IR receiver. Between the devices, we used 50m of Pro2 patch leads and a total of 3 cat5e joiners (TEL5011) to simulate wall plates. The signal was passing reliably between the devices.

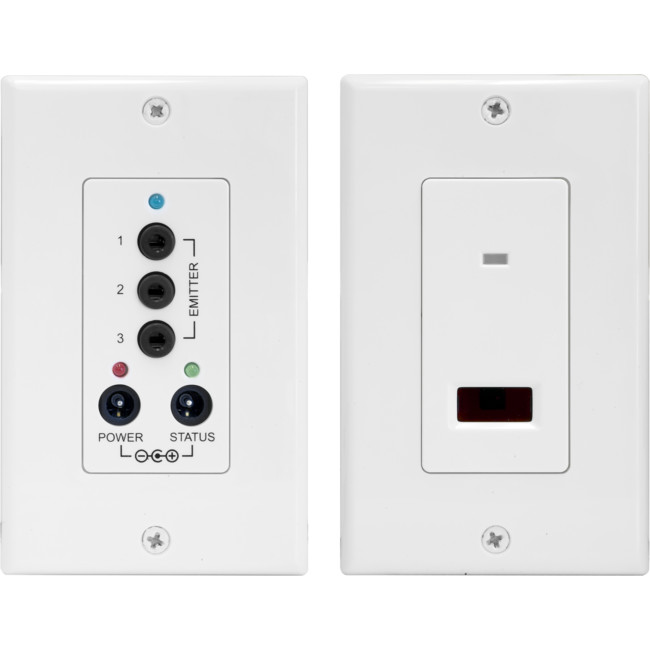

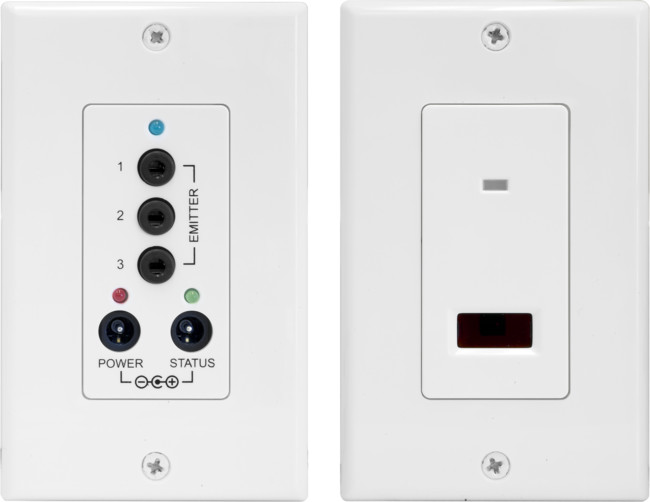

PRO1255 PRO2 IR REPEATER WALL PLATES

Description

The PRO1255 IR repeater wall plate kit connects the IR connecting block, IR receiver, IR emitter, and power supply together to interface the IR system to Audio/​Video components.

With this setup, you are able to remotely control AV devices in different locations. Wall plates mount to a standard signle gang electrical box using deco cover plates.

In-wall IR Connecting Block

  • Three emitter output connections
  • Convenient IR confirmation LED
  • Status power connector with LED indicator
  • Power input connector with LED indicator
  • Large detachable IR receiver connection at back
  • Specifications:
    • Dimensions: 70 (W) x 114 (H) x 40 (D) mm
    • Weight: 56gr

In-wall IR Receiver
Receives IR signals from a handheld IR remote control and relays this to the AV equipment for operation from another room.

  • Dual colour LED (Green for system status / Blue for talk back)
  • Ultra-thin design mounts to any J-box or P-ring
  • Wide band IR receives signals from many types of remotes
  • Specifications:
    • Receive frequency range: 34 KHz to 40 KHz
    • Transmit frequency: 38 KHz
    • Range:
      On axis: 16.8m to 24.4m
      30° off axis: 9.1m to 16.8m
    • Power: 12 V DC, 30mA max.
    • Status Power: 12 V DC, 3mA max.
    • Dimensions: 70 (W) x 114 (H) x 16 (D) mm
    • Weight: 36gr

Kit includes:

  • In-wall IR Connecting Block
  • In-wall IR receiver
  • Dual IR emitter
  • Single IR emitter
  • Switch mode power supply

FAQ

Q: Can I add extra IR receiver in other room? How many and how?

A: Yes, you can add 2 extra receivers in the system, total up to 3 IR receivers are suggested for the system, thewiring diagram is on page 4 of the manual.

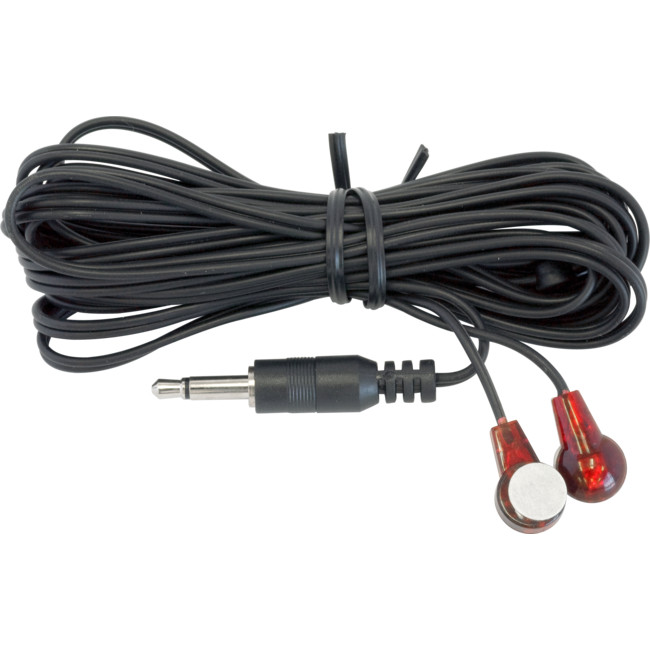

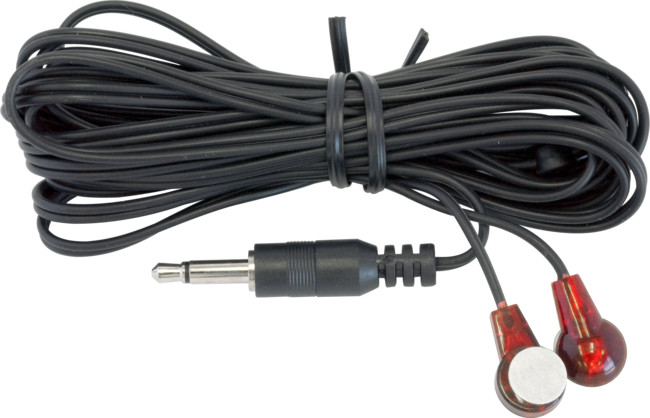

PRO1142 DUAL IR EMITTER

PRO1142 Dual IR emitter

Control two devices from one output on your IR distribution module.

This dual emitter have a self-adhesive pad that allow it to be stuck directly to the IR sensor window of your audio/​video equipment. This configuration gives you the highest level of signal transmission accuracy. Continues toallow external IR signal through (so that you can still useyour remote by directly pointing it at your audio/​visual component).

  • For use with Connecting Blocks and Home Automation controllers (PRO1188A > 37168736)
  • Round shape, with elegant compact size
  • Infra-red diode is built-in transparent housing
  • 10 feet cable length
  • 3.5mm mono standard plug
  • Self adhesive tapes for quick and easy fixing on anyhard, clean and dry surface

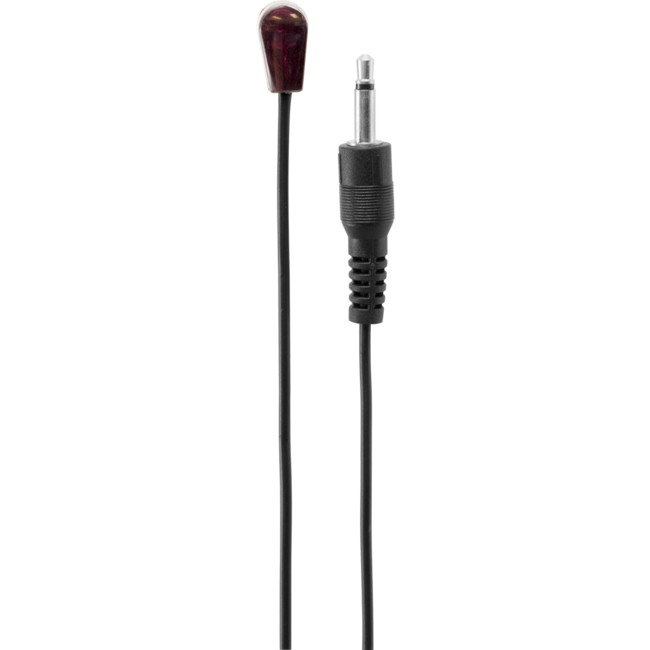

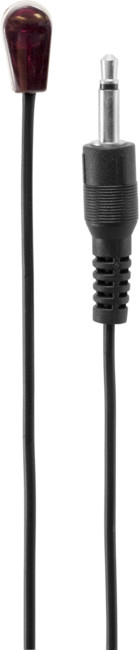

PRO1141 SINGLE IR EMITTER

PRO1141 Single IR emitter

Control devices from one output on your IR distribution module.

This single IR emitter has a self-adhesive pad that allows it to be stuck directly to the IR sensor window of your audio/​video equipment. This configuration gives you thehighest level of signal transmission accuracy, continues toallow external IR signal through (so that you can still useyour remote by directly pointing it at your audio/​visual component).

  • For use with Connecting Blocks and Home Automation controllers (PRO1188A > 37168736)
  • Round shape, with elegant compact size
  • Infra-red diode is built-in transparent housing
  • 10 feet cable length
  • 3.5mm mono standard plug
  • Self adhesive tapes for quick and easy fixing on anyhard, clean and dry surface

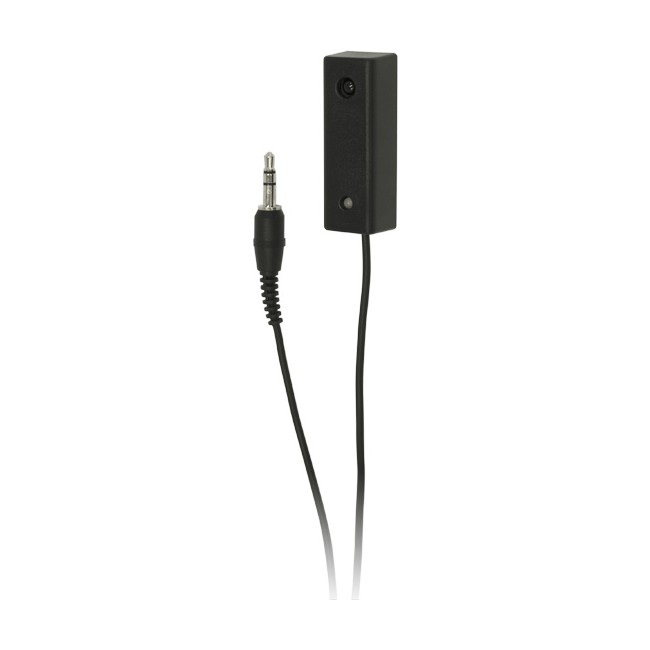

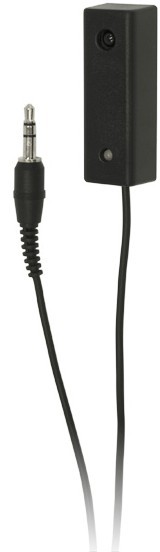

PRO1178A SURFACE MOUNT IR RECEIVER

Mini stick infrared receiver
Receives IR signals from a handheld IR remote control and relays this signal to the audio/​video equipment for operation from another room. The receiver has a non-skid base and is placed on a flat surface.
  • CFL friendly – allows installation in areas with compact fluorescent lighting.
  • Blue IR confirmation LED
  • Wide band IR
  • 3 m cable with 3.5 mm stereo mini plug

Connection diagram
Wired connection from the PRO1178A to the connecting block – Click for a larger version

IR Receiver Specifications

  • Foxtel Compatible
    • Receive Frequency Range: 34 KHz ~ 60 KHz
    • Transmit Frequencies: 38 KHz ~ 56 KHz
  • Range:
    • 12 meters (40 ft) @ 38 KHz
    • 7.6 meters (25 ft) @ 56KHz
  • Power: 12V DC 30mA max.
  • 45 (L) x 14 (W) x 13 (H) mm
  • Cord Length: 3 meters (10 ft)
  • Connector Type: 3.5mm TRS mini plug
  • Weight: 28 g

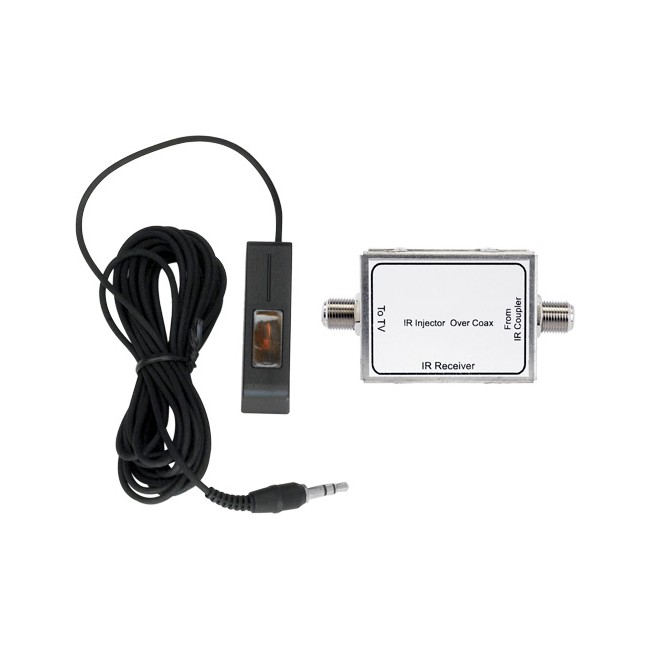

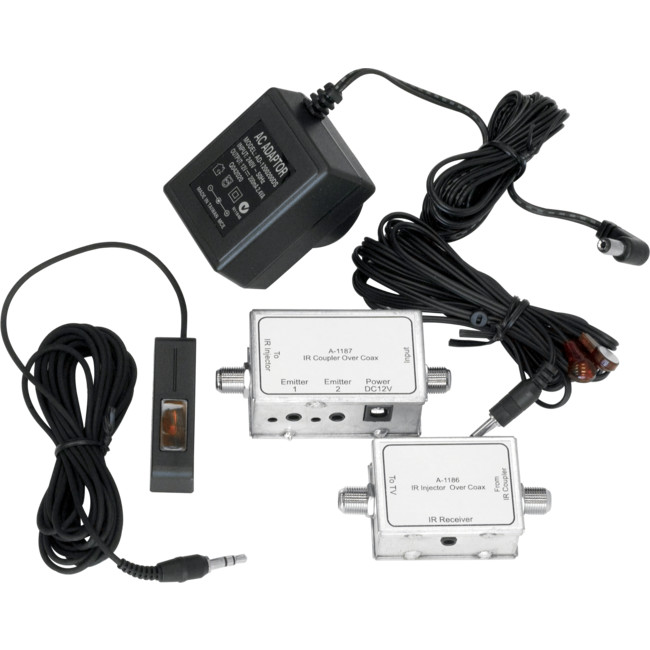

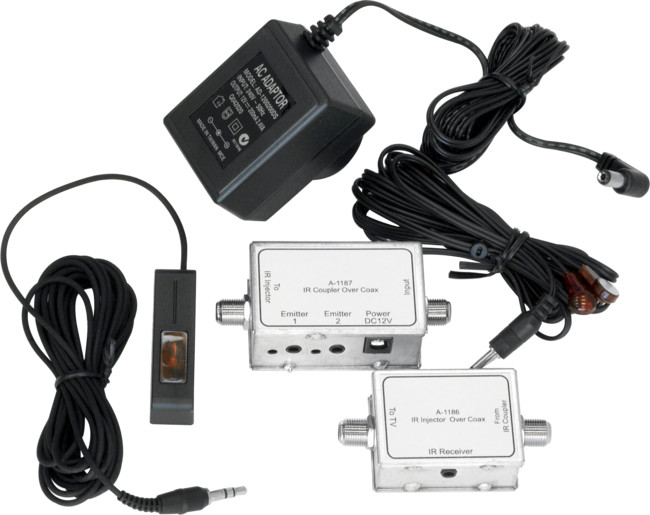

PRO1188A IR OVER COAX SYSTEM

Features

PRO1188A IR Distribution over coax kit

This kit allows IR signals to be inserted onto a coax cable in one location and extracted from coax on another location.

We are all familiar with infra-red remote controls because we use them to operate our TV, DVD players etc. on adaily basis. However, you might not be familiar with "IR repeating." IR repeating allows you to control devices that are not with in the direct line of sight of your remote control. This kind of a system is commonly used in distributed audio / video systems where the source components are centrally located, or when you wish to control your source devices remotely from an entirely different location.

  • Creates an IR system with existing wiring
  • Power 4 IR receivers with one power supplied (included)
  • Quick and easy installation

Kit contents

  • IR injector
    • Passes the TV signal from input to output
    • Injects the signal from the infrared receiver to the side of the injector that goes "upstream" to the coupler
    • Connects power from the power supply to the infrared receiver
  • IR coupler
    • It passes the TV signal from input to output
    • It extracts the infrared signal from the downstream injector to drive one or more infrared emitters
  • Dual IR emitter (also sold seperately PRO1142/​37168732)
  • Mini sticker IR receiver
  • 12V DC 200mA power supply

FAQs

Does the IR target work with plasmas?
Some plasmas are better shielded than others. In the one instance that we’ve tested the IR targets, it has worked without any issue.

How come you need to buy "special" IR passing splitters when using this product?
The special thing about IR passing splitters (eg ChannelPlus branded splitters) is that they allow voltage to pass in both directions. Standard splitters, with their internal diode, only allow voltage to pass up the splitter. Since IR systems require this voltage to also be passed down the splitter also, you how to ensure that you choose the correct model.

Related Products

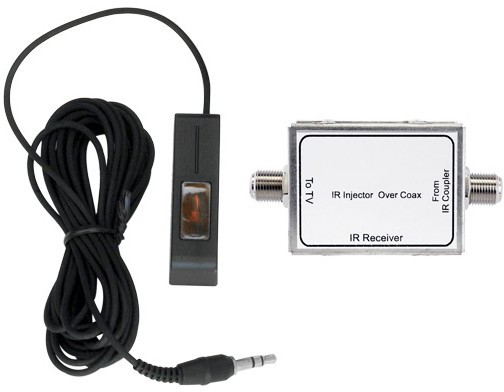

PRO1188AS SPARE RECEIVER FOR PRO1188A

Features

  • Spare receiver for PRO1188A, it includes PRO1186 IR injector and PRO1178 mini IR receiver
  • Dimension: 47mm x 35mm x 20mm

FAQs

Does the IR target work with plasmas?
Some plasmas are better shielded than others. In the one instance that we’ve tested the IR targets, it has worked without any issue.

How come you need to buy "special" IR passing splitters when using this product?
The special thing about IR passing splitters (eg ChannelPlus branded splitters) is that they allow voltage to pass in both directions. Standard splitters, with their internal diode, only allow voltage to pass up the splitter. Since IR systems require this voltage to also be passed down the splitter also, you how to ensure that you choose the correct model.

Downloads

pdf; 355kB PRO1188A Kit User Manual

Related Products

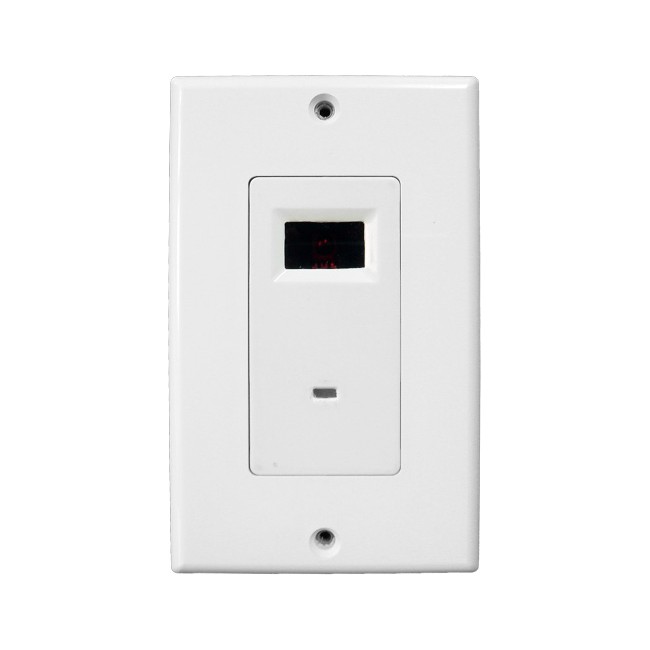

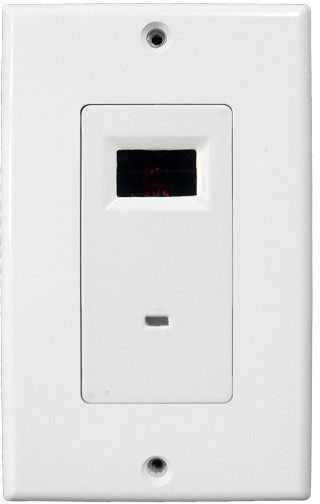

PRO1140 IN-WALL IR RECEIVER

The PRO1140 In-Wall Infrared Receiver receives IR signals from a handheld IR remote control and relays this to the audio/​video equipment for operation from another room. Mounts to a single gang standard electrical box using a decorate cover plate.

  • Stylish decorate design. Available in white colors
  • Dual color LED. Green for system status and blue for talk back
  • Ultra thin design. Mounts easily in any J-box or P-ring
  • Wide band IR receives IR from many types of remotes.

SPECIFICATIONS

  • Receive Frequency Range: 34 kHz to 40 kHz
  • Transmit Frequencies: 38 kHz
  • Range: On Axis – 55ft to 80 ft (16.8m –24.4m)
  • 30° Off Axis – 30ft to 55ft (9.1-16.8m)
  • Power: 12VDC, 31mA max.
  • Status Power: 12VDC, 3mA max.
  • Dimensions: 70W x 114H

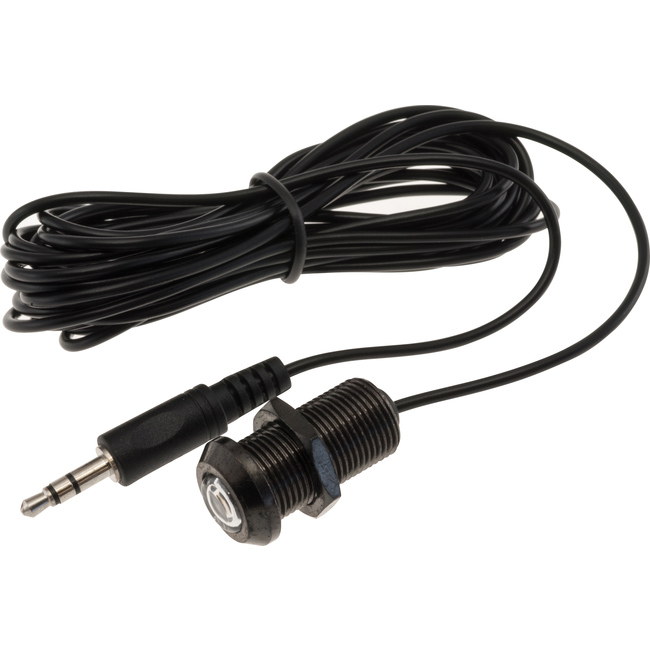

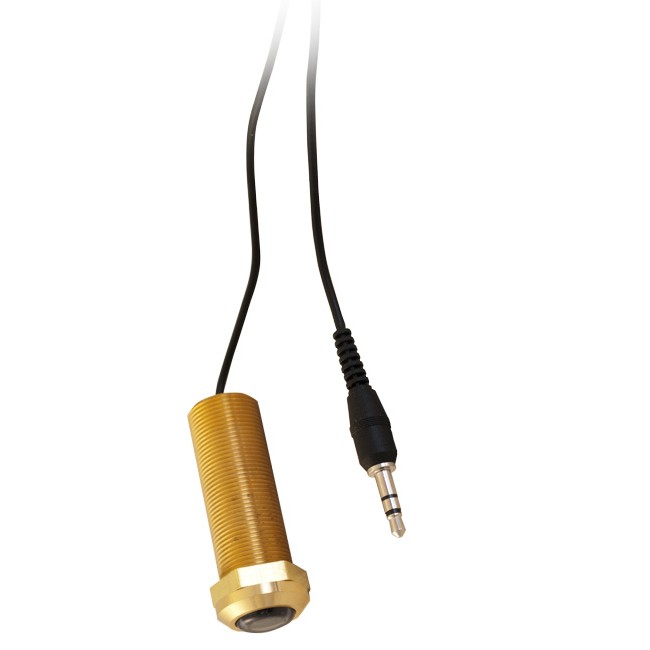

PRO1292 IR RECEIVER TUBE

The Dual Band IR Reciever Tube recieves IR signal from a handheld IR remote control and relays this signal to the audio/video equipment for operation from another room.

Features
  1. CFL friendly – Works in most lighting environments including fluorescent lighting.
  2. Blue IR confirmation LED.
  3. Wide band IR recieves IR from many types of remotes.
  4. 3 metres cable with 3.5mm stereo mini-plug.
Specifications
  • Recieved frequency range………….34KHz to 60 KHz
  • Transmit frequencies………………..38KHz & 56 KHz
  • Range………………………………….40ft @ 38KHz
  • . ………………………………………..25ft @ 56 KHz
  • Power………………………………….12VDC, 30mAmax
  • Dimensions…………………………….52.5L x O.D.16.5 mm
  • Cord Length…………………………..10ft (3m)
  • Connector type………………………1/​8"(3.5mm) TMS mini plug
  • Weight…………………………………54g
