PA005 INLINE PHONO PREAMP

PA005 does not come with a power source!

For fixed installations choose the plug pack (SM905 and PW8030). For other applications, choose to use a 9V battery (MN1604B1).

Unlike line level audio sources you connect to a stereo (DVD/​CD players, tape decks, TV audio, minidisc, etc.), the output from a magnetic cartridge installed in a good qualityturntable is MUCH lower, and requires an additional stage ofamplification to bring it up to the same volume as the othersources you listen to through your stereo. This additional amp stage, the phono preamp, is built-in to most older receivers and amps, allowing direct connection of a turntable. However, newer stereo equipment (including virtually all mini-systems and home theatre units, as well as many stereo receivers and amps), do not have a phono input (this is because records and turntables are supposedlyobsolete in today’s world dominated by CDs and DVDs). In order to utilise the inputs that such units have (Aux, Tape, Line, Video, CD, etc.) to connect a turntable, you need to first pass the signal thru an external phono preamp to bump the level. The same level increase is needed if you’re connecting a turntable to a computer sound card’s line input so you can make CD-Rs from LPs; again, the external phono preamp provides it

Features:

  • Ultra compact design
  • Use either 9V Battery (not included) or 9V – 500maH power supply with 3.5mm jack connector (not included)
  • Simply plug and play
  • Dimensions:
    86 x 28 x 70mm (WHD)

Connections:

  • Audio Input: 2x RCA L&R
  • Audio Output: 2x RCA L&R
  • Power Input: 3.5mm (Requires sm905 and PW8030 – not inc) and 9V battery

Specifications:

  • Current consumption: 1mA (average)
  • Est running time on 9V battery is 40hr continuous (based on 20mA)
  • Amplification: 34dB
  • Input impedance: 50 kΩ
  • Output impedance: 50 kΩ
  • Frequency Range: 30 Hz ~ 20 KHz
  • Compensation: RIAA correction

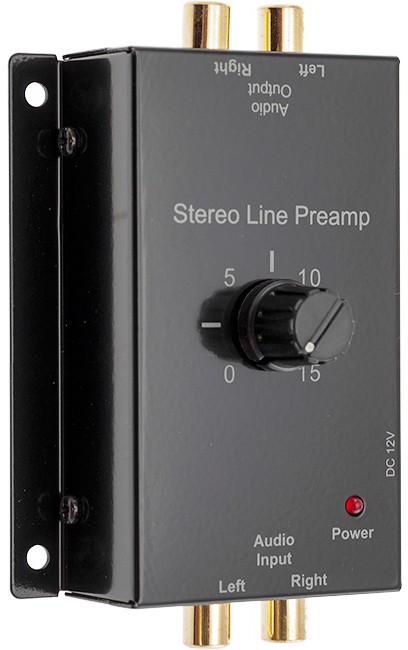

PRO1327 STEREO AUDIO LINE PREAMP

.rpg_table { border-collapse: collapse } .rpg_table th, .rpg_table td { padding: 5px; } .rpg_table td, .rpg_table th { text-align: left; vertical-align: top; border-top: solid 1px #cccccc; border-bottom: solid 1px #cccccc; } .rpg_table th, .rpg_table .header { font-weight: bold; text-align: left } .rpg_table th[align=center], .rpg_table td[align=center] { text-align:center; }

This audio pre-amp is great for audio distribution systems where sources may have different output levels. Adjust the pre-amp gain so your source is matched with the others before entering your distribution or zone amps!

Specifications

Input & Output Connectors Stereo RCA
Frequency Response 20Hz to 20kHz
Gain Control 0-15dB
Max. Input Level 9Vpp (@0dB),
1.5Vpp (@15dB)
Input Impedance 47 kΩ
Output Impedance 100 Ω
THD (Total Harmonic Distortion) <0.002 %
S/​N Ratio >85 dB
Power Source DC 12 Volts / 0.5A (included)
Dimensions 72 x 94 x 43mm (includes mounting ears)

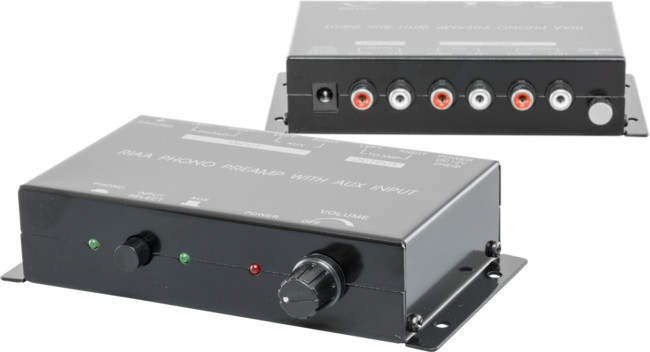

PRO1387 RIAA PHONO PREAMP WITH AUX

This Phono Preamplifier adds phono capability to any amplifier or receiver that has a spare AUX/​CD/​DVD Audio linelevel input. It can also be used to input a turntable directly into a mixer or computer soundcard. With its precise RIAA (Recording Industry Association of America) equalization, this preamp’s sound quality easily matches or exceeds that of the phono preamps found built into the highest quality stereo components. Its switch-selectable AUXenables easy selection for inputs, eliminating the need to connect and disconnect sources that share the input with this preamp.

Specifications:

Input Impedance 47K ohms
Output Impedance 100 ohms
Phono Amplitude Gain 40 dB (@1kHz)
AUX Amplitude Gain 6 dB
Maximum Input 50 mV pp
Output Level 5V pp
Frequency Response 20 Hz to 20k Hz
Signal to Noise Ratio 70dB
Power Source 12V DC (INCLUDED)
Size 145mm (L) * 96mm (W) * 31mm (H)
