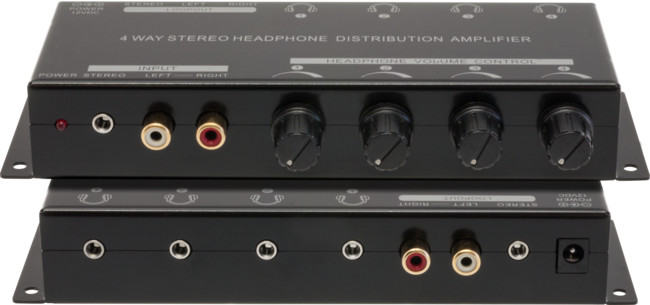

PRO1340 4-WAY HEADPHONE AMPLIFIER

Features

Perfect for headphone displays in stores or create your own Silent Cinema room at home! Connect up to four sets of headphones, each with individual volume controls.

  • Power On with LED indicator
  • Stereo 3.5mm and RCA connections (only one connection possible at a time)
  • Individual volume control for each headphone output
  • Loop-out via both Stereo 3.5mm and RCA output simultaneously
  • Used in music stores, studios, museums, education, home component systems and commercial sound systems.

Specifications

  • Connector Type: 3.5mm stereo
  • Output power: 105mW (rms) per channel
  • THD+N: 0.05 % (@ RL=16 ohm, f = 1 kHz)
  • Minimum Load Resistance: 16 ohm
  • Voltage: 12VDC / Center positive
  • Dimensions: 185 L x 86 W x 31 H mm
  • Weight: 350g

Downloads

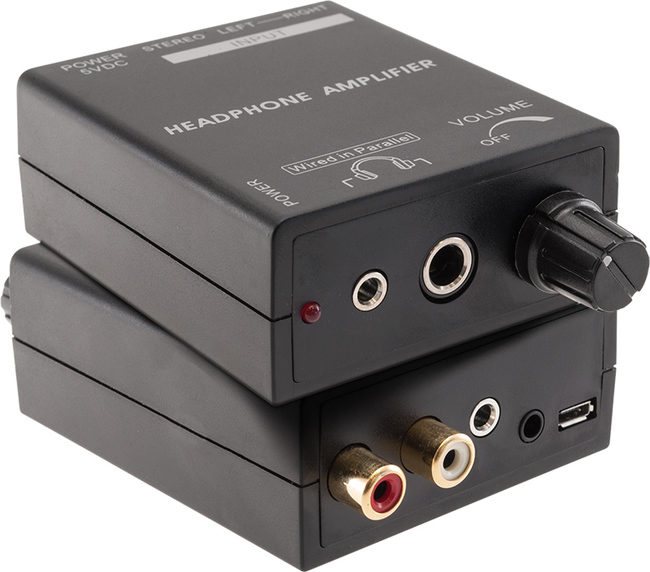

PRO1343 HEADPHONE AMPLIFIER

Features

If your headphones are always a lot quieter than you’d prefer, and cranking the volume is not an option, then perhaps the PRO1343 is perfect for you! The compact size and multiple input—and output—types means you can hook it up to your AV Receiver’s pre-out or your PC’s headphone socket. Many headphone outputs are simply not designed to power higher impedance, large driver headphones; the PRO1343 provides this extra power with lownoise!

  • Compact Design
  • Volume control with Power Switch
  • Power on LED indicator
  • Inputs (connect only one input at a time):
    • Stereo 3.5mm Jack
    • 2x RCA Sockets
  • Outputs (wired in parallel):
    • 3.5mm Stereo Jack
    • 6.3mm Stereo Jack

Specifications

  • THD+N: 0.05% (@16 ohm; 1kHz)
  • Minimum load: 16Ω
  • DC Input: 5VDC (centre positive) – SUPPLIED.
  • Dimensions: 97L x 64W x 30H mm

Downloads
