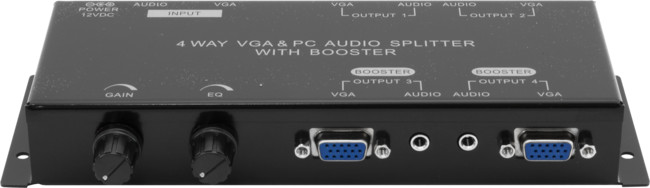

PRO1296 4 WAY VGA + PC AUDIO SPLITTER

Specifications

VGA

  • Video Bandwidth: >500MHz
  • Supported Resolutions: VGA, SVGA, XGA, SXGA, UXGA, QXGA, WUXGA, WQXGA
  • Supports the DDC, DDC2, DDC2B. (For VGA Output1)
  • Extended Distance: 60 Metres (VGA Output 1,2) / 100Metres (VGA Output 3,4)
  • Gain and EQ Adjustments. (For VGA Output 3,4)
  • Input/​Output Connector: HD-15 Female
  • Can be cascaded.

Audio

  • Operation Frequency: 50Hz~15KHz
  • Input Impedance: 47K ohms
  • Max. Audio Input: 5Vp-p
  • Extended Distance: 100 Metres
  • Input/​Output Connector: 3.5mm Mini-stereo Jack
  • Can be cascaded.

Power & Dimensions

  • Power Consumed: 100mA Max
  • Power Source: DC 12 Volts
  • Size (LxWxH): 205 mm x 93.5 mm x 31 mm
  • Net Weight (Unit only): 0.46 Kg

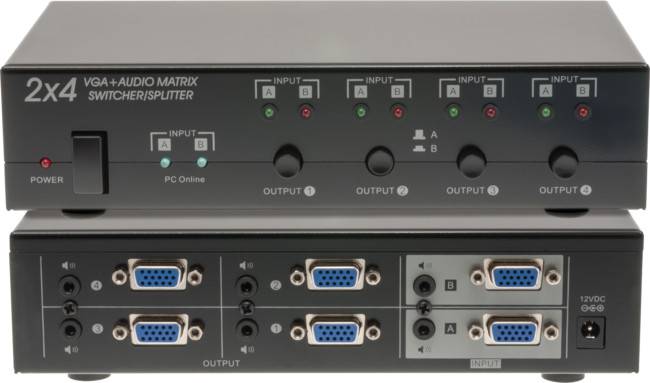

PRO1338 2X4 VGA + AUDIO MATRIX

Features

The PRO1338 VGA Matrix is perfect for larger installations where multiple displays or projectors are required. Each of the four outputs can independently displayeither of the two inputs. Perfect for classroom and demonstration rooms, conferences and houses of worship, and even restaurant or shop displays! Great for huge impact in large environments using up to 4x projectors or for small conference rooms where several small monitors can be used.

Bars, clubs and function spaces can benefit from the flexible distribution of independent video and audio sourcesdepending on the size of the function — small functions mayonly require one projector while the remaining three outputscan display advertisements or sports throughout the rest of the venue!

  • Allows two VGA source devices to provide video and audioto four displays / projectors.
  • Front panel selection buttons.
  • Each output can be set to input A or B
  • Blue LED Indicator for PC Online
  • Video and Audio can be cascaded

Specifications

  • VGA:
    • 300 MHz pixel frequency
    • Extended Distance: 65 metres
    • LED Indicator:
      • Source Online: Blue
      • Input A: Green
      • Input B: Red
    • Input/​Output Connector: HD-15 Female.
  • Audio:
    • Operation Frequency: 20Hz~20kHz
    • Input Impedance: 47kΩ
    • Max. Audio Input: 4Vp-p
    • Extended Distance: 100 metres
    • Input/​Output Connector: 3.5mm Mini-stereo Jack
  • Power:
    • Power Source: 12 VDC / 1.2A

Downloads

pdf; 1.2MB PRO1338 Sell Sheet

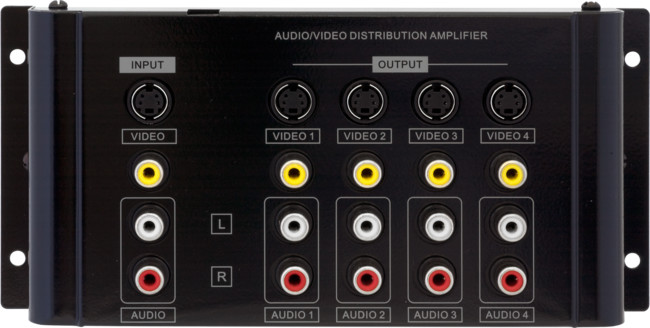

PRO1047 4 WAY AV DISTRIBUTION AMP

4-way Audio Video Distribution Amplifier

This audio video distribution amplifier lets you split video and stereo audio output signlas from a DVD, VCR, or other video sources without any signal loss. You can send video and stereo audio signals to as many as four other TVs or VCRs. You can also maintain picture quality when driving up to four TV monitors from a computer equipped with seperate audio and video output (composite) jacks. Or you could make up to four copies of your favourite camcorder tapes simultaneously.

  • 1x input:
    • 1x S-Video
    • 1x composite video (1x RCA connection)
    • 2x stereo audio (2x RCA connections)
  • 4x output
    • 4x S-Video
    • 4x composite video (1x RCA connection)
    • 8x stereo audio (2x RCA connections)
  • High quality metal finish
  • 12 V DC @ 500mA power input (power supply included)
  • Mounting screws included
  • 190 (W) x 25 (H) x 90 (D) mm

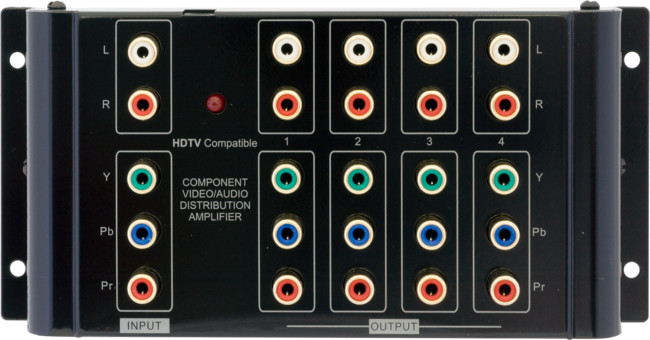

PRO1122A 4-WAY COMPONENT DISTRIBUTOR (Discontinued)

4-way Component + Stereo Audio Distribution Amplifier

Distribute component video and stereo audio signals up to four different locations.

  • 1x input:
    • 1x YPbPr / YCbCr (3x RCA connections)
    • 2x stereo audio (2x RCA connections)
  • 4x output
    • 4x YPbPr / YCbCr (12x RCA connections)
    • 8x stereo audio (2x RCA connections)
  • HDTV compatible
  • LED indicator
  • High quality metal finish
  • Gold plated connections
  • 12 V DC @ 500mA power input (power supply included)
  • Mounting screws included
  • 190 (W) x 32.5 (H) x 94.3 (D) mm
  • Weight: 452 g

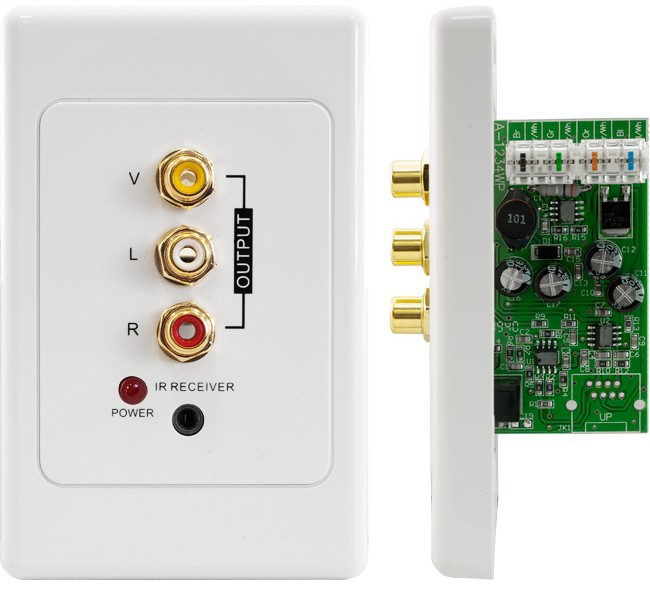

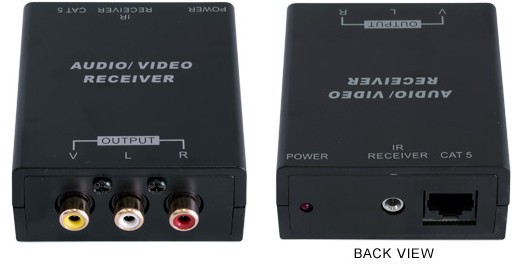

PRO1235DSWP WALL PLATE RECEIVER FOR

PRO1235DSWP PLATE RECEIVER FOR PRO1235D

Spare receiver for PRO1235D in wall plate type, it includes the IR target in the box.

Features:

  • Allows you to add more zones to your existing CAT5 AV distribution set up
  • Receives composite video and stereo audio signals fromthe PRO1235D distribution hub
  • Transmits IR signals to remotely control AV devices
  • Power LED
    Receives power via CAT5 connection with hub

Connections:

  • Composite video input (1x RCA)
  • Stereo audio (L / R) output (2x RCA)
  • 1x IR receiver input (3.5mm jack)

Contents:

  • PRO1235DSWP
  • Dual band IR receiver

Related Products

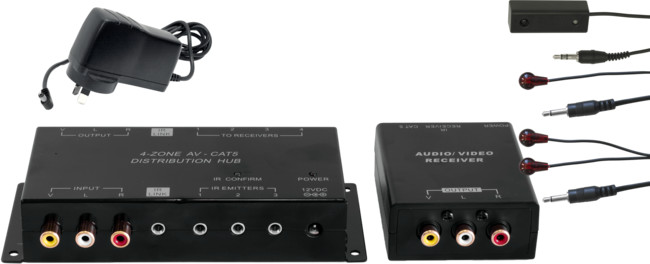

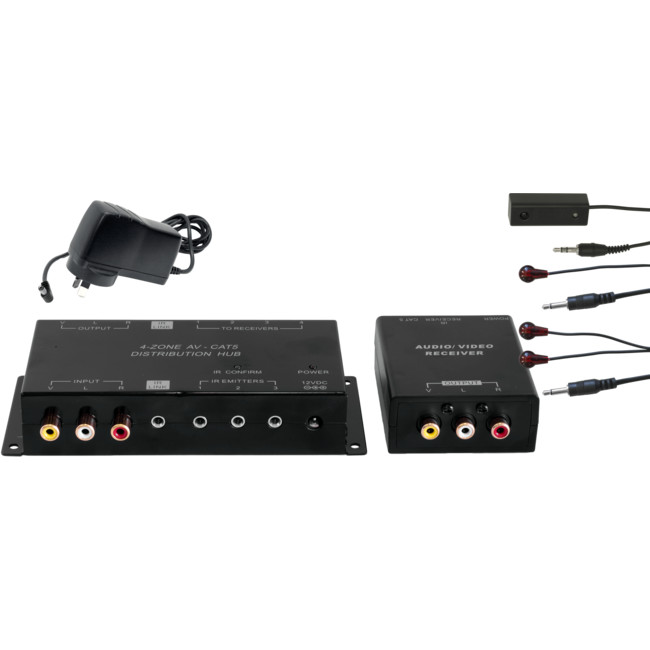

PRO1235D AV DISTRIBUTION OVER CAT5

but The IR Emitter has to be plugged in IR Link Socket (not from socket 1,2,3)

Distribute composite video and stereo audio plus IR signals using economical CAT5 cable. The PRO1235D is a readyto go kit including a receiver. The system can be expanded up to 4 zones with additional PRO1235DS spare receivers, also available separately.

Please note: For Foxtel IQ2 compatibility, please ensure you use the IR LINK socket for the IR emitters.

Specifications:

  • Designed to be surface mounted for in-wall composite video, and stereo audio with IR control applications
  • Transmission distance:
    • Audio: 300 meters
    • Video: 300 meters
  • Interface:
    • 3.5mm mini socket (for emitters)
    • 3x RCA connectors (for audio/​video)
    • 4x RJ45 (for CAT5)
  • PRO1235D back

  • Dimension: 157 mm x 65mm x 29mm
  • Power supply: 12VDC, 200mA
  • Loop-out function

Kit includes:

  • PRO1235 AV + IR distribution hub
  • PRO1235DS Spare AV + IR receiver
  • Single IR emitter
  • Dual IR emitter
  • IR receiver stick
  • 12V 1.2A switchmode power supply

Related Products

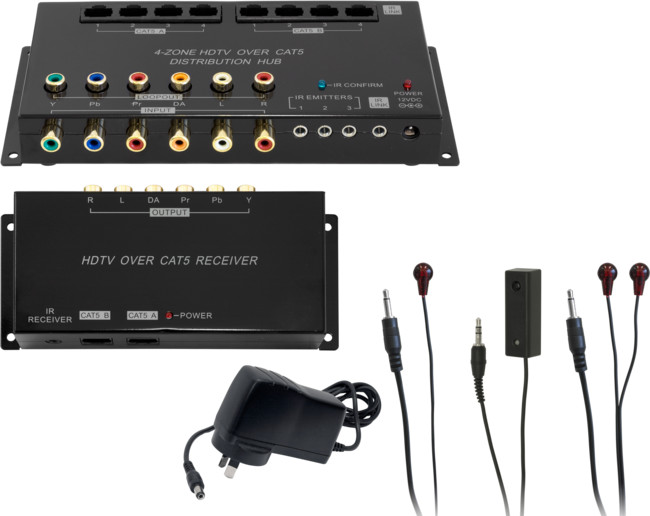

PRO1247D 4 ZONE HDTV + IR OVER CAT5

Features


*See “Tips” for more information

The PRO1247D allows you to extend component video, coaxial digital audio, stereo audio and IR signals to 4 different zones (expandable up to 8 with loop out function) using economical CAT5e cable.

Your source AV device (beg. DVD player) connects to the distribution hub and a 2 CAT5e cable connection is made to the receiver which is connected to your display device (beg.TV).

Features:

  • Four zone Audio / Video + IR distribution
  • Loop out function
  • Send HD video and audio signals up to 120 metres
  • Transmit IR signals to remotely control AV devices
  • IR confirmation and power LED
  • Supports 480p / 1080i
  • Both distribution hub and receiver can be wall mounted (screws included)

Specifications

Connections:

  • Distribution hub:
    • 8x RJ45 ports
    • YPbPr video input (3x RCA)
    • Coaxial digital audio (DA) input (1x RCA)
    • Stereo audio (L / R) input (2x RCA)
    • 3x IR emitter input (3.5mm jack)
    • 2x IR link connector (3.5mm jack)
  • Receiver:
    • 2x RJ45 ports
    • YPbPr video output (3x RCA)
    • Coaxial digital audio (DA) output (1x RCA)
    • Stereo audio (L / R) output (2x RCA)
    • 1x IR receiver input (3.5mm jack)

Specifications:

  • Video nominal input level: 1 Volt (peak to peak)
  • Video input impedance:
    • Distribution hub: 75 ohm
  • Video output impedance:
    • AV CAT5 receiver: 75 ohm
  • Audio input impedance:
    • Distribution hub: 47k ohm
  • Audio output impedance:
    • AV CAT5 receiver: 300 ohm
  • Power: 12V DC 1.2A switching power
  • Weight:
    • Distribution hub: 460gr
    • Receiver: 310gr
  • Dimensions:
    • Distribution hub: 195 (W) x 87 (D) x 27 (H) mm
    • Receiver: 158 (W) x 67 (D) x 31 (H) mm

Kit Contents

Kit includes:

  • Distribution hub
  • Receiver
  • Dual band IR receiver
  • Single IR emitter
  • Dual IR emitter
  • 12V DC 1.2A switch-mode power supply
  • 8x screws for mounting
  • Instructions

Installation & Tips

Tips

Getting Foxtel iQ2 to work with the PRO1247D:
Although undocumented, several of our customers have had success controlling their Foxtel iQ2 boxes via the IR extender function of the PRO1247D by connecting their IR Emitter to the IR LINK port rather than the emitter output port.

Installation diagram

PRO1247DSdiagram

Related Products

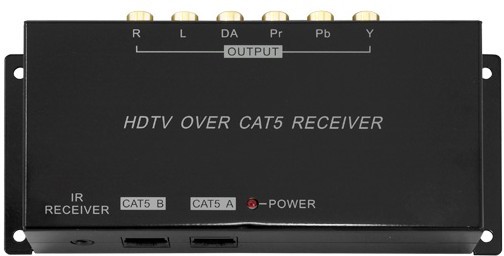

PRO1247DS SPARE HDTV DISTRIBUTION RECEVR

HDTV OVER CAT5 RECEIVER

To suit the PRO1247D HDTV over CAT5 distribution hub

Features:

  • The PRO1247DS allows you to add more zones to your existing HDTV over CAT5 AV distribution set up
  • Receives HD video and audio signals from the PRO1247D distribution hub from up to 120 metres
  • Transmits IR signals to remotely control AV devices
  • Power LED
    Receives power via CAT5 connection with hub
  • Supports 480p / 1080i
  • Can be wall mounted (screws included)

Connections:

  • 2x RJ45 ports
  • YPbPr video output (3x RCA)
  • Coaxial digital audio (DA) output (1x RCA)
  • Stereo audio (L / R) output (2x RCA)
  • 1x IR receiver input (3.5mm jack)

Specifications:

  • Video nominal input level: 1 Volt (peak to peak)
  • Video output impedance: 75 ohm
  • Audio output impedance: 300 ohm
  • Power: 12V DC 1.2A switching power
  • Weight: 310gr
  • Dimensions: 158 (W) x 67 (D) x 31 (H) mm

Contents:

  • HDTV over CAT5 receiver
  • 4x screws for mounting
  • Instructions

Related Products

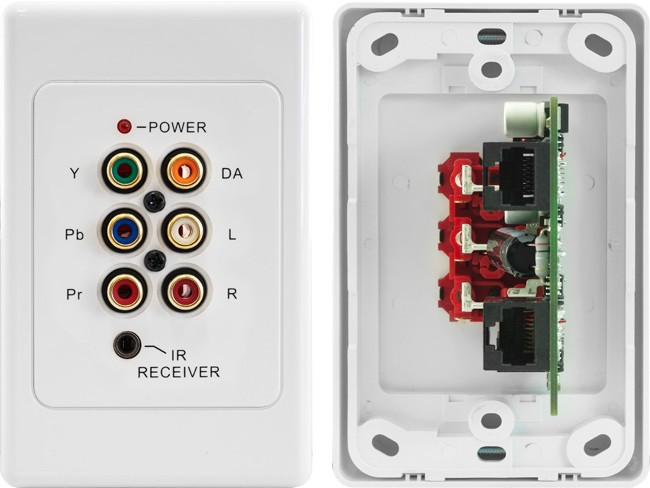

PRO1247DSWP WALL PLATE RECEIVER FOR

PRO1247DSWP PLATE RECEIVER FOR PRO1247D

Spare receiver for PRO1247D in wall plate type, it includes the IR target in the box.

Features:

  • Allows you to add more zones to your existing HDTV over CAT5 AV distribution set up
  • Receives HD video and audio signals from the PRO1247D distribution hub from up to 120 metres
  • Transmits IR signals to remotely control AV devices
  • Power LED
    Receives power via CAT5 connection with hub
  • Supports 480p / 1080i

Connections:

  • 2x RJ45 ports (back of the wall plate)
  • YPbPr video output (3x RCA)
  • Coaxial digital audio (DA) output (1x RCA)
  • Stereo audio (L / R) output (2x RCA)
  • 1x IR receiver input (3.5mm jack)

Specifications:

  • Video nominal input level: 1 Volt (peak to peak)
  • Video output impedance: 75 ohm
  • Audio output impedance: 300 ohm

Contents:

  • HDTV over CAT5 receiver
  • Dual band IR receiver

Related Products

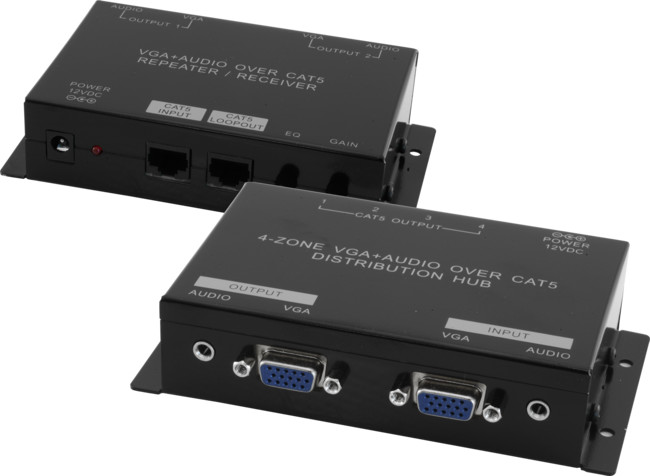

PRO1270 VGA & AUDIO OVER CAT5 BALUN &

PRO1270 VGA+AUDIO OVER CAT5 DISTRIBUTION HUB

Features:

  • Distribute your VGA+Audio signal via single UTP CAT5/​5e to up to 4 zones (8 outputs), each receiver has 2 outputs
  • Transmission Distance up to 1000ft / 300m via UTP CAT5/​5e
  • With the loopout function on the receiver, it can be set up more than 4 zones.
  • 350 MHz signal transmission bandwidth
  • Provides 4 ports RJ45 outputs for transmission
  • With local VGA & audio outputs
  • 12VDC switching mode power supply included
  • 1x VGA + 1x 3.5mm stereo audio input
  • 1x VGA + 1x 3.5mm stereo audio output
  • 4x CAT5 outputs
  • Distance via CAT5 Cable:
    640*480 pixels (VGA) —300M
    800*600 pixels (SVGA) —200M
    1024*768 pixels (XGA) —180M
    1280*1024 pixels (SXGA) —120M
    1600*1200 pixels (UXGA) —100M

Related Products

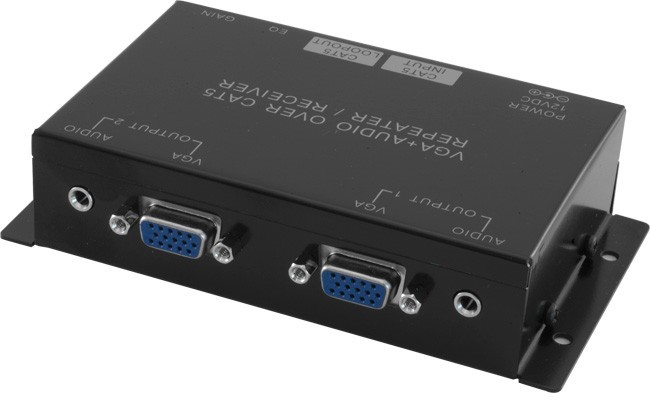

PRO1270S SPARE VGA+AUDIO DISTRIBUTION

PRO1270S RECEIVER FOR PRO1270 WITH LOOPOUT FUNCTION

Features:

  • Spare receiver for PRO1270
  • Transmission Distance up to 1000ft / 300m via single UTP CAT5/​5e
  • CAT5 loopout function
  • Support 2X VGA+Audio Distribution Amplifier
  • EQ (Sharpness) and GAIN (Brightness) control are Adjustable
  • Provides Chainable Function up to 3 Units
  • 12VDC switching mode power supply included
  • 1x CAT5 input, 2x VGA+2×3.5mm stereo audio outputs
  • Distance via CAT5 Cable:
    640*480 pixels (VGA) —300M
    800*600 pixels (SVGA) —200M
    1024*768 pixels (XGA) —180M
    1280*1024 pixels (SXGA) —120M
    1600*1200 pixels (UXGA) —100M
