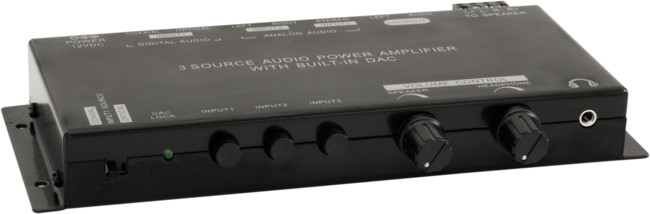

PRO1299 3-SOURCE AMP WITH BUILT IN DAC

3-Source Audio Power Amplifier With Built-in DAC
SPECIFICATIONS Speaker Audio Power Amplifier
  • Amplifier Type:Stereo D-Class
  • Output power:15W (rms) per channel for 4ohm load, 15W (rms) for both channels for 8ohm load
  • THD+N: 0.06 % (@ RL=8 ohm, f = 1 kHz)
  • Minimum Load Resistance: 4 ohm
  • Includes Speaker Protection circuit.
Earphone Audio Power Amplifier
  • Output power:105mW (rms) per channel
  • THD+N: 0.05 % (@ RL=16 ohm, f = 1 kHz)
  • Minimum Load Resistance: 16 ohm
Digital To Analog Converter (DAC)
  • Digital Input Type: Coaxial & Optical
  • Support Digital Audio Format: LPCM
  • Input Impedance: 75 ohms
  • Frequency Response: 32 – 192KHz sample rate

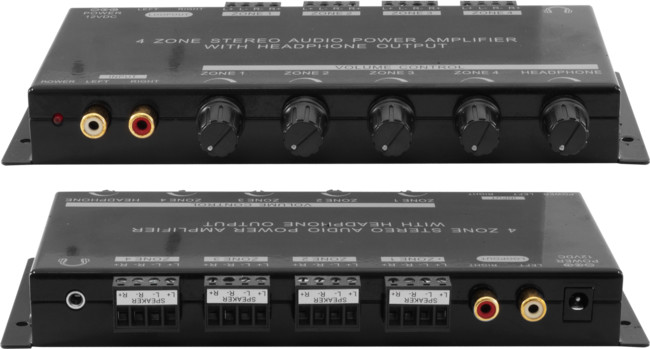

PRO1300 4 ZONE STEREO POWER AMPLIFIER

4 Zone Stereo Audio Power Amplifier With Headphone Output

SPECIFICATIONS

Speaker Audio Power Amplifier (x4)

  • Amplifier Type:Stereo D-Class
  • Output power:15W (RMS) per channel
  • THD+N: 0.06 % (@ RL=8 ohm, f = 1 kHz)
  • Minimum Load Resistance: 4Ω
  • Includes Speaker Protection circuit.
Earphone Audio Power Amplifier
  • Output power:105mW (RMS) per channel
  • THD+N: 0.05 % (@ RL=16 ohm, f = 1 kHz)
  • Minimum Load Resistance: 16Ω
Power & Dimensions
  • Power Consumed: 9A Max
  • Power Source: DC 12 Volts (POWER SUPPLY INCLUDED)
  • Size (LxWxH): 205 mm x 108 mm x 26 mm
  • Net Weight (Unit only): 0.48 Kg

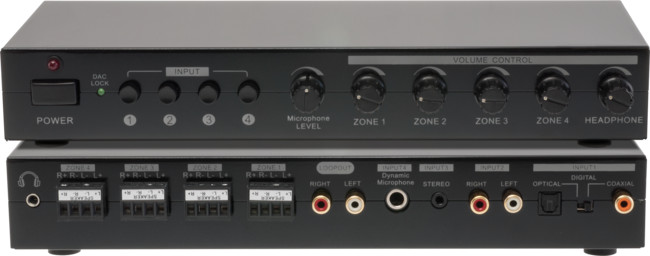

PRO1323 4-ZONE AUDIO POWER AMPLIFIER

Features

With a diverse range of inputs, including digital (optical or coaxial) and dynamic microphone inputs, and the ability to adjust each zone’s volume independently, the PRO1323 is a quick and easy way of adding audio in up to four rooms. It also features a Loop-out for expanding to another unit, increasing the number of zones further!

  • Four-in and five-out
    • IN: 1x Digital (Optical / Coaxial selectable), 1x RCA Stereo, 1x 3.5mm Stereo, 1x Dynamic Microphone input
    • OUT: 4 Speaker output + 1 Headphone output
  • Built-In audio digital to analogue converter (DAC)
    • Audio DAC Lock indicator
  • Independent microphone level control
  • Individual speaker volume control
  • Provides line loop-out for expanding to more zones
  • Large detachable terminal block (supplied) for quick andeasy installation
    • Screw terminals handle wire sizes from 24 to 12 gauge

Specifications

Speaker Audio Power Amplifier (x4):

  • Amplifier Type: Stereo Class-D
  • Output power: 15W (RMS) per channel (@ RL=4 ohm)
  • THD+N: 0.06 % (@ RL=8 ohm, f = 1 kHz)
  • Minimum Load Resistance: 4 ohm
  • Includes Speaker Protection circuit.

Earphone Audio Power Amplifier:

  • Output power:105mW (RMS) per channel
  • THD+N: 0.05 % (@ RL=16 ohm, f = 1 kHz)
  • Minimum Load Resistance: 16 ohm

Power & Dimensions:

  • Power Consumed: 9A Max
  • Power Source: DC 12 Volts
  • Size (LxWxH): 285mm x 128mm x 43mm
  • Net Weight (Unit only): 0.8 Kg

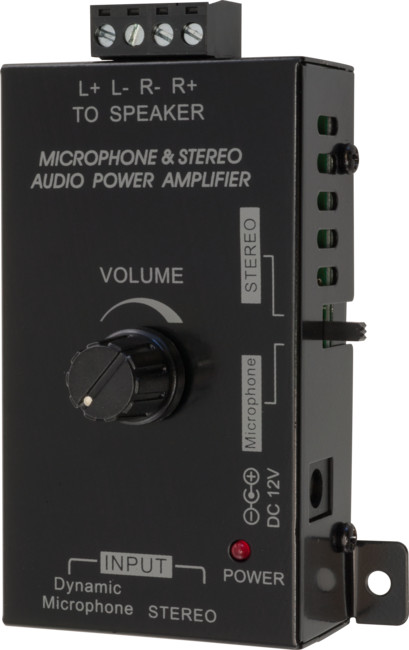

PRO1328 STEREO AUDIO POWER AMPLIFIER

Features

Use the PRO1328 to power in-ceiling speakers with the audio output from any source device such as computers, DVD players, TVs and even Microphones. Alternatively the PRO1328is perfect for shop display installations, where basic audioamplification and compact size is required.

If your Flat Screen TV’s built-in speaker output is belowpar, the PRO1328 can provide an elegant solution to add you own passive speakers for clearer and more powerful listening!

With the abilty to switch from line-level to dynamic microphone input, the PRO1328 can be used to give your shop displays and demonstrations more reach!

Ideal for use with:

  • Computers
  • DVD players
  • TV’s
  • Microphones
  • Small size and compact
  • Also suitable for wall-mounting
  • Works with 4Ω, 6Ω and 8Ω speakers
  • To speaker screw terminals handle wire sizes from 24 to 12 gauge

Specifications

  • Inputs: Dynamic microphone or stereo audio line level
  • Microphone pre-Amplifier gain: 40dB
  • Power Amplifier Type: Stereo Class-D
  • Output power: 15W (rms) per channel (@ RL=4 ohm)
  • THD+N: 0.06 % (@ RL=8 ohm, f = 1 kHz)
  • Minimum Load Resistance: 4Ω
  • Includes Speaker Protection circuit.
  • Power Source: 12 VDC / 2A (included)
  • Size (LxWxH): 92.6mm x 73.4 mm x 26.6mm
  • Net Weight (Unit only): 160 g

Downloads

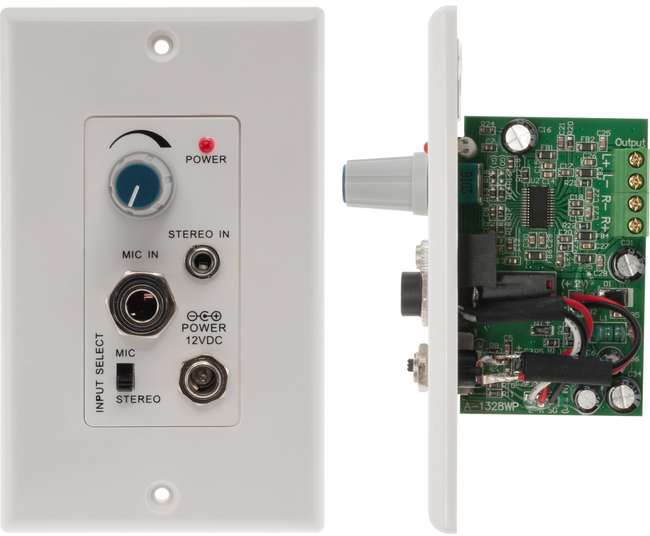

PRO1328WP AUDIO AMPLIFIER WALL PLATE

Features

Use the PRO1328WP to power in-ceiling speakers with the audio output from any source device such as computers, DVD players, TVs and even Microphones. Alternatively the PRO1328WP is perfect for shop display installations, where basic audio amplification and compact size is required.

With the ability to switch from line-level to dynamic microphone input, the PRO1328WP can be used to give your shop displays and demonstrations more reach!

The unique Decora-style wallplate design ensures a professional and clean installation without the need to loose or extra ‘boxes’ lying around! Great for indoor/​outdoor speaker systems where simple and discrete convenience is paramount.

Ideal for use with:

  • DVD players
  • TV’s
  • Indoor/​Outdoor Speakers
  • In-ceiling/​in-wall Speakers
  • Switch between 3.5mm (line) or microphone inputs
  • Discrete and compact Decora-style wall-plate design
  • Suitable for 4Ω, 6Ω and 8Ω speakers
  • Speaker screw terminals handle wire sizes from 24 to 12 gauge

Specifications

  • Inputs: Dynamic microphone or stereo audio line level
  • Microphone pre-Amplifier gain: 40dB
  • Power Amplifier Type: Stereo Class-D
  • Output power: 15W (rms) per channel (@ RL=4 Ω)
  • THD+N: 0.06 % (@ RL=8 Ω, f = 1 kHz)
  • Minimum Load Resistance: 4Ω
  • Includes Speaker Protection circuit
  • Power Source: 12 VDC / 2A (included)
  • Size (LxWxH): 92.6mm x 73.4 mm x 26.6mm
  • Net Weight (Unit only): 160 g

Downloads

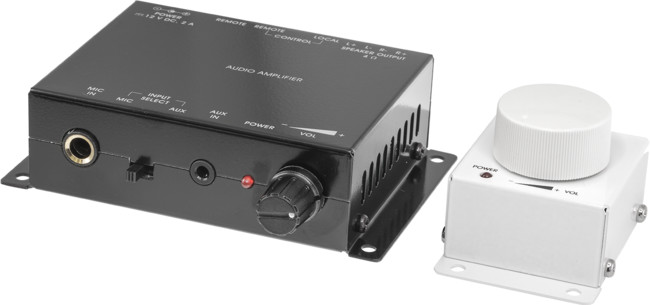

PRO1328K MIC AND STEREO POWER AMPLIFIER

This unit is an excellent way to add an additional zone to an existing system. Compact 15w RMS stereo amplifier withselectable 3.5mm stereo or microphone inputs. Remote wired volume control.

Features

  • 15 Watts per channel
  • Speaker volume control
  • Class D power amplifier
  • Speaker protection circuit
  • Large detachable terminal block (supplied) for quick andeasy installation.
  • Screw terminals handle wire sizes from 24 to 12 gauge.

Connections

  1. Input: 3.5mm stereo
  2. Input 6.5mm stereo – dynamic microphone
  3. Speaker outputs: for 1 speaker pair (via screw terminals)

Specifications

  • Inputs: Dynamic microphone or setreo audio line level
  • Mircophone pre-Amplifier gain: 40dB
  • Speaker Audio Power Amplifier:
  • Power Amplifier Type:Stereo Class-D
  • Output power:15W (rms) per channel (@ RL=4 ohm)
  • THD+N: 0.06 % (@ RL=8 ohm, f= 1 kHz)
  • Minimum Load Resistance: 4 ohm
  • Includes Speaker Protection circuit

Power & Dimensions:

  • Power Consumed: 2A Max
  • Power Source: DC 12 Volts 2A (included)
  • Size (LxWxH): 115mm x 98 mm x 31mm

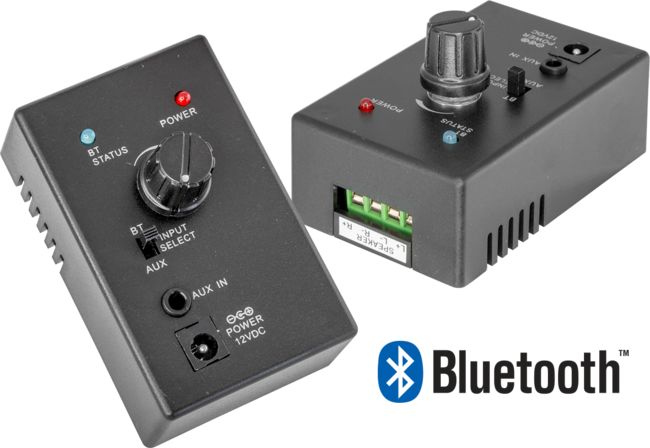

PRO1351 BLUETOOTH AUDIO POWER AMP

Features

Use the PRO1351 to power in-ceiling speakers with the audio from any Bluetooth enabled device, or other source device such as computers, DVD players, and TVs! Perfect for permanent audio installations in entertaining areas, and even bedrooms

Ideal for installing where volume control is not intendedto be adjusted by end-users!

Ideal for use with:

  • Mobile devices with Bluetooth audio
  • DVD players
  • TV’s
  • Indoor/​Outdoor Speakers
  • In-ceiling/​in-wall Speakers
  • Bluetooth wireles audio receiver built-in
  • Switch between Bluetooth or 3.5mm (line) inputs
  • Compact design
  • Volume control
  • Suitable for 4Ω, 6Ω and 8Ω speakers
  • Includes Speaker Protection circuit

Specifications

.rpg_table { border-collapse: collapse; margin: 15px; } .rpg_table th, .rpg_table td { padding: 5px; line-height:30px; } .rpg_table td, .rpg_table th { text-align: left; vertical-align: top; border-top: solid 1px #cccccc; border-bottom: solid 1px #cccccc; } .rpg_table th, .rpg_table .header { font-weight: bold; text-align: left } .rpg_table th[align=center], .rpg_table td[align=center] { text-align:center !important; } .rpg_table .spacer { border: 0 !important; width:15px !important; } .rpg_table .no-wrap { white-space: nowrap !important; }
Audio Inputs Bluetooth Receiver or stereo audio line level
Bluetooth Receive Distance 10 Metres
Bluetooth Version 3.0 EDR compliant
Power Amplifier Type Stereo Class-D
Output power 15W (rms) per channel (@ RL=4 ohm)
THD+N 0.06 % (@ RL=8 ohm, f = 1 kHz)
Minimum Load Resistance 4 Ohm
Power Source 12 VDC/​2A (Power supply included)

Downloads

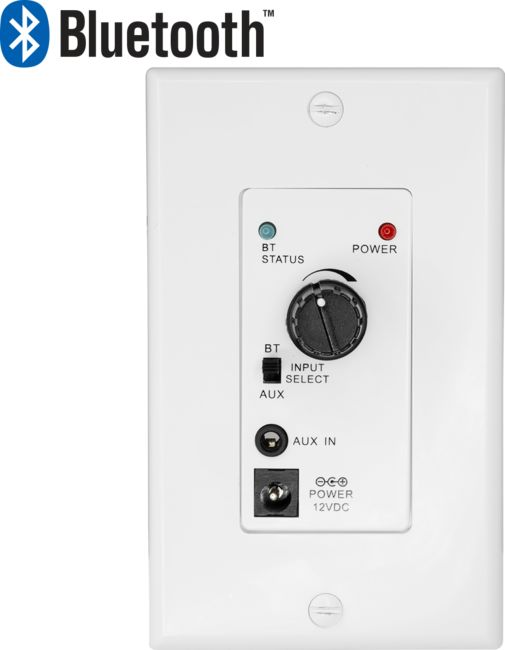

PRO1351WP BLUETOOTH WALL PLATE AMP

Features

Use the PRO1351WP to power in-ceiling speakers with the audio from any Bluetooth enabled device, or other source device such as computers, DVD players, and TVs! Creates a neat, clean solution for permanent audio installations that makes it perfect for entertaining areas, and even bedrooms

Perfect for upgrading existing wallplate amp modules withits rear/​in-wall power and audio connections! Add Bluetooth to your existing multi-room local input amp.

The unique Decora-style wallplate design ensures a professional and clean installation without the need to loose or extra ‘boxes’ lying around! Great for indoor/​outdoor speaker systems where simple and discrete convenience is paramount.

Ideal for use with:

  • Mobile devices with Bluetooth audio
  • DVD players
  • TV’s
  • Indoor/​Outdoor Speakers
  • In-ceiling/​in-wall Speakers
  • Bluetooth wireles audio receiver built-in
  • Switch between Bluetooth or 3.5mm (line) inputs
  • Discrete and compact Decora-style wall-plate design
  • Volume control
  • Suitable for 4Ω, 6Ω and 8Ω speakers
  • Speaker screw terminals handle wire sizes from 24 to 12 gauge
  • Rear and front Power and Audio input connections for neat installation
  • Includes Speaker Protection circuit

Specifications

.rpg_table { border-collapse: collapse; margin: 15px; } .rpg_table th, .rpg_table td { padding: 5px; line-height:30px; } .rpg_table td, .rpg_table th { text-align: left; vertical-align: top; border-top: solid 1px #cccccc; border-bottom: solid 1px #cccccc; } .rpg_table th, .rpg_table .header { font-weight: bold; text-align: left } .rpg_table th[align=center], .rpg_table td[align=center] { text-align:center !important; } .rpg_table .spacer { border: 0 !important; width:15px !important; } .rpg_table .no-wrap { white-space: nowrap !important; }
Audio Inputs Bluetooth Receiver or stereo audio line level
Bluetooth Receive Distance 10 Metres
Bluetooth Version 3.0 EDR compliant
Power Amplifier Type Stereo Class-D
Output power 15W (rms) per channel (@ RL=4 ohm)
THD+N 0.06 % (@ RL=8 ohm, f = 1 kHz)
Minimum Load Resistance 4 Ohm
Power Source 12 VDC/​2A (INCLUDED)

Downloads

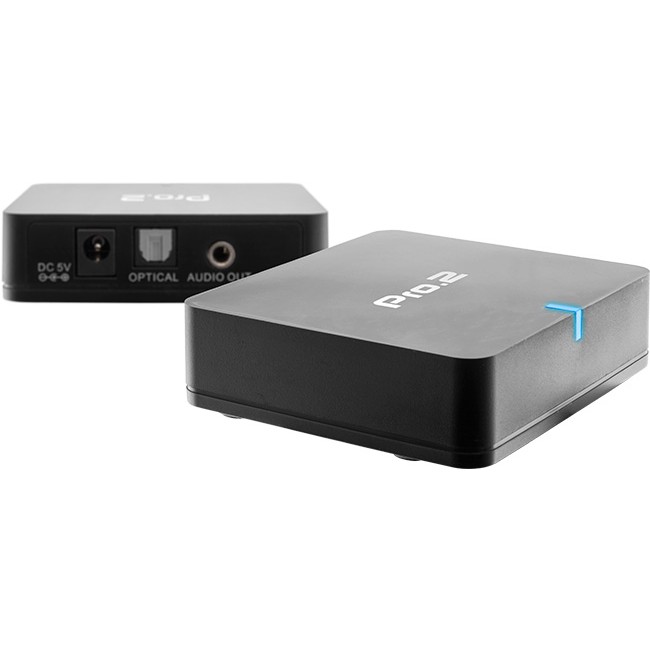

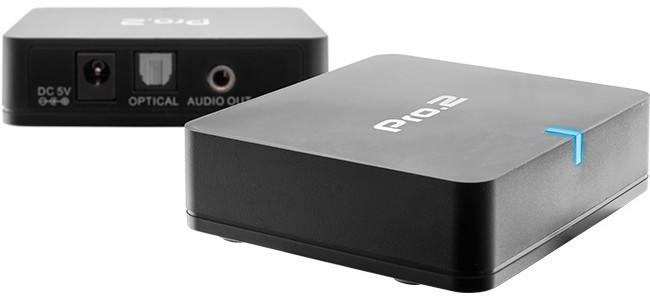

BMR3X BLUETOOTH MUSIC RECEIVER

Features

Lose the wires without compromising audio quality or having to upgrade your audio system!

Simply pair your Bluetooth enabled device–such as your smart phone, iPad, Android tablet–and connect theBMR3X to your AV receiver, multimedia speakers and more. With our inclusion of the highly renowned Apt-X codec, the BMR3X allows you to enjoy wireless Bluetooth audio quality indistinguishable from wired, with an impressive dynamic range. Apart from Apt-X, the BMR3X features a high-quality DAC that helps clean up poor audio that is often found in downloaded music and videos.

The BMR3X outputs audio though both analogue and digital outputs simultaneously! Notonly does this make it great for hooking up to your high-endamplifier or receiver using the high quality digital link, but you can also plug in another pair of powered speakers atthe same time! This allows you to listen through either system without the need to connect to another Bluetooth device!

A Signal-to-Noise Ratio (SNR) of more than 100dB, in combination with 2Vrms output at maximum volume means the BMR3X can not only compensate for low volume sources, but gives you a wider range of control from your mobile device without losing audio quality or increased background hiss you get from other devices on the market! Basically keep the volume on your amp or speakers low for reduced noise, and control the audio level directly from your phone or tablet—perfect for audiophiles!

  • Apt-X codec
    for exceptionally high CD quality wireless performance
  • Dual simultaneous output
    • S/​PDIF Optical output: For pure digital audio connection, ideal for connecting to AV Receivers
    • 3.5mm stereo output: For connection to any speakersystem, media player and more with a standard AUX input
  • Auto-Pairing
    Once the BMR3X establishes a blueooth connection with a device, it will remember and auto-connect when that device is in range
  • Multi-Device Support
    The BMR3X will remember and connect up to 8 devices
  • Half the latency of other Bluetooth Receivers
    • only 70ms instead of the 180ms of other devices onthe market!
  • Low SNR: >100dB
  • Plenty of headroom for volume levels!
    • High level output: 2Vrms

Benefits Of Apt-X

  • Audio bandwidth matching CD performance (16-bit, 44.1kHz)
  • Low audio coding delay. Minimizes latency and ‘lip-sync’ issues
  • Non destructive transcoding– no dueling effectswith other algorithms
  • Backward Compatibility:
    when apt-X is not available target device will pair downto SBC
  • Compression ratio of 4:1 and data rates up to 352kbps

Please note: Your source device must also have the apt-X codec. Please check your device user manual and specifications to be sure. If your device does not have apt-X, the BMR3X will still work, utilising the SBCcodec.


Some devices that have apt-X support include:

  • HTC One S
  • HTC One V
  • HTC One X
  • Motorola Droid Razr
  • Samsung Galaxy S III (S3)
  • Samsung Galaxy Tab 7.0 Plus
  • Samsung Galaxy Tab 7.7
  • Samsung Galaxy Note 10.1
  • Apple Mac Mini (latest gen)
  • Apple Mac book Air (latest gen)
  • Apple Mac book Pro (latest gen) and more…

Specifications

Bluetooth version 3.0 EDR
Bluetooth profile A2DP / IOPT
Codecs apt-X®, SBC
Devices memory 8
Transmission range 10 m
Frequency 2402 ~ 2480 MHz
Sensitivity -84 dBm
Spurious output level -156 dBm / Hz
Connections
5V / 0.6A DC
Optical / Toslink out
3.5mm stereo out
Analogue Audio (R/​L)
Audio Output Level (nominal) 2 ±10% Vrms
Frequency response 20 Hz ~ 20 KHz
Channel Separation -45 dB
SNR (nominal, Audio RL) >= 100 dB
THD (nominal, Audio RL) 0.05 %
Toslink
Wave length (nominal) 640 ~ 670 nm
Light output (nominal) -17 dBm
Dimensions: 20 (H) x 75 (W) x 69 (D) mm

Contents

  • BMR3X receiver
  • 3.5mm plug to plug stereo lead
  • 3.5mm socket to 2x RCA stereo lead
  • 5V 0.6A DC power supply
  • User manual
