HD01 HDMI TO DVI CONVERTER

HD01 HDMI TO DVI CONVERTER
Code: 64550045

Additional Images

64550045

Discontinued

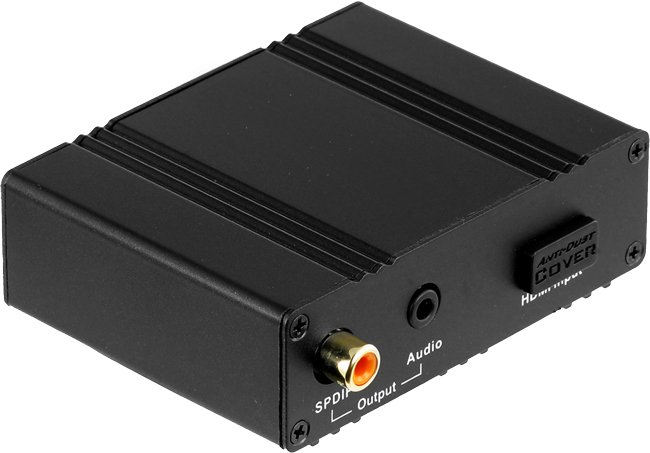

HD01 is a HDMI to DVI converter. It converts HDMI into DVI and R/L audio or SPDIF digital audio. It achieves long-distance transmission of HDMI signal of more than 15 meters.

HD01 offers solutions for digital entertainment centers, HDTV retail and show sites, conference room presentations, school and corporate training environments and many more.

Operating Temperature Range -5 to +35°C (-41 to +95 °F)
Operating Humidity Range 5 to 90 % RH (no condensation)
Input Video Signal 0.5-1.0 volts p-p
Input DDC Signal 5 volts p-p (TTL)
Vertical Frequency Range 60Hz
Maximum Single Link Range 1280 x 1024, 1080P
Output Video HDMI+HDCP1.0/1.1
Power Supply 5VDC
Power Consumption 3.75wtts (Max)
Dimensions 67mmW×88mmH×28mmD/2.6”W×3.5”H×1.1’D
Mass (Main Unit) 680gs/1.5lb

Package Contents

  1. Main unit.HDMI-DVI converter
  2. 5V DC power adapter.
  3. Operating instructions.

*The input and output resolution must be on the same settings, this device does not upscale or downscale.

Downloads

HD01 Manual (438kb)

Pro.2 HDMI Converters sell sheet (pdf)
